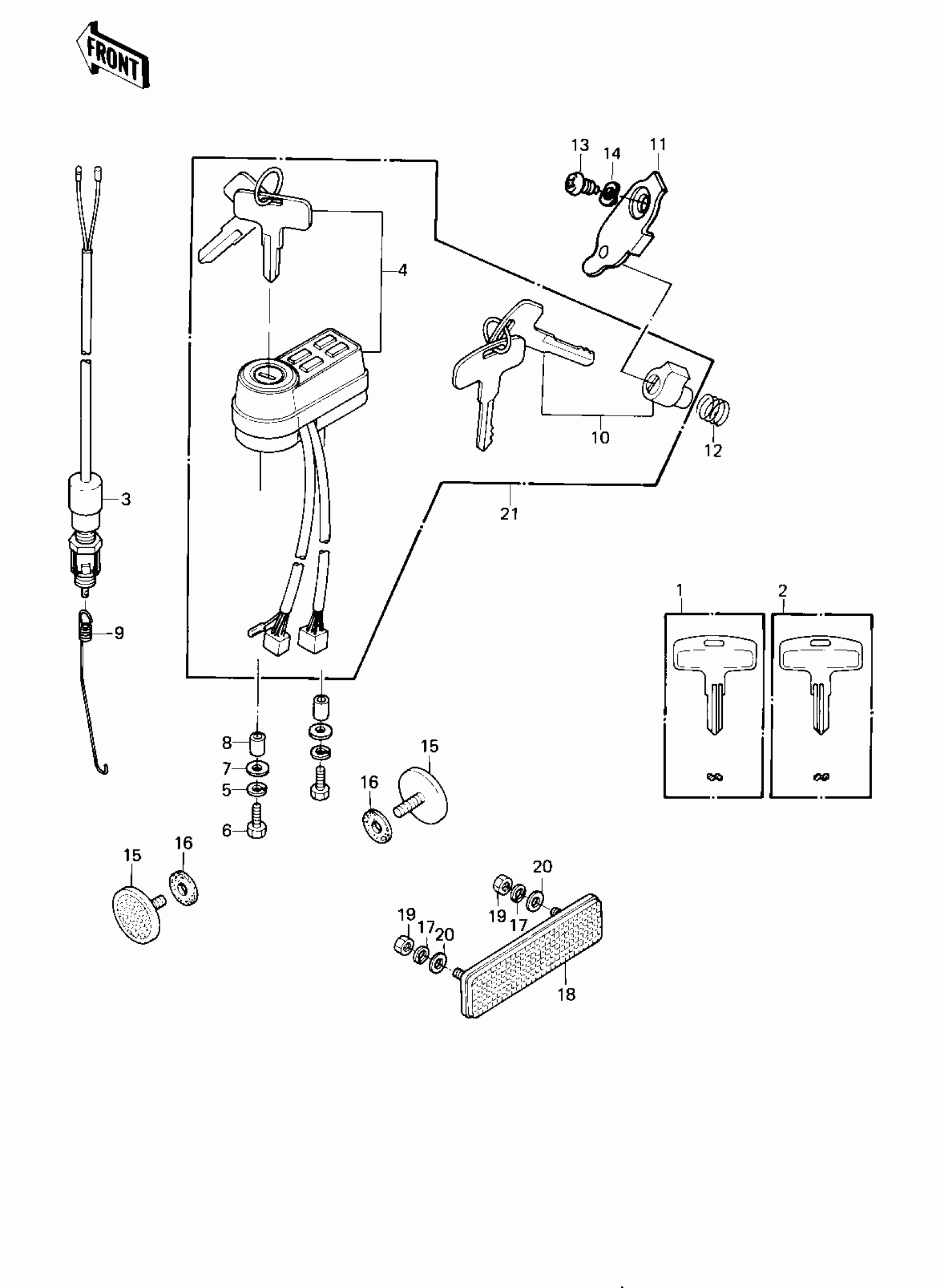

Kawasaki KE175 IGNITION SWITCH/LOCKS/REFLECTORS ('80-'8 Diagram

#

Description
Price

1

KEY,BLANK

27008-1026

Unavailable

2

KEY,BLANK

27008-1027

$16.97

3

SWITCH,BRAKE LAMP

27010-025

$27.60

4

SWITCH ASSY,IGNITION

27005-1005

Unavailable

5

WASHER SPRING 6MM

461F0600

Unavailable

6

BOLT 6X22

112B0622

Unavailable

7

WASHER,6.5X20X1.6

92022-125

$1.25

8

COLLAR

92027-241

$5.21

9

SPRING,BRAKE SWITCH

92081-1082

$7.69

10

LOCK-ASSY,STEERING

27016-042

$46.56

11

CAP,STEERING LOCK

11012-1134

$5.95

11

CAP,STEERING LOCK

11012-1134

$5.95

12

SPRING,STEERING LOCK

27032-001

Unavailable

13

SCREW,3.51MM

92008-007

$3.27

14

WASHER,WAVE

92097-003

$3.57

15

REFLECTOR-REFLEX,FR

28012-016

$21.56

16

DAMPER,REFLECTOR

92094-011

$4.08

17

WASHER SPRING 5MM

461F0500

Unavailable

18

REFLECTOR-REFLEX,RR

28012-1005

Unavailable

19

NUT-HEX

311B0500

$0.51

20

WASHER-PLAIN,5MM

411B0500

Unavailable

21

LOCK ASSY,KE175-D2

27004-5018

$117.44
