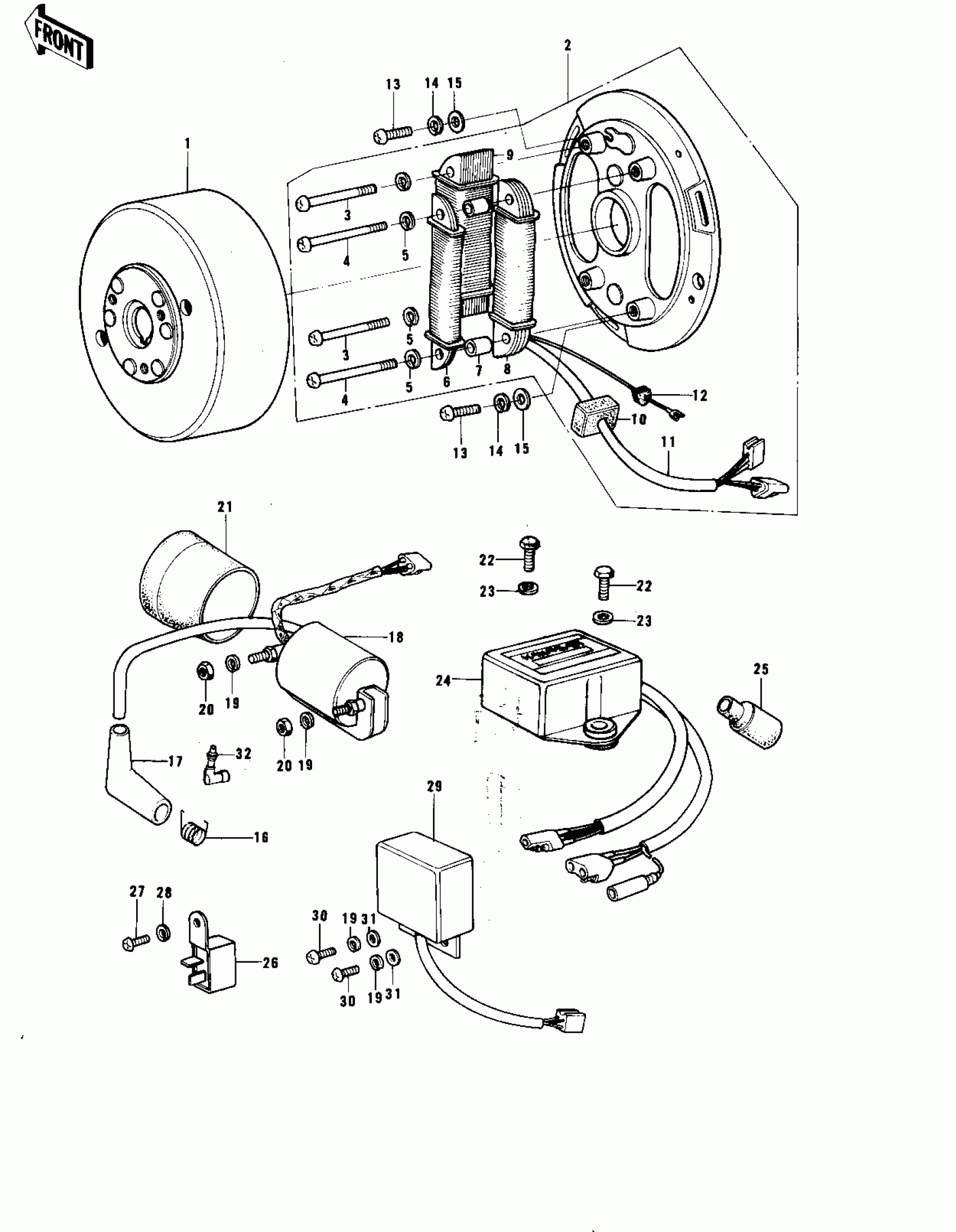

Kawasaki KE175 IGNITION/GENERATOR/REGULATOR Diagram

#

Description
Price

1

FLYWHEEL

21050-023

$457.30

2

STATOR ASSY

21003-034

Unavailable

3

SCREW-PAN-CROS

220E0430

Unavailable

4

SCREW-PAN HEAD,4X35

220E0435A

Unavailable

5

WASHER SPRING 4MM

461F0400

Unavailable

6

COIL,PULSER

21157-002

Unavailable

7

COLLAR

21033-002

$2.41

8

COIL

21049-019

Unavailable

9

COIL

21047-031

$91.59

10

GROMMET-WIRING HARN

92071-050

$7.03

11

WIRING HARNESS,MAG

21029-036

$43.29

12

GROMMET WIRING HARN C

21017-005

Unavailable

13

SCREW-PAN-CROS

220B0520

$0.71

14

WASHER SPRING 5MM

461F0500

Unavailable

15

WASHER-PLAIN,5MM

411B0500

Unavailable

16

TERMINAL,SPARK PLUG CAP

92101-001

$1.44

17

CAP-SPARK PLUG

21130-009

$20.48

18

COIL-IGNITION

21121-039

Unavailable

19

WASHER SPRING 6MM

461F0600

Unavailable

20

NUT 6MM

311B0600

Unavailable

21

RUBBER CAP-COIL

92073-016

$6.88

22

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.61

23

WASHER PLAIN 6MM

411B0600

Unavailable

23

WASHER PLAIN

92022-024

$2.92

24

IGNITION UNIT

21119-028

$566.28

24

IGNITION UNIT

21119-028

$566.28

25

COVER WIRING HARNESS

26009-003

Unavailable

26

RECTIFIER

21061-015

Unavailable

27

SCREW PAN HEAD 5X10

220B0510

Unavailable

28

WASHER-PLAIN,5MM

411B0500

Unavailable

28

WASHER SPRING 5MM

461F0500

Unavailable

29

REGULATOR

21066-022

Unavailable

30

SCREW-PAN-CROS,6X14

220B0614

$1.32

31

WASHER PLAIN 6MM

411B0600

Unavailable

32

CAP-ASSY-PLUG

21160-005

$52.69
