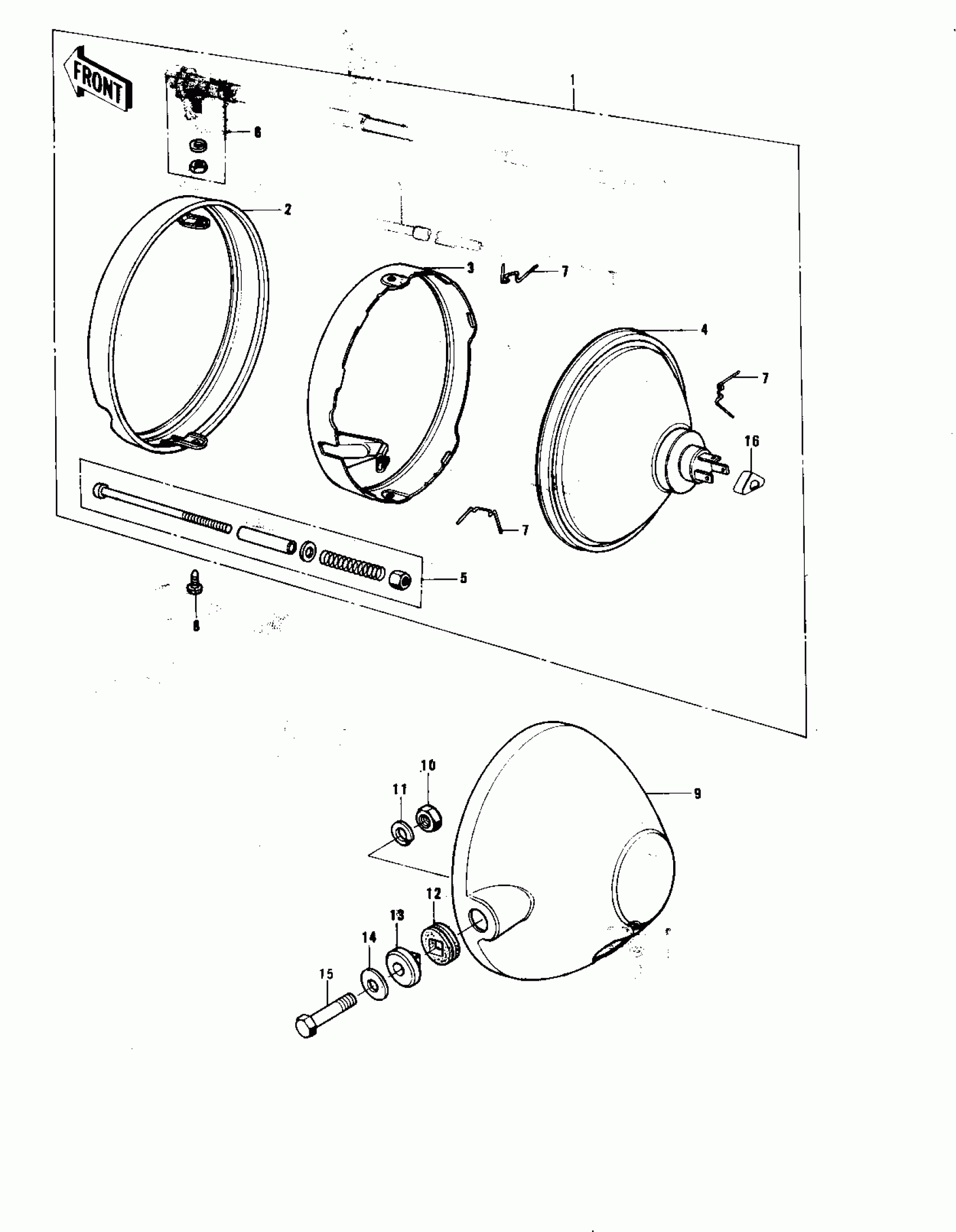

Kawasaki KE175 HEADLIGHT Diagram

#

Description
Price

1

LAMP UNIT,HEAD

23004-1012

$158.32

1

LAMP UNIT,HEAD

23004-1012

$158.32

2

RIM,HEAD LAMP

23006-042

$62.24

3

RETAINER,SEALED BEAM

23072-002

$39.81

4

LENS UNIT,HEAD LAMP

23007-068

Unavailable

4

SEALED BEAM UNIT

23007-073

Unavailable

5

SCREW ASSY,FOCUS AJST

23013-5001

Unavailable

6

SCREW SET,LENS UNIT

23013-007

$5.46

7

SPRING,HEAD LAMP LENS

23009-015

$4.78

8

SCREW,PAN HEAD,5X14

23019-025

$0.51

9

BODY,HEAD LAMP,F.BLAK

23005-050-21

Unavailable

10

NUT-HEX-FINE,10MM

314B1000

Unavailable

11

WASHER SPRING 10MM

461F1000

Unavailable

12

DAMPER RUBBER

23066-011

Unavailable

13

COLLAR

23052-005

$14.36

14

WASHER-PLAIN,10MM

411D1000

$4.25

15

BOLT,HEX HEAD,10X30

92007-041

Unavailable

16

COVER,HEAD LAMP SOCKET

23081-001

$7.92
