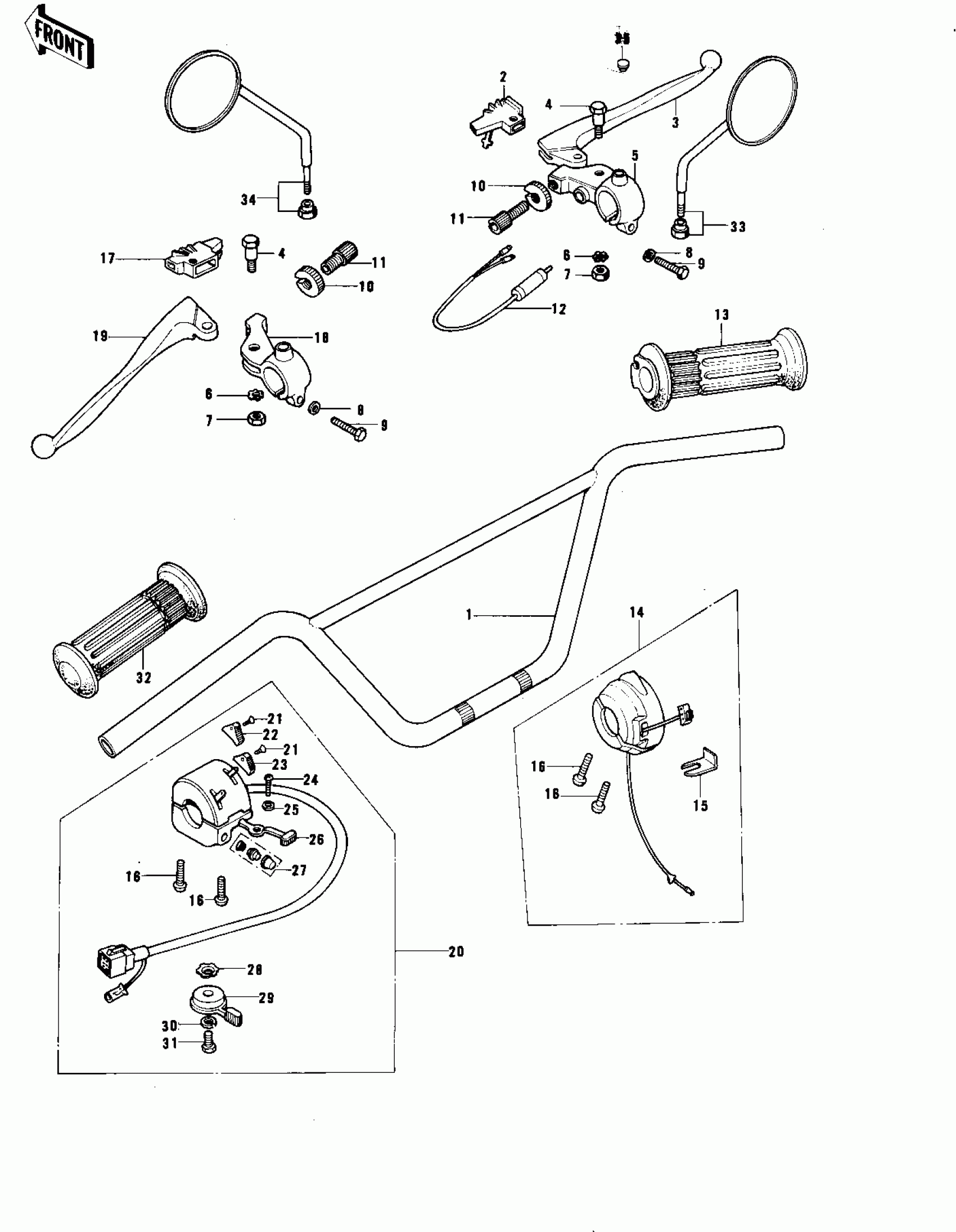

Kawasaki KE175 HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

46004-033

Unavailable

2

BOOT,LEVER HOLDER

49006-1017

$14.71

3

LEVER-GRIP,FRONT BRAKE

46058-004

$22.90

4

BOLT,5X22

92007-046

$6.34

5

HOLDER,BRAKE LEVER,FR,F.BLACK

46060-009-21

Unavailable

6

WASHER LOCK 5MM

464H0500

Unavailable

7

NUT,LOCK,5MM

92019-014

$4.00

8

WASHER PLAIN 6MM

411B0600

Unavailable

9

BOLT HEX HEAD 6X25

110N0625

Unavailable

10

NUT,CABLE ADJUST LOCK,8MM

46056-005

$7.04

11

SCREW,CABLE ADJUST,8MM

46055-003

$12.92

12

SWITCH,FR BRAKE LAMP

27021-004

Unavailable

13

GRIP ASSY,THROTTLE

46019-039

Unavailable

14

CASE ASSY,R.H

46018-047

Unavailable

15

HOLDER,CONTROL CABLE

46037-023

Unavailable

16

SCREW-PAN-CROS,5X25

220B0525

$3.24

17

BOOT,LEVER HOLDER

49006-1017

$14.71

18

HOLDER,F.BLACK

46094-011-21

$36.50

19

LEVER-GRIP,CLUTCH

46092-015

$19.69

20

CASE ASSY,L.H

46091-050

Unavailable

20

CASE ASSY,L.H

46091-052

Unavailable

21

SCREW CNTSNK HD 3X8

221B0308A

Unavailable

22

KNOB-L.H SWITCH,B

46044-008

Unavailable

23

KNOB-L.H SWITCH

46044-011

Unavailable

24

SCREW PAN HEAD 3X5

220B0305A

$0.63

25

WASHER

92095-010

Unavailable

26

KNOB-SWITCH

46044-007

Unavailable

27

SWITCH ASSY LH BUTTON

46078-003

$7.31

28

WASHER LOCK

92095-012

Unavailable

29

LEVER STARTER

46096-008-10

$23.59

30

WASHER SPRING 6MM

461F0600

Unavailable

31

BOLT,6X10

112G0610

Unavailable

32

RUBBER,L.H GRIP

46075-029

Unavailable

33

MIRROR-ASSY,RH

56002-020

$68.40

34

MIRROR-ASSY,LH

56003-009

$61.57

34

MIRROR-ASSY,LH

56003-009

$61.57

35

CAP-RR VIEW MIRROR

92102-009

Unavailable
