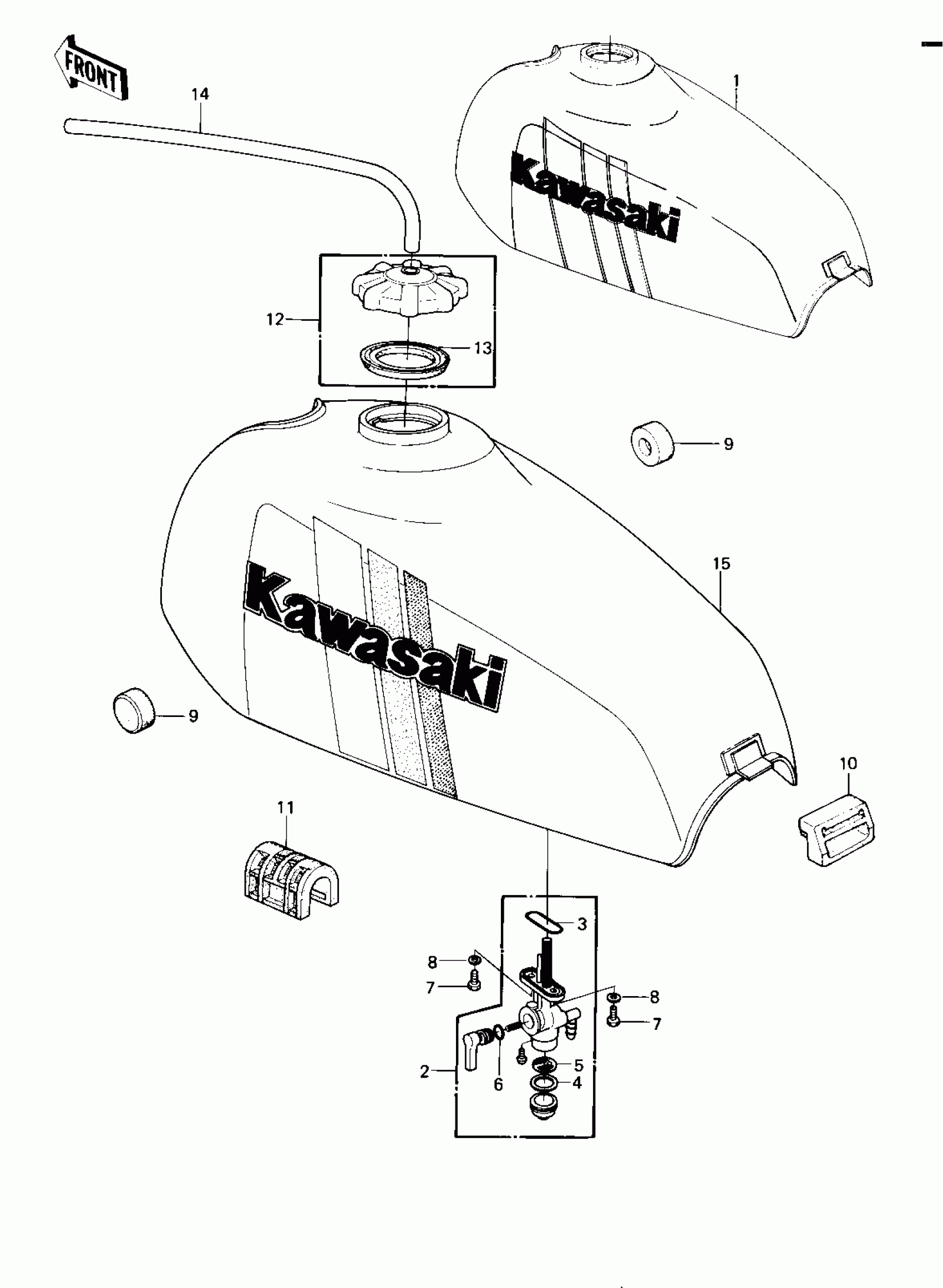

Kawasaki KE175 FUEL TANK ('80-'81 KE175-D2/D3) Diagram

#

Description
Price

1

TANK-FUEL,F.RED

51001-5052-B1

$377.97

1

TANK-FUEL,B.BLUE

51001-1013-C9

Unavailable

2

TAP-ASSY,FUEL

51023-1020

Unavailable

3

RING,TAP FLANGED

51039-003

$4.97

4

GASKET,FUEL TAP CUP

11009-1013

$3.86

5

FILTER,FUEL TAP

14043-1002

$4.03

6

O RING,10MM

670B2010

$1.31

7

BOLT,6X20

92001-1091

$3.12

8

WASHER-PLAIN

92022-183

$3.12

9

DAMPER,FUEL TANK

92075-101

$4.93

10

DAMPER,FUEL TANK,REAR

92075-1074

Unavailable

11

DAMPER,FUEL TANK

92075-284

$18.56

12

CAP-ASSY-TANK,FUEL

51048-1004

Unavailable

13

GASKET,FUEL TANK CAP

51059-006

Unavailable

14

TUBE,5X1430

702A051430

$29.70

15

TANK-FUEL,F.RED

51001-5087-B1

$473.18

15

TANK-COMP-FUEL,S.B.YL (Canada)

51001-1013-E5

Unavailable
