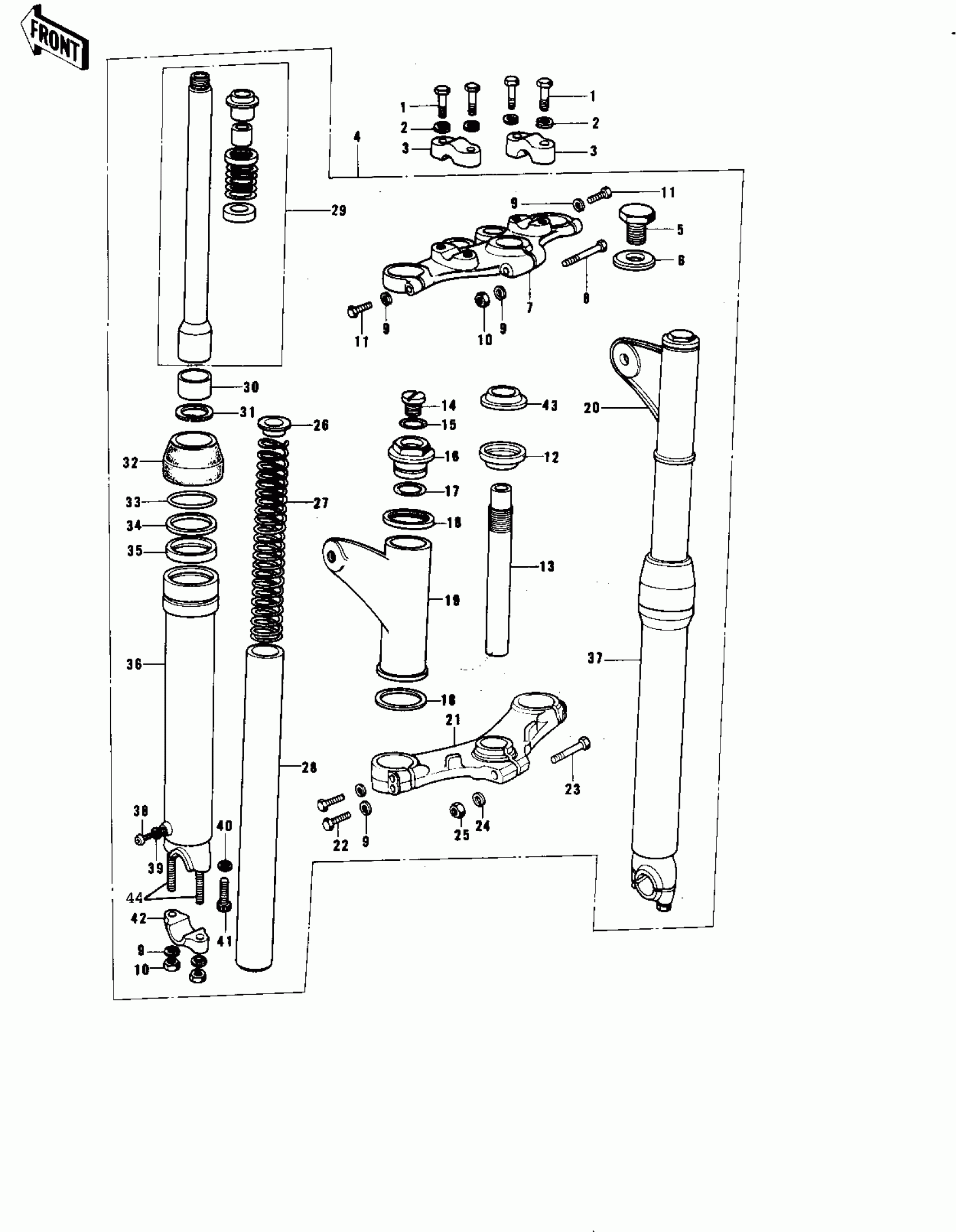

Kawasaki KE175 FRONT FORK Diagram

#

Description
Price

1

BOLT 8X38

92001-1405

$13.05

2

WASHER SPRING 8MM

461F0800

Unavailable

3

HOLDER,HANDLEBAR

46012-014

Unavailable

4

FORK-FRONT

44001-171

$695.27

5

BOLT STRNG STEM HEAD

44041-007

Unavailable

6

WASHER STRNG STEM HD

44043-016

$10.56

7

HEAD,STEERING STEM

44039-068

$118.78

8

BOLT,FORK TOP

44041-065

Unavailable

9

WASHER SPRING 8MM

461F0800

Unavailable

10

NUT,8MM

311B0800

Unavailable

11

BOLT-STEERING STEM HD

44041-044

Unavailable

12

DUST SHIELD-STRNG STM

44010-020

Unavailable

13

SHAFT,STEERING STEM

44052-011

$75.05

14

SCREW,TOP BOLT

44041-082

$3.97

15

"O" RING

44046-024

$1.32

16

BOLT,FORK TOP

44032-013

$19.29

17

'O' RING FORK FIT BLT

44046-013

Unavailable

18

GASKET,FORK COVER

44045-055

$4.41

19

COVER,L.H FORK

44033-075

$60.44

20

COVER,R.H FORK

44034-075

$60.44

21

STEM,STEERING

44038-010

$276.17

22

BOLT HEX HEAD 8X35

110N0835

Unavailable

23

BOLT-STEERING STEM HD

44041-042

Unavailable

24

WASHER SPRING 10MM

461F1000

Unavailable

25

NUT (10MM)

311B1000

Unavailable

26

GUIDE,FORK SPRING

44028-038

Unavailable

27

SPRING,FORK

44026-069

$29.51

28

TUBE,FORK INNER

44013-053

$122.88

29

CYLINDER-FORK

44022-036

$59.24

30

PISTON,FORK

44018-010

$8.53

31

CIRCLIP,26MM

481J2600

$1.14

32

DUST SHIELD

44010-033

$22.54

33

CIRCLIP,FORK OUT TUB

44044-022

$2.08

34

WASHER

44043-059

$1.97

35

OIL SEAL

44009-025

Unavailable

36

TUBE,LH,FORK OUTER

44005-062

$186.65

37

TUBE,RH,FORK OUTER

44006-060

$164.30

38

SCREW PAN HEAD 4X8

220B0408

Unavailable

39

GASKET,FORK DRAIN PLUG

44045-002

$4.12

40

GASKET

44045-057

$3.86

41

BOLT,SOCKET,FORK CYLINDER

44041-040

$5.21

42

HOLDER,FORK AXLE

44063-013

$21.12

43

RACE,STEERING STEM BEARING

92047-010

Unavailable

44

BOLT-STUD,8X30

172G0830

$2.12
