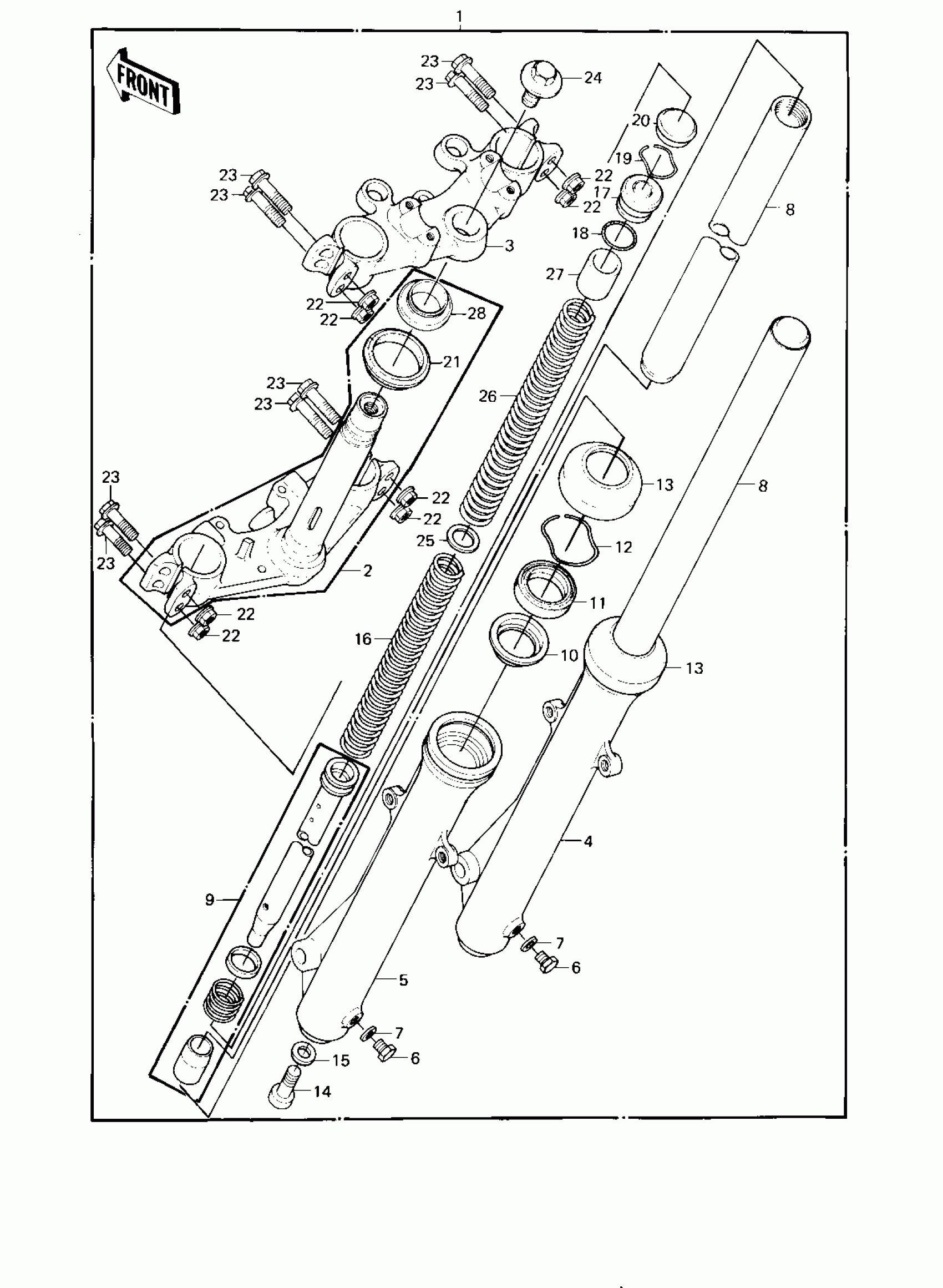

Kawasaki KE175 FRONT FORK ('80-'81 KE175-D2/D3) Diagram

#

Description
Price

1

FORK-FRONT

44001-1417

$927.81

2

STEM,STEERING

44037-1012

$288.28

3

HEAD,STEERING STEM

44039-1020

$151.85

4

TUBE,RH,FORK OUTER

44006-1017

$160.38

5

PIPE-LEFT FORK OUTER

44005-1113

$198.34

6

BOLT HEX HEAD 6X8

110B0608

Unavailable

7

GASKET,DRAIN PLUG

44045-047

$7.42

8

TUBE,FORK,INNER

44013-1014

$299.82

9

CYLINDER-FORK

44022-1015

$66.98

10

SPACER,OUTER TUBE

92026-1028

$6.90

11

SEAL-OIL,FORK

92049-1268

$40.67

12

CIRCLIP,OUTER TUBE

92033-1022

$5.01

13

DUST SHIELD,FORK

92093-1017

Unavailable

14

BOLT,FORK CYLINDER

44041-078

$9.56

15

GASKET,FORK CYLINDER BOLT

44045-051

$4.88

16

SPRING,FORK,LOWER

44026-1019

$23.59

17

SEAT,FORK SPRING

44029-1012

$19.31

18

"O" RING,SPRING SEAT

92055-1060

Unavailable

19

CIRCLIP,FORK TOP

92033-1023

$4.32

20

CAP,RUBBER,FORK TOP

11012-1061

Unavailable

21

SEAL,STEERING STEM

44010-027

Unavailable

22

NUT,FLANGED,8MM

92015-1055

$3.81

23

BOLT,HEX HEAD,8X45

92001-1136

Unavailable

24

BOLT,STEERING STEM HE

92001-1741

Unavailable

25

WASHER,FORK SPRING

44028-1005

Unavailable

26

SPRING,FORK,UPPER

44026-1034

$22.75

27

COLLAR,FORK SPRING

92026-1054

$9.17

28

RACE,STEERING STEM BEARING

92047-010

Unavailable
