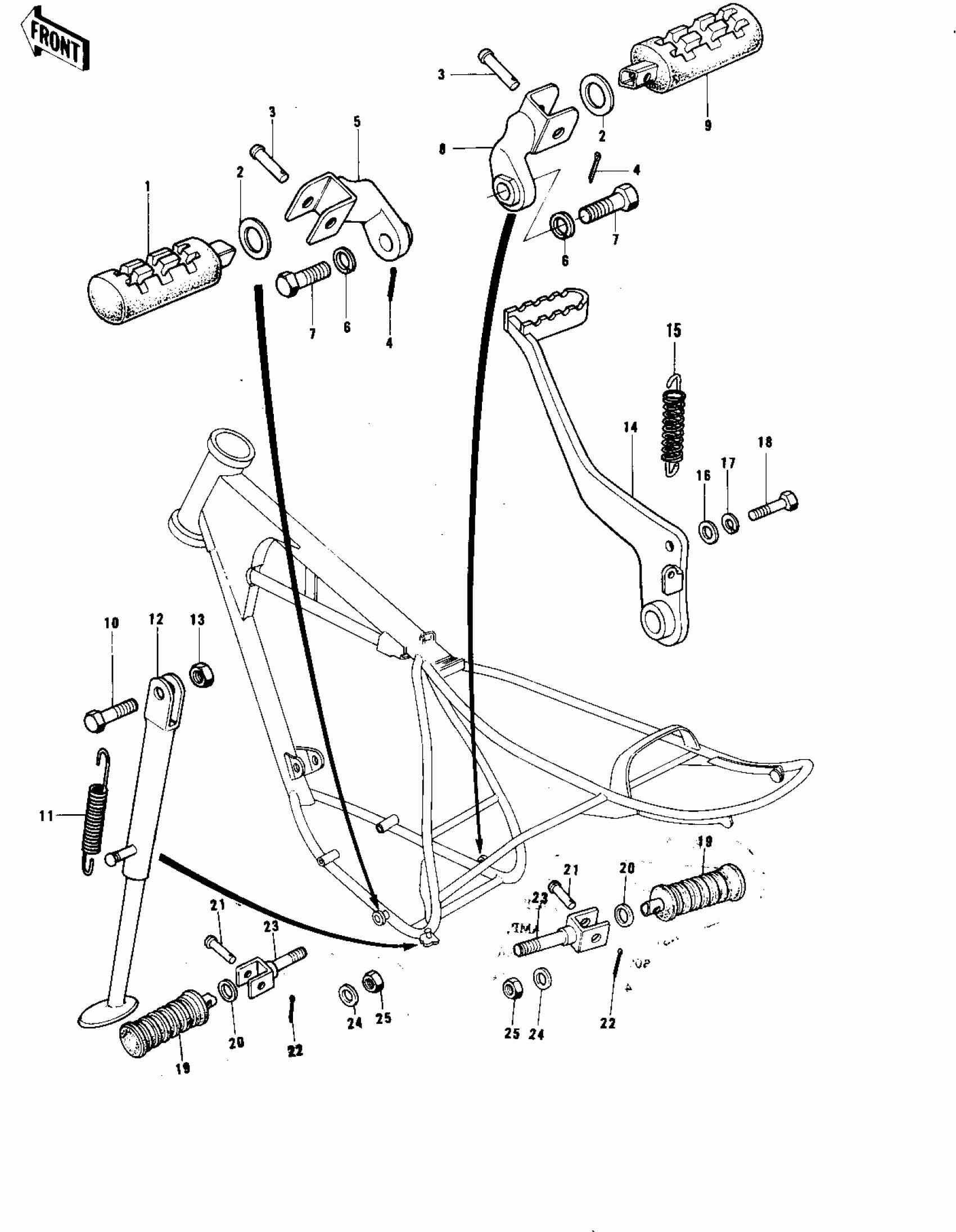

Kawasaki KE175 FOOTRESTS/STAND/BRAKE PEDAL Diagram

#

Description
Price

1

STEP-ASSY,FR,LH

34027-1114

Unavailable

2

WASHER,25X36X2.3

92022-250

$3.97

3

PIN,8X31

92043-080

$5.03

4

PIN COTTER 2.5X16

550D2516

Unavailable

5

BRACKET,L.H.FOOTREST

34007-013

$114.34

6

WASHER SPRING 14MM

461F1400

Unavailable

7

BOLT-HEX HEAD,14X32

113B1432

Unavailable

8

BRACKET,R.H FOOTREST

34007-014

$91.63

9

STEP-ASSY,FR,RH

34027-1115

Unavailable

10

BOLT,HEX HEAD 10X35

92001-1252

Unavailable

11

SPRING,STAND

34025-008

$7.44

12

STAND-SIDE

34024-1043

Unavailable

13

NUT-HEX-FINE,10MM

314B1000

Unavailable

14

PEDAL,BRAKE

43001-065

$96.07

15

SPRING BRAKE PEDAL

43005-032

Unavailable

16

WASHER,6.5X20X1.6,WHITE

92022-193

$4.42

17

WASHER SPRING 6MM

461F0600

Unavailable

18

SCREW PAN HEAD 6X10

220E0610

Unavailable

19

RUBBER,FOOTREST

92076-027

$37.92

20

WASHER-PLAIN (OPT)

92022-199

Unavailable

21

PIN,6X28

92043-1464

$6.44

22

PIN-COTTER,2.0X12

550D2012

$1.03

23

BRACKET,REAR FOOTREST

34029-013

Unavailable

24

WASHER SPRING 10MM

461F1000

Unavailable

25

NUT-HEX-FINE,10MM

314B1000

Unavailable
