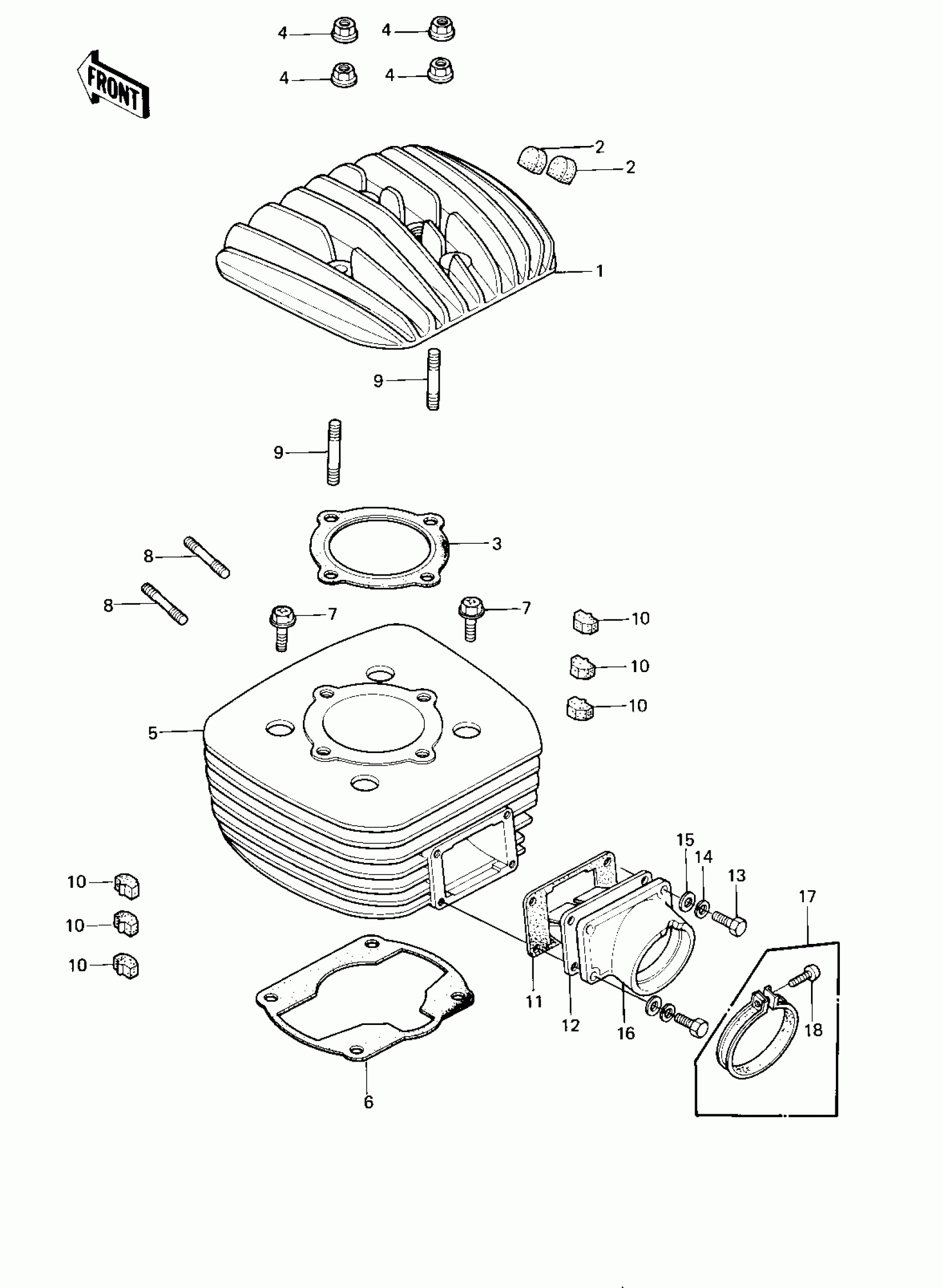

Kawasaki KE175 CYLINDER HEAD/CYLINDER/REED VALVE ('80-' Diagram
#
Description
Price
1
HEAD,CYLINDER
11001-1034
Unavailable
3
GASKET,CYLINDER HEAD
11004-1017
Unavailable
5
CYLINDER
11005-1072
Unavailable
6
GASKET,CYLINDER BASE
11009-1060
Unavailable
7
BOLT,FLANGED,8X70
131G0870
Unavailable
10
DAMPER
92075-304
Unavailable
11
GASKET,REED VALVE
11009-1109
Unavailable
12
VALVE ASSY,REED
12021-1005
Unavailable
13
BOLT-UPSET
112G0625
Unavailable
14
WASHER SPRING 6MM
461F0600
Unavailable
15
WASHER PLAIN 6MM
411B0600
Unavailable
16
HOLDER,CARBURETOR
16065-1025
Unavailable
18
SCREW,PAN HEAD
92011-037
Unavailable
