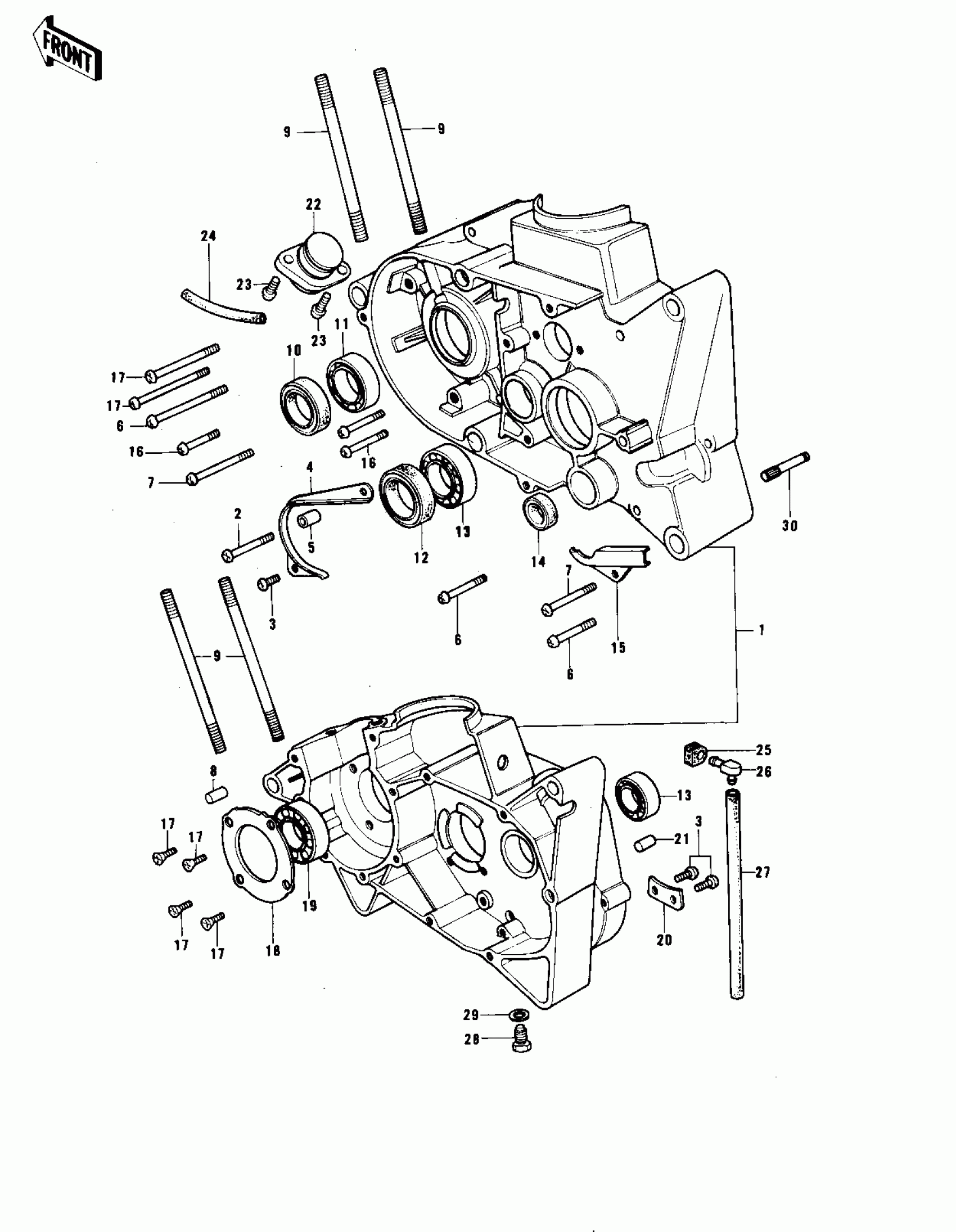

Kawasaki KE175 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

14001-074-21

Unavailable

2

SCREW PAN HEAD 6X85

220B0685

Unavailable

3

SCREW PAN HEAD 6X12

220B0612

Unavailable

4

GUIDE-CHAIN

14077-002

Unavailable

5

COLLAR

92027-169

$4.87

6

SCREW PAN HEAD 6X55

220B0655

$3.28

7

SCREW PAN HEAD 6X65

220B0665

Unavailable

8

PIN,DOWEL,10X14

92043-1037

$0.76

9

STUD 8X75

172G0875

Unavailable

10

SEAL-OIL

92049-1250

$15.40

11

BEARING-BALL,#6205C3

601B6205

$15.38

12

OIL SEAL SC30426

92050-039

$10.82

13

BEARING-BALL,6204C3

92045-1046

Unavailable

14

SEAL-OIL,SB12205

92049-004

$7.95

15

COVER-WIRING HARNESS

14076-002

Unavailable

16

SCREW PAN HEAD 6X40

220B0640

Unavailable

17

SCREW-CSK-CROS,6X16

221B0616

$0.63

18

HOLDER-CRANK BEARING

14014-021

Unavailable

19

BEARING-BALL,#6305C3

601B6305

$23.43

20

HOLDER-MISSION BERNG

14014-022

Unavailable

21

PIN DOWEL 8X16

551A0816

$1.14

22

PUMP-FUEL DRAIN

16137-002

Unavailable

23

SCREW-PAN-CROS,6X16

220B0616

Unavailable

24

PIPE FUEL OVERFLOW

92059-031

Unavailable

25

GROMMET,BREATHER

92071-042

$3.39

26

BREATHER ASSY

14069-1001

$22.77

27

PIPE-BREATHER

92059-061

Unavailable

28

PLUG,DRAIN,10X12

92067-001

$3.50

29

GASKET,10.5X16X1

92065-058

$3.16

30

PIN,KICK SPRING

92043-117

$8.85
