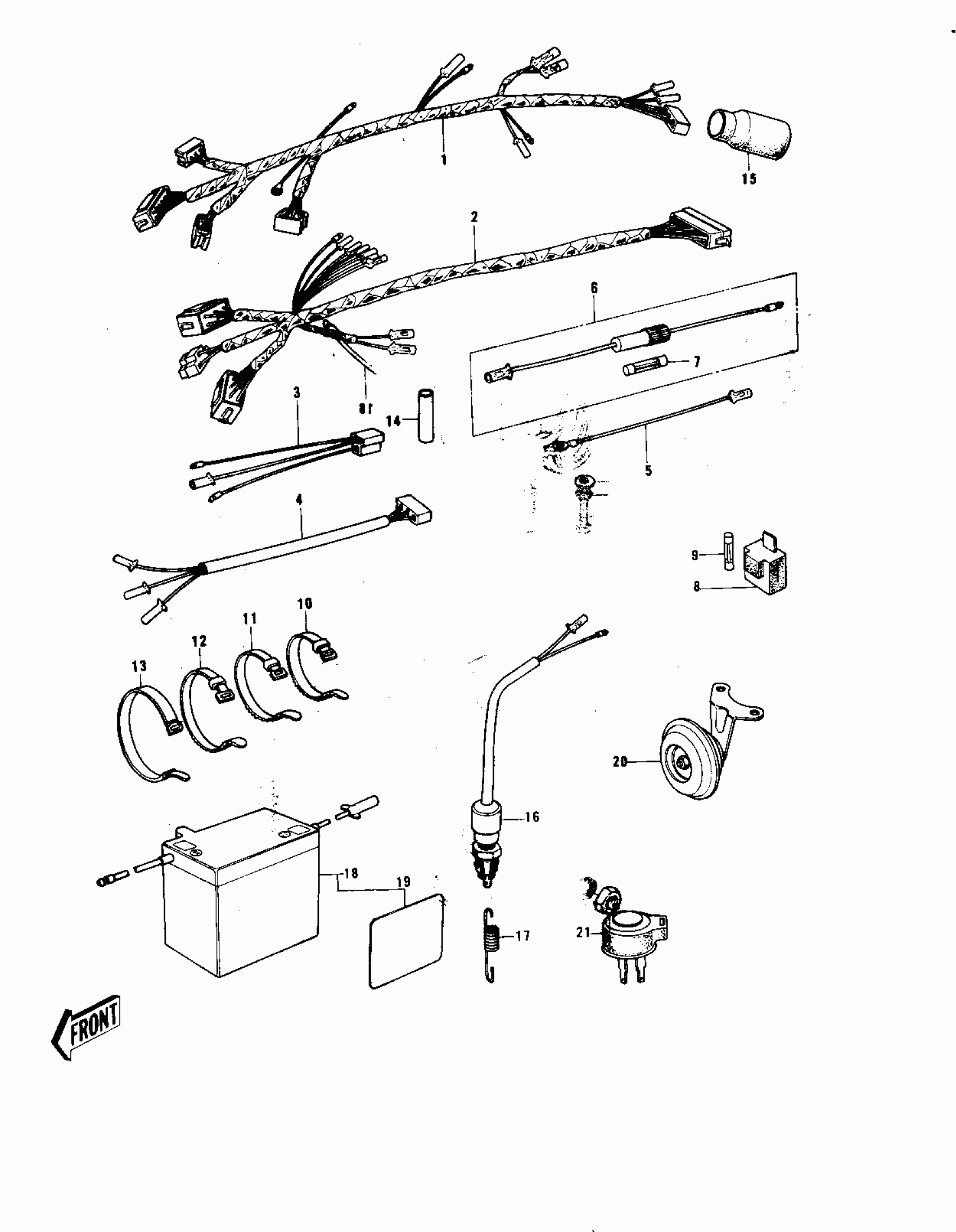

Kawasaki KE175 CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description
Price

1

WIRING HARNESS,MAG

26001-123

Unavailable

2

WIRING HARNESS,HEAD

26002-054

$86.51

3

WIRE,RECTIFIER LEAD

26011-072

Unavailable

4

WIRING HARNESS,TL LMP

26002-046

Unavailable

5

WIRE-LEAD

26011-093

Unavailable

6

FUSE ASSY

26004-025

Unavailable

7

FUSE 15A

26006-007

Unavailable

8

HOLDER-SPARE FUSE

26016-004

Unavailable

9

FUSE 15A

26006-007

Unavailable

10

BAND,L=123

92072-030

$3.97

11

BAND,L=149

92072-031

$3.97

12

BAND,L=218

92072-032

$3.97

13

BAND,WIRING HARNESS

92072-068

Unavailable

14

DAMPER RUBBER,HARNESS

92075-250

$1.78

15

COVER,WIRING HARNESS

26009-008

$5.51

16

SWITCH,BRAKE LAMP

27010-025

$27.60

17

SPRING,BRAKE LAMP

27011-018

$2.39

18

YUA BAT 6N6-1D-2

K26012-034

$46.27

18

YUA BAT 6N6-1D-2

K26012-034

$46.27

19

LABEL-WARNING,BATTERY

56040-1036

Unavailable

20

HORN

27003-044

$49.93

21

RELAY-ASSY,TURN SIGNAL

27002-013

Unavailable
