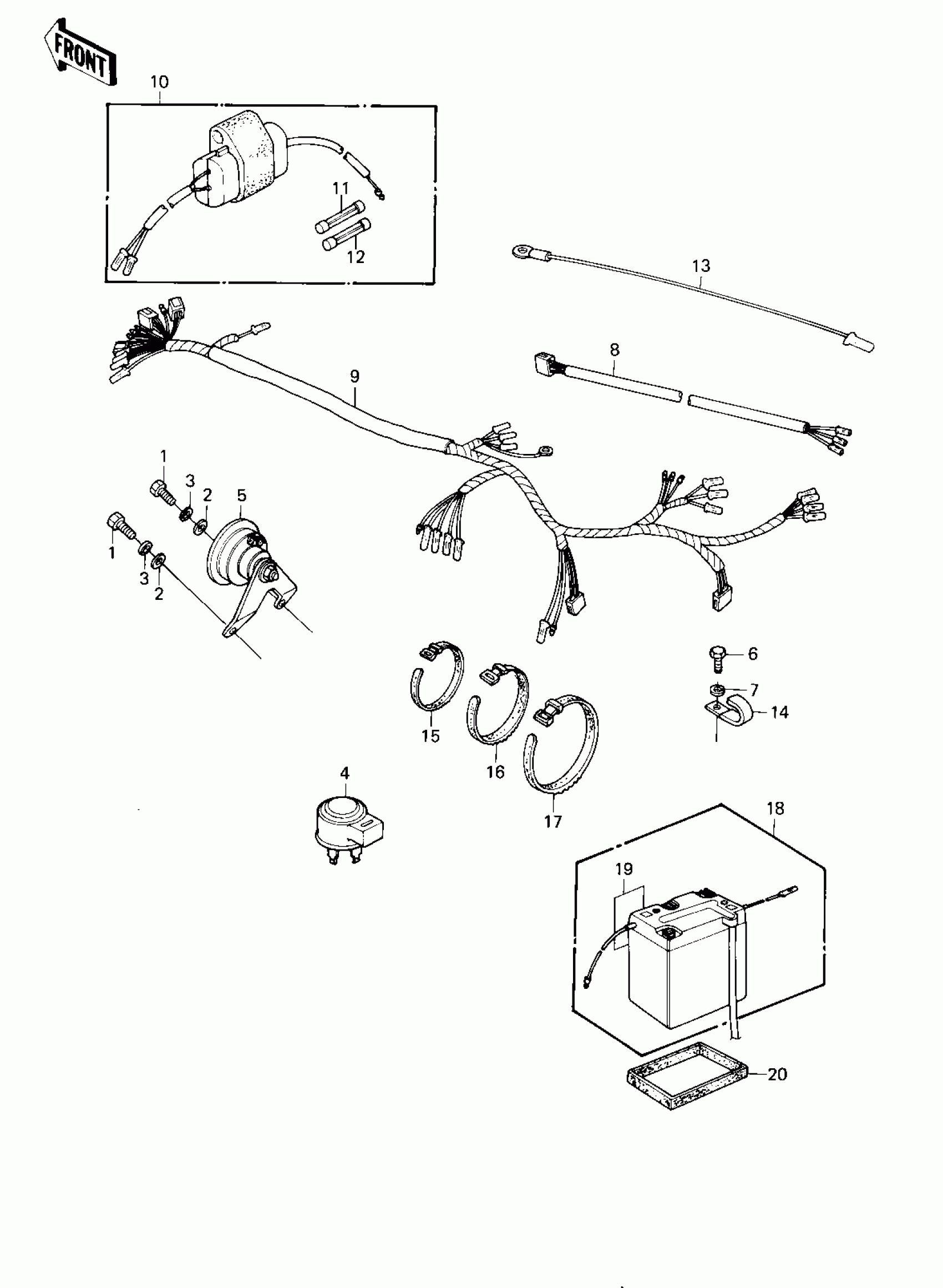

Kawasaki KE175 CHASSIS ELECTRICAL EQUIPMENT ('80-'81 KE Diagram

#

Description
Price

1

BOLT-UPSET,6X16

112G0616

Unavailable

2

WASHER PLAIN 6MM

411B0600

Unavailable

3

WASHER SPRING 6MM

461F0600

Unavailable

4

RELAY-ASSY,TURN SIGNAL

27002-013

Unavailable

5

HORN

27003-1008

$58.90

6

BOLT-UPSET,6X12

112G0612

Unavailable

7

WASHER SPRING 6MM

461F0600

Unavailable

8

HARNESS,TAIL LAMP

26001-1007

$17.51

9

WIRING HARNESS,MAIN

26001-1049

$157.19

10

FUSE-ASSY

26004-1010

Unavailable

11

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$4.05

12

FUSE,15A,L=30

26006-1003

$4.47

13

WIRE-LEAD

26011-093

Unavailable

14

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

15

BAND,L=123

92072-030

$3.97

16

BAND,L=149

92072-031

$3.97

17

BAND,L=218

92072-032

$3.97

18

GS BAT 6N6-1C

K26012-1016

Unavailable

19

LABEL-WARNING,BATTERY

56040-1036

Unavailable

20

DAMPER,BATTERY BOTTOM

32103-023

Unavailable
