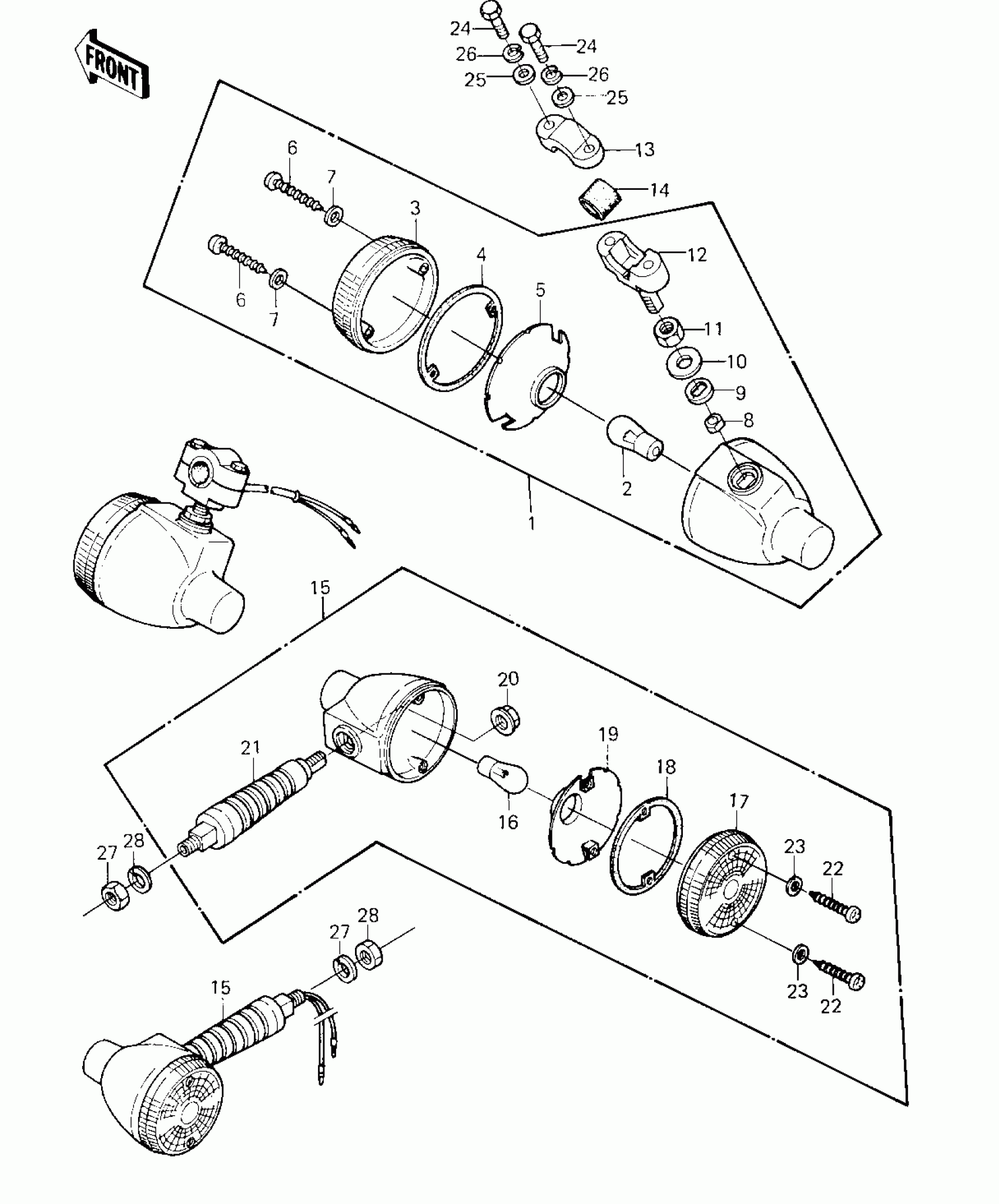

Kawasaki KE125 TURN SIGNALS ('80-'81 A7/A8) Diagram

#

Description
Price

1

LAMP-ASSY-SIGNAL,FR

23037-1039

Unavailable

2

BULB,6V 21CP

92069-056

$5.07

3

LENS-SIGNAL LAMP

23048-1076

$7.74

4

GASKET,TURN SIGNAL LAMP LENS

11009-1128

Unavailable

5

REFLECTOR,SIGNAL LAMP

23035-1003

$13.63

6

SCREW,TAPPING,4X30

92009-1056

$3.92

7

WASHER,PLAIN,4MM

23058-002

$2.05

8

COLLAR,FR SIGNAL LAMP

92027-1182

$4.31

9

GASKET,S LAMP BRACKET

11009-1133

Unavailable

10

WASHER,10.5X24X1.6

92022-1137

$3.92

11

NUT,SGNL LAMP BRACKET

92015-1073

$4.39

12

BRACKET,F SIGNAL LAMP

23051-1028

Unavailable

13

BRACKET-SIGNAL LAMP

23051-1018

Unavailable

14

DAMPER

23066-003

Unavailable

15

LAMP-ASSY-SIGNAL,RR

23037-1087

$71.10

16

BULB,6V 21CP

92069-056

$5.07

17

LENS-SIGNAL LAMP

23048-1076

$7.74

18

GASKET,TURN SIGNAL LAMP LENS

11009-1128

Unavailable

19

REFLECTOR,SIGNAL LAMP

23035-1003

$13.63

20

NUT,SIGNAL LAMP

92015-1072

$3.10

21

BRACKET,SIGNAL LAMP

23051-1033

Unavailable

22

SCREW,TAPPING,4X30

92009-1056

$3.92

23

WASHER,PLAIN,4MM

23058-002

$2.05

24

BOLT,HEX HEAD,5X30

110B0530A

Unavailable

25

WASHER-PLAIN,5MM

411B0500

Unavailable

26

WASHER SPRING 5MM

461F0500

Unavailable

27

NUT-HEX-FINE,10MM

315B1000

Unavailable

28

WASHER SPRING 10MM

461F1000

Unavailable
