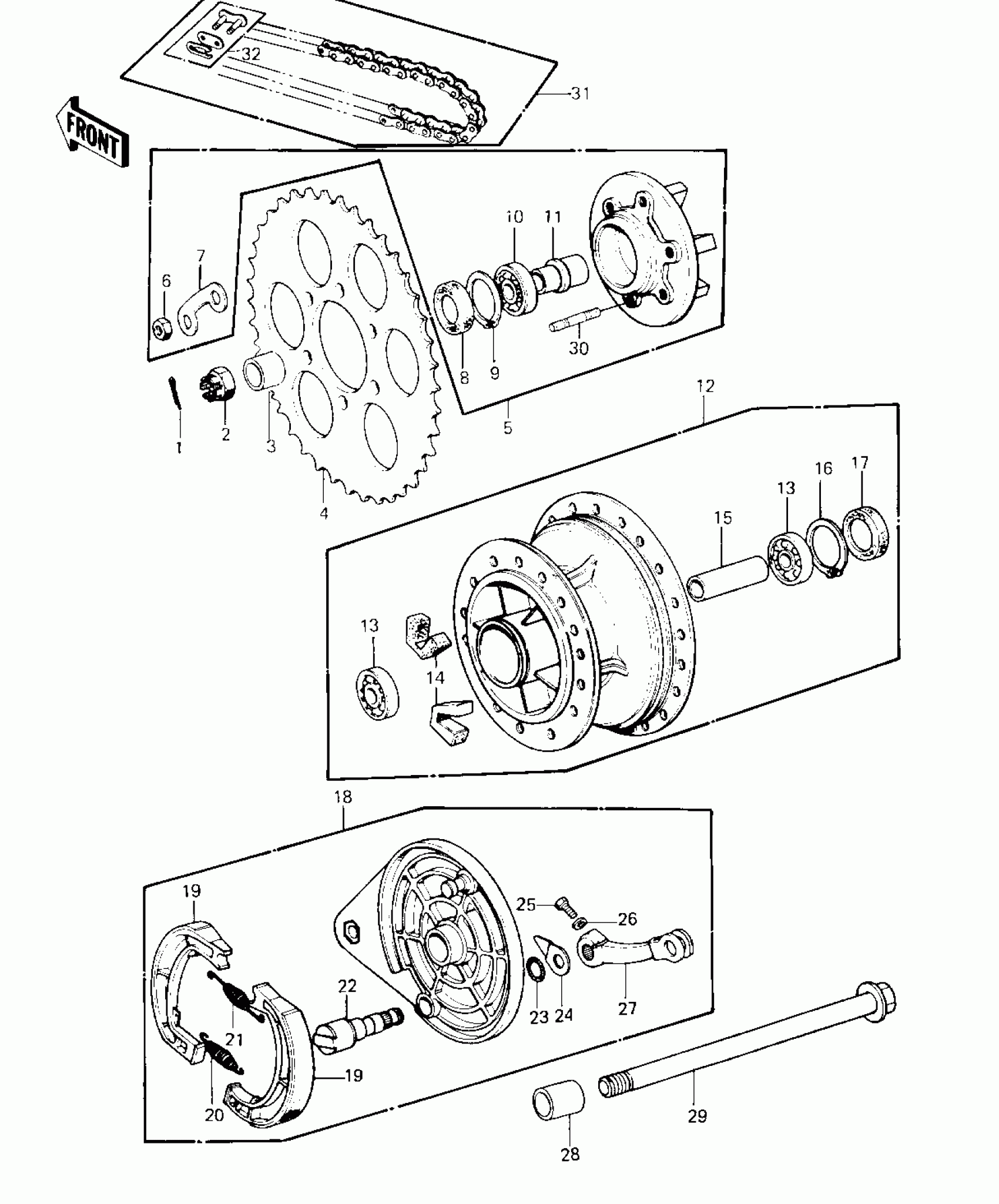

Kawasaki KE125 REAR HUB/BRAKE/CHAIN ('80-'81 A7/A8) Diagram

#

Description
Price

1

PIN-COTTER,4.0X35

550D4035

$1.81

2

NUT,CASTLE,14MM

92103-006

$24.24

3

COLLAR,RR BRAKE,L=22

92027-1253

$8.86

4

REAR SPROCKET.50T

42041-146

Unavailable

4

REAR SPROCKET,54T

42041-147

$87.55

5

COUPLING-ASSY,RR HUB

42033-1028

$140.21

6

NUT-HEX-SMALL,8MM

317B0800

Unavailable

7

WASHER,SPROCKET LOCK

92088-019

$5.42

8

SEAL-OIL,26X42X8

92050-060

$16.98

9

RING-SNAP,42MM

92033-1041

$4.88

10

BEARING-BALL,#6004C3

601B6004

$9.84

11

SLEEVE,RR HUB COUPLNG

42036-018

$23.42

12

DRUM-ASSY,RR BRK

41034-1025

$546.05

13

BEARING-BALL,#6202C3

601B6202

$6.86

14

DAMPER,REAR HUB SHOCK

42014-023

Unavailable

15

SPACER,RR HUB BEARING

42010-029

$20.71

16

CIRCLIP-TYPE-C,35MM

481J3500

$1.64

17

OIL SEAL,22X35X8

654A223508

Unavailable

18

PANEL-ASY,RR BRK

41035-1036

$289.48

19

SHOE,BRAKE

42019-010

$34.77

20

SPRING,BRAKE SHOE

92081-1550

$9.20

21

SPRING,BRAKE SHOE

92081-1766

$6.39

22

CAM SHAFT,REAR BRAKE

42026-025

$16.97

23

RING-O,BRAKE CAM

92055-004

$4.25

24

INDICATOR,BRAKE SHOE

41085-002

$13.20

25

BOLT-UPSET

112G0622

Unavailable

26

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

27

LEVER,REAR BRAKE CAM

42029-030

$78.66

28

COLLAR,RR BRAKE,L=25

92027-1254

$19.97

29

AXLE,REAR,15X247

41068-1049

$63.19

29

AXLE,REAR,15X247

41068-1049

$63.19

30

STUD,8X17

92004-1015

Unavailable

31

DR CHAIN 428X118H

92057-030

$100.54

32

JOINT-CHAIN

92058-1015

Unavailable
