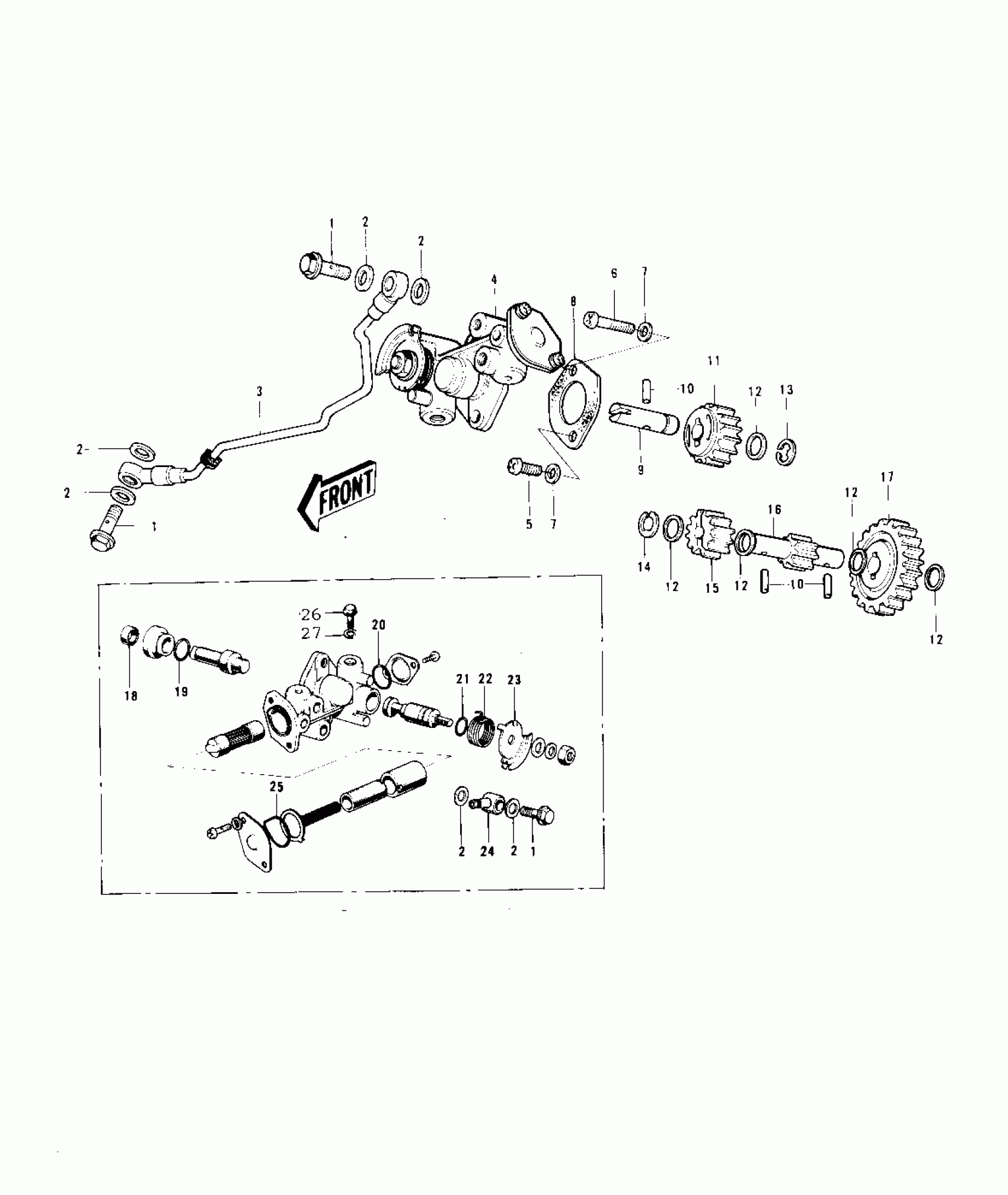

Kawasaki KE125 OIL PUMP ('76-'79) Diagram

#

Description
Price

1

BOLT,BANJO,L=16

92060-013

$5.16

2

WASHER OIL PUMP BANJO

92022-077

$3.13

3

PIPE,OIL

16134-022

Unavailable

4

OIL PUMP ASSY

16082-069

Unavailable

4

OIL PUMP ASSY

16082-069

Unavailable

5

SCREW-PAN-CROS

220B0514

Unavailable

6

SCREW-PAN-CROS

220B0528

$1.34

7

WASHER,5.5X10.5X0.8

92022-037

$3.12

8

GASKET,OIL PUMP

11060-1160

$4.41

9

SHAFT,OIL PUMP GEAR

16086-003

$10.42

10

PIN,DOWEL

92042-035

Unavailable

11

GEAR,OIL PUMP

16085-021

$17.90

12

WASHER,THRUST

92026-095

Unavailable

13

CIRCLIP-TYPE-E,7MM

482J7000

$0.76

14

CIRCLIP-TYPE-E,6MM

482J6000

$0.67

15

GEAR,OIL PUMP

16085-020

$17.90

16

PINION,TACHOMETER

13224-010

Unavailable

17

GEAR,OIL PUMP

16085-022

$19.39

18

SEAL-OIL,OIL PUMP SHAFT

16091-001

$5.76

19

RING-O,OIL PUMP SHAFT

16090-002

$3.43

20

"0" RING,LOWER CAP

16090-003

Unavailable

20

RING-O,CAP,CAMSHAFT SIDE

16090-004

Unavailable

21

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

$8.25

22

SPRING,OIL PUMP LEVER

16093-007

$9.42

23

LEVER,OIL PUMP CABLE

16096-014

$7.78

24

FITTING,BANJO

92061-009

Unavailable

25

RING-O,CAP,BANJO SIDE

16088-002

$7.84

26

BOLT,AIR VENT

92009-1010

$14.19

27

WASHER

92022-1006

$5.14
