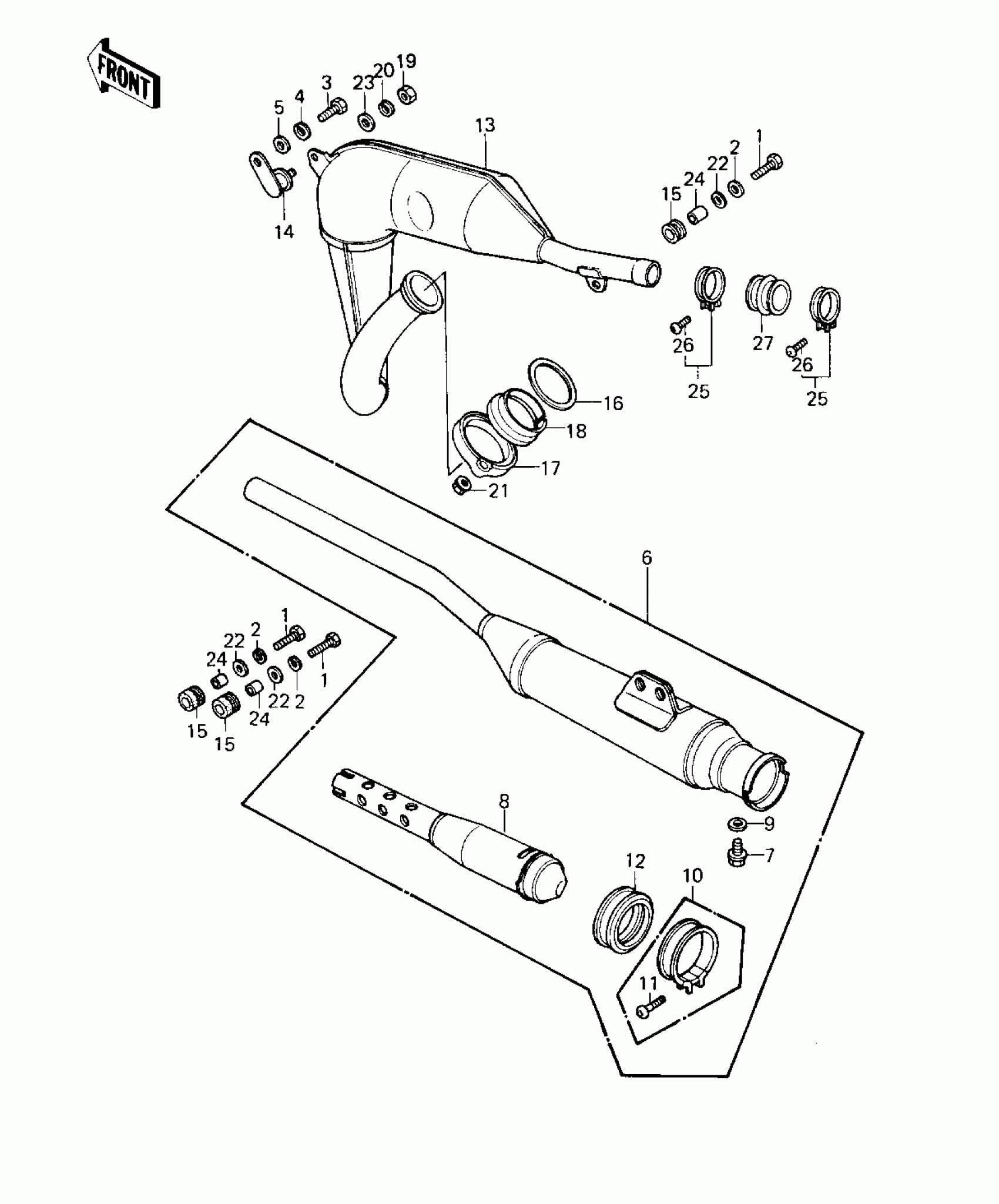

Kawasaki KE125 MUFFLER ('80-'81 A7/A8) Diagram

#

Description
Price

1

BOLT HEX HEAD 8X28

114G0828

Unavailable

2

WASHER SPRING 8MM

461F0800

Unavailable

3

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

4

WASHER SPRING 8MM

461F0800

Unavailable

5

WASHER PLAIN 8MM

410B0800

Unavailable

6

MUFFLER

18001-1279

$205.56

7

BOLT HEX HEAD 6X8

110B0608

Unavailable

8

BAFFLE PIPE,MUFFLER

49099-1028

Unavailable

9

WASHER OIL PUMP BANJO

92022-077

$3.13

10

CLAMP,AIR FILTER

92037-171

$10.26

11

SCREW-PAN-CROS

220B0535

$2.94

12

DUST SHIELD,MUFFLER

92093-1013

Unavailable

13

BODY-MUFFLER

18006-1135

$367.65

14

BRACKET,MUFFLER

18061-060

Unavailable

15

DAMPER RUBBER-MUFFLER

18063-005

Unavailable

16

GASKET EXHAUST PIPE

18067-008

$15.24

17

HOLDER,EXHAUST PIPE

18069-057

Unavailable

18

INSERT,EXHAUST HOLDER

18070-007

Unavailable

19

NUT-HEX-SMALL,8MM

317B0800

Unavailable

20

WASHER SPRING 8MM

461F0800

Unavailable

21

NUT,LOCK,8MM

92017-013

$8.22

22

WASHER,8X26X2.3

92022-1564

$3.43

23

WASHER,8.5X20X1.6

92022-1561

$3.43

24

COLLAR

92027-102

$1.00

25

CLAMP,CONNECTOR

92037-1127

Unavailable

26

SCREW-PAN-CROS,5X25

220B0525

$3.24

27

SEAL,MUFFLER CONNECTING

92093-1020

Unavailable
