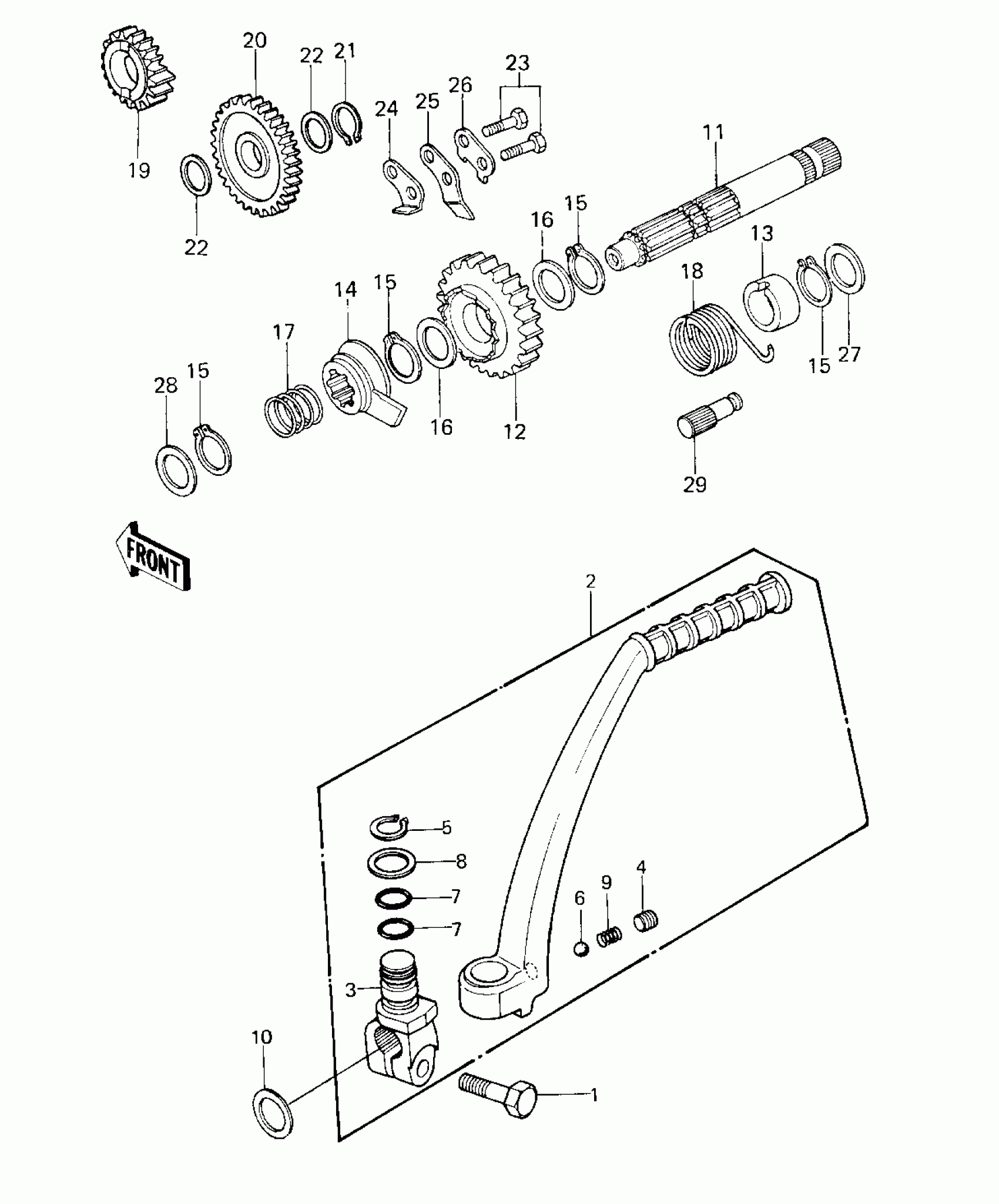

Kawasaki KE125 KICKSTARTER MECHANISM ('80-'81 A7/A8) Diagram

#

Description
Price

1

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

2

PEDAL ASSY,KICK

13064-1027

Unavailable

2

PEDAL ASSY,KICK

13064-1027

Unavailable

3

BOSS,KICK PEDAL

13061-5001

Unavailable

3

BOSS,KICK PEDAL

13061-5001

Unavailable

4

SCREW-SET-SOCKET,8X8

290Q0808

$4.25

5

CIR CLIP

482K0100

$0.69

6

BALL-STEEL,1/4

600A0800

$0.67

7

O RING,12MM

670B2012

$2.58

8

WASHER,15.2X20X1

92022-1019

$4.61

9

SPRING,KICK PEDAL

92081-020

$3.39

10

WASHER,16.3X24X1

92022-1205

Unavailable

11

SHAFT,KICKSTARTER

13066-1012

Unavailable

12

GEAR,KICKSTARTER

13068-032

Unavailable

13

GUIDE,KICKSPRING

13070-008

Unavailable

14

RATCHET

13078-1052

$67.80

15

CIRCLIP-TYPE-C,16MM

480J1600

$3.43

16

WASHER,16.8X22X0.5

92022-315

$4.93

17

SPRING,RATCHET

92081-122

$6.98

18

SPRING,KICKSTARTER

92082-005

Unavailable

19

PINION,KICKSTARTER

13075-010

Unavailable

20

IDLE GEAR,KICKSTARTER

13073-011

Unavailable

21

CIRCLIP-TYPE-C,13MM

480J1300

$3.12

22

WASHER,PLAIN

92022-267

$5.75

23

BOLT HEX HEAD 6X18

110N0618

Unavailable

24

STOPPER,KICKSTARTER

32085-1061

$5.36

25

GUIDE,KICKSTARTER

13206-010

Unavailable

26

WASHER,LOCK

92024-054

$2.53

27

WASHER,PLAIN

92022-268

Unavailable

28

WASHER,12.3X20X0.5

92022-269

$1.14

29

PIN

92043-102

Unavailable
