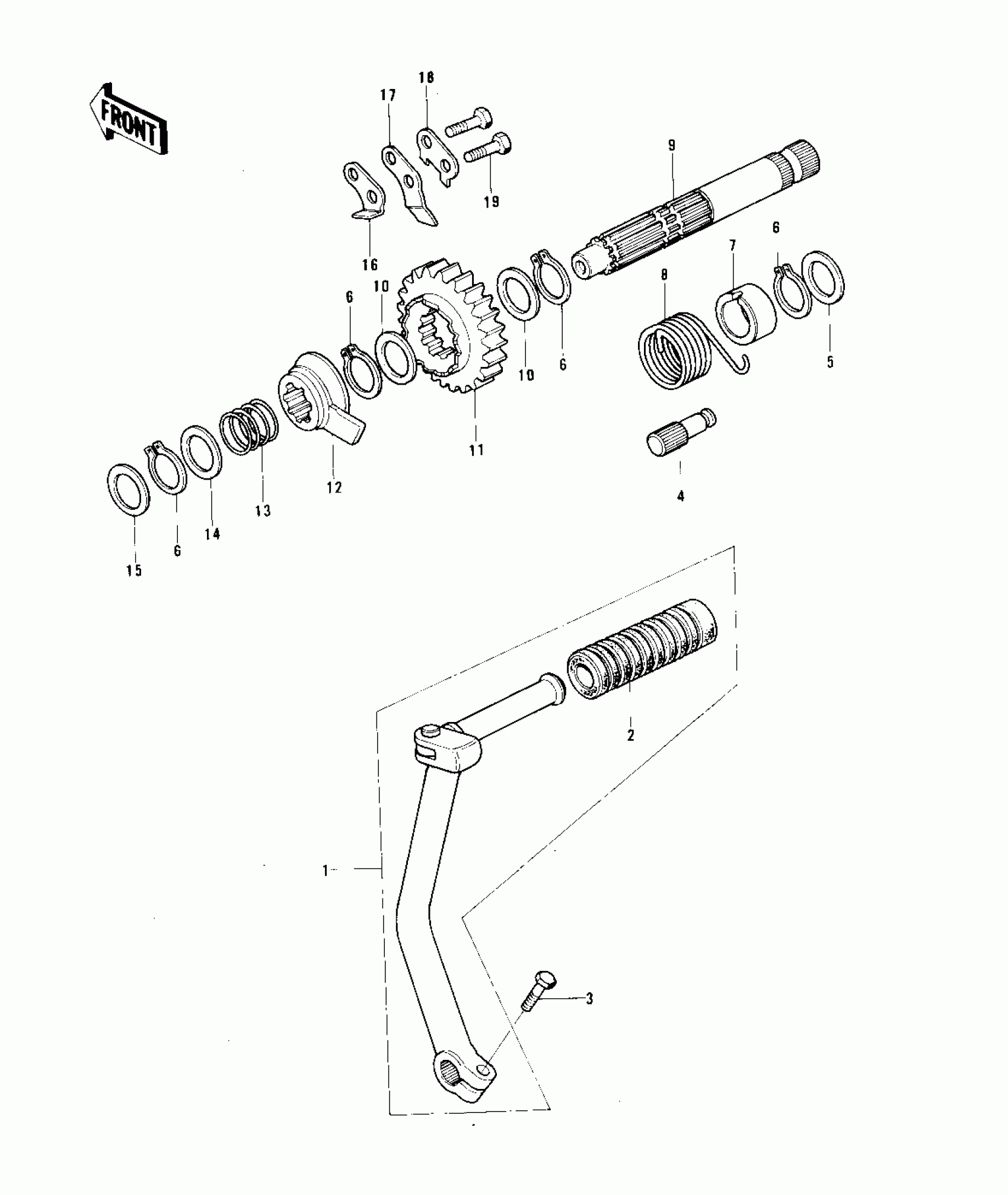

Kawasaki KE125 KICKSTARTER MECHANISM ('76-'79) Diagram

#

Description
Price

1

PEDAL,KICKSTARTER

13064-019

Unavailable

2

DAMPER,PEDAL

13063-002

$3.58

3

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

4

PIN

92043-102

Unavailable

5

WASHER,PLAIN

92022-268

Unavailable

6

CIRCLIP-TYPE-C,16MM

480J1600

$3.43

7

GUIDE,KICKSPRING

13070-008

Unavailable

8

SPRING,KICKSTARTER

92082-005

Unavailable

9

SHAFT,KICKSTARTER

13066-1012

Unavailable

10

WASHER,16.8X22X0.5

92022-315

$4.93

10

WASHER,16.8X22X0.5

92022-315

$4.93

11

GEAR,KICKSTARTER

13068-032

Unavailable

12

RATCHET

13078-1052

$67.80

13

SPRING,RATCHET

92081-122

$6.98

14

WASHER,16.8X22X0.5

92022-315

$4.93

14

WASHER,16.8X22X0.5

92022-315

$4.93

15

WASHER,12.3X20X0.5

92022-269

$1.14

16

STOPPER,KICKSTARTER

32085-1061

$5.36

17

GUIDE,KICKSTARTER

13206-010

Unavailable

18

WASHER,LOCK

92024-054

$2.53

19

BOLT-UPSET

112G0618

Unavailable
