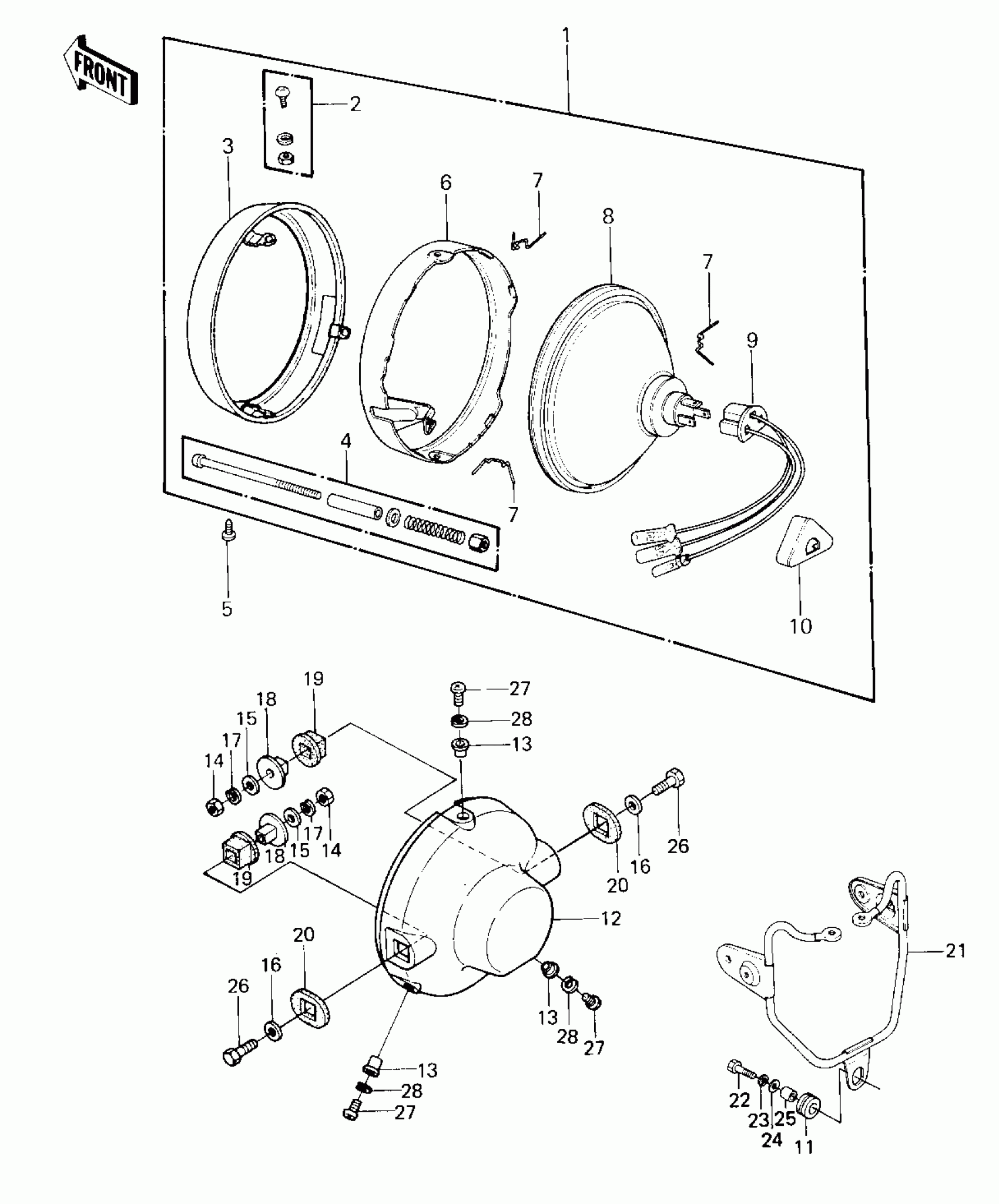

Kawasaki KE125 HEADLIGHT ('80-'81 A7/A8) Diagram

#

Description
Price

1

LAMP-HEAD

23004-1030

$235.91

2

SCREW SET,LENS UNIT

23013-007

$5.46

3

RIM-LAMP

23006-1004

$74.16

4

SCREW ASSY,FOCUS AJST

23013-5001

Unavailable

5

SCREW-PAN-CROS

220B0512

$0.51

6

RETAINER,SEALED BEAM

23072-002

$39.81

7

SPRING,HEAD LAMP LENS

23009-015

$4.78

8

LENS-COMP,"4020" MARK

23007-055

Unavailable

9

SOCKET-ASSY,HEAD LAMP

23008-044

$20.90

9

SOCKET-ASSY,HEAD LAMP

23008-044

$20.90

10

COVER,HEAD LAMP SOCKET

23081-001

$7.92

11

DAMPER RUBBER,RR FENR

92075-209

$3.72

12

BODY-COMP-HEAD LAMP,BLACK

23005-1007-6Z

Unavailable

13

WASHER

23021-010

$3.43

14

NUT-HEX-SMALL,8MM

317B0800

Unavailable

15

WASHER PLAIN 8MM

411B0800

Unavailable

16

WASHER-PLAIN,8MM

411D0800

$2.49

17

WASHER SPRING 8MM

461F0800

Unavailable

18

COLLAR,L=15.6

92027-1105

$7.49

19

DAMPER,HEAD LAMP

92075-1077

$7.14

20

DAMPER,HEAD LAMP

92075-1078

$4.92

21

BRACKET,HEAD LMP BODY

11034-1701

Unavailable

22

BOLT-UPSET

112G0625

Unavailable

23

WASHER SPRING 6MM

461F0600

Unavailable

24

WASHER,6.5X20X1.6

92022-125

$1.25

25

COLLAR

92027-241

$5.21

26

BOLT-SMALL,8X32

114N0832

Unavailable

27

SCREW-PAN-CROS

220B0512

$0.51

28

WASHER SPRING 5MM

461F0500

Unavailable
