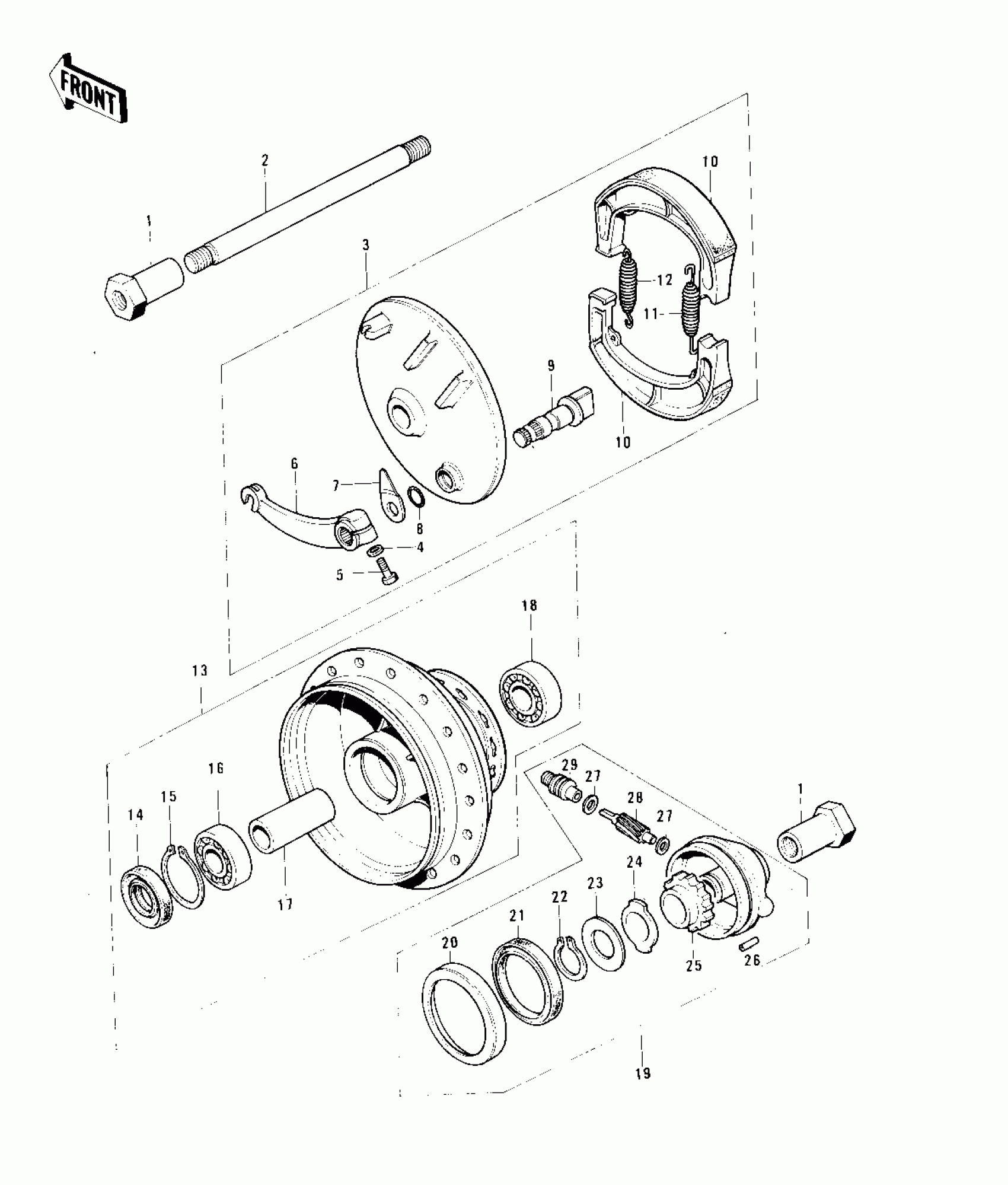

Kawasaki KE125 FRONT HUB/BRAKE ('76-'79) Diagram

#

Description
Price

1

COLLAR,FRONT AXLE

41069-024

Unavailable

2

AXLE,FRONT

41068-043

Unavailable

3

PANEL ASY,FR BK,BUFF

41035-049-80

$191.72

3

PANEL-ASY,FR BRK BUFF

41035-076-80

$222.91

4

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

5

BOLT 6X22

112B0622

Unavailable

6

LEVER,FRNT BRAKE CAM

41053-020

Unavailable

7

INDICATOR,BRAKE SHOE

41085-002

$13.20

8

RING-O,BRAKE CAM

92055-004

$4.25

9

CAM SHAFT,FRONT BRAKE

41050-012

$18.31

10

SHOE,BRAKE

41048-015

Unavailable

11

SPRING,BRAKE SHOE

92081-1766

$6.39

12

SPRING,BRAKE SHOE

92081-1550

$9.20

13

DRUM-ASSY,FR BRK,BUFF

41034-031-80

$205.49

14

OIL SEAL,FR BK DRUM

92050-059

$19.25

15

CIRCLIP-TYPE-C,37MM

481J3700

$2.37

16

BEARING BALL #6301

601B6301

Unavailable

17

SPACER,FR HUB BEARING

41039-025

$15.76

18

BEARING-BALL,#6201C3

601B6201

$10.56

19

CASE ASSY,SPEED GEAR

41078-009

$112.26

20

DUST COVER

41042-013

Unavailable

21

OIL SEAL

654A405208

Unavailable

22

CIRCLIP-TYPE-C,19MM

480J1900

$1.14

23

WASHER,19.5X26X0.8

41065-004

Unavailable

24

RECEIVER,SPEED GEAR

41064-011

$5.25

25

GEAR,SPEEDOMETER

41059-024

$37.43

26

PIN,SPRING

41082-001

$3.53

27

WASHER,5.1X9X0.4

41063-001

$4.17

28

GEAR-METER SCREW,8T

41060-015

Unavailable

29

BUSHING,SPEEDOMETER CABLE

41062-005

$18.66
