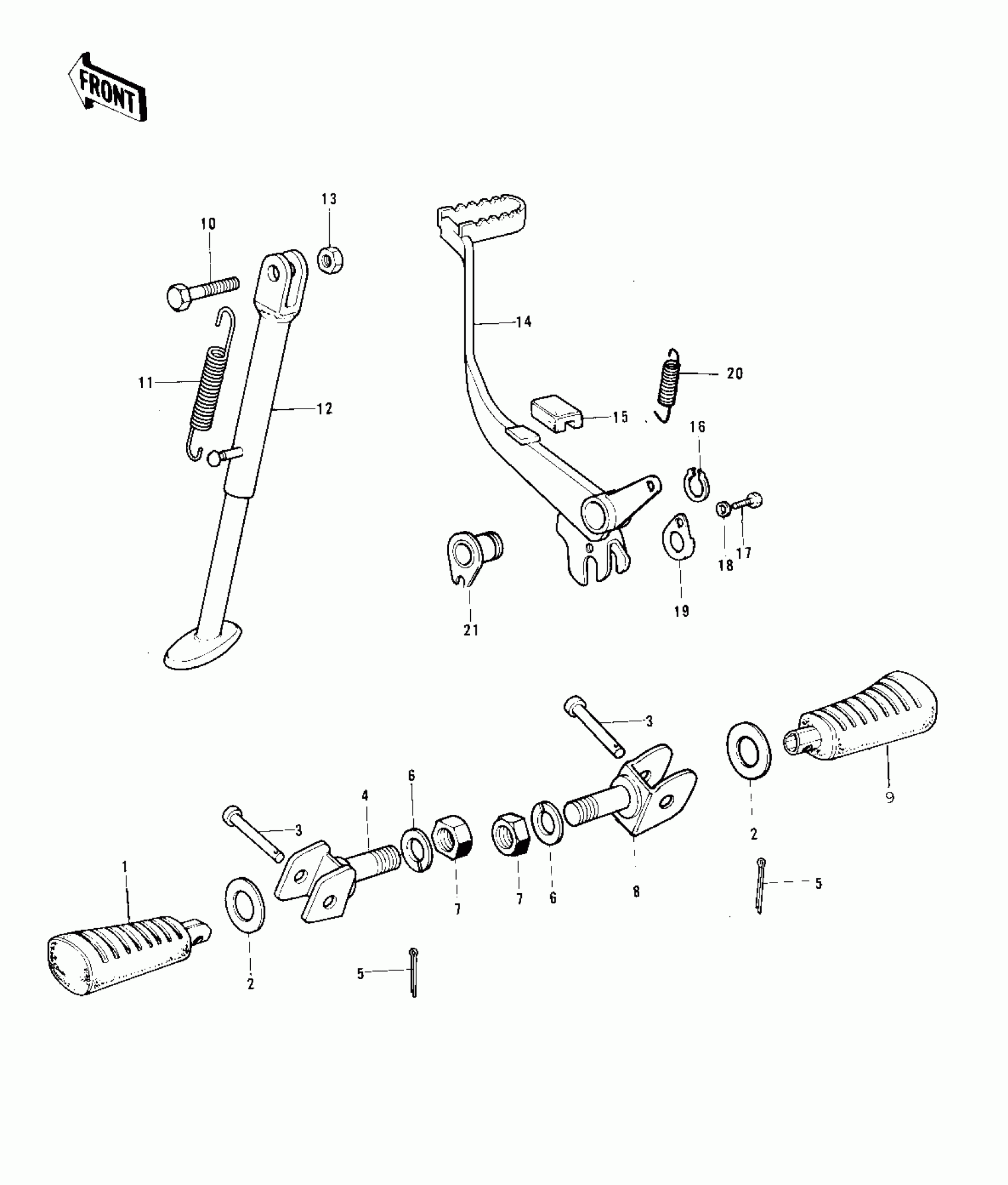

Kawasaki KE125 FOOTRESTS/STAND/BRAKE PEDAL ('76-'79) Diagram

#

Description
Price

1

STEP-ASSY,FR,LH

34027-1114

Unavailable

2

WASHER,25X36X2.3

92022-250

$3.97

3

PIN,8X31

92043-080

$5.03

4

BRACKET,FOTRST BAR,LH

34003-051

$52.53

5

PIN COTTER 2.5X16

550D2516

Unavailable

6

WASHER SPRING 14MM

461F1400

Unavailable

7

NUT,14MM

314B1400

Unavailable

8

BRACKET,FOTRST BAR,RH

34003-052

$52.59

9

STEP-ASSY,FR,RH

34027-1115

Unavailable

10

BOLT,HEX HEAD 10X35

92001-1252

Unavailable

11

SPRING,STAND

34025-008

$7.44

12

STAND-SIDE

34024-1043

Unavailable

13

NUT-HEX-FINE,10MM

314B1000

Unavailable

14

PEDAL,BRAKE

43001-058

Unavailable

15

DAMPER RUBBER,BK PDL

92075-220

Unavailable

16

CIRCLIP-TYPE-C,22MM

480J2200

$3.97

1

SCREW PAN HEAD 5X8

220B0508

Unavailable

18

WASHER SPRING 5MM

461F0500

Unavailable

19

PLATE

43081-002

Unavailable

20

SPRING BRAKE PEDAL

43005-032

Unavailable

21

COLLAR,BRAKE PEDAL

92027-210

$38.23
