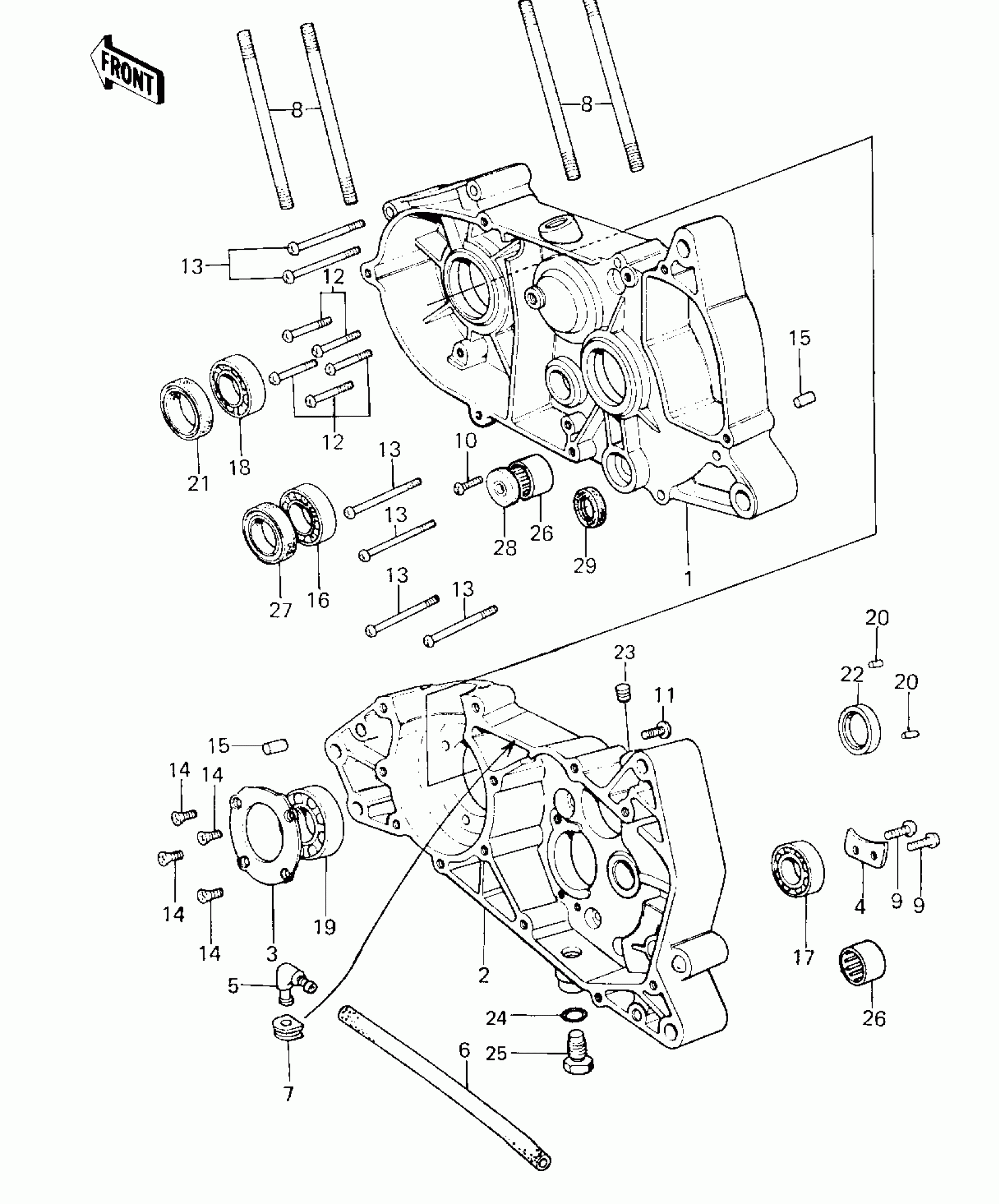

Kawasaki KE125 CRANKCASE ('80-'81 A7/A8) Diagram

#

Description
Price

1

SET-CRANKCASE,F.BLACK

14001-5138

Unavailable

2

SET-CRANKCASE,F.BLACK

14001-5138

Unavailable

3

PLATE,CRANK BEARING

14014-028

Unavailable

4

PLATE,MISSION BERNG

14014-029

Unavailable

5

BREATHER ASSY

14069-1001

$22.77

6

BREATHER ASSY

14069-1001

$22.77

7

GROMMET,BREATHER

92071-042

$3.39

8

STUD,8X70

172G0870

Unavailable

9

SCREW PAN HEAD 6X12

220B0612

Unavailable

10

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.61

11

SCREW PAN HEAD 6X25

220B0625

Unavailable

12

SCREW PAN HEAD 6X40

220B0640

Unavailable

13

SCREW-PAN-CROS,6X60

220B0660

Unavailable

14

SCREW-CSK-CROS,6X16

221B0616

$0.63

15

PIN,DOWEL,10X14

92043-1037

$0.76

16

BEARING-BALL,#6004C3

601B6004

$9.84

17

BEARING-BALL,#6203C3

601B6203

$11.12

18

BEARING-BALL,#6204C3

601B6204

$10.76

19

BEARING BALL #6304

601B6304

$37.55

20

ROLLER,5X12

610A0512

$4.53

21

SEAL-OIL

92049-1240

$13.34

22

SEAL-OIL

92049-1250

$15.40

23

PLUG,15X19

92074-035

$5.97

24

GASKET,12.5X18X1,DRAIN PLUG

92065-073

$3.24

25

PLUG

92066-1240

Unavailable

26

BEARING-BALL,#6306

92045-037

$43.48

27

SEAL-OIL,SC25376

92050-013

$11.26

28

OIL SEAL,PUSH ROD

92050-058

Unavailable

29

SEAL-OIL,TB12205.5

92049-1271

$7.38
