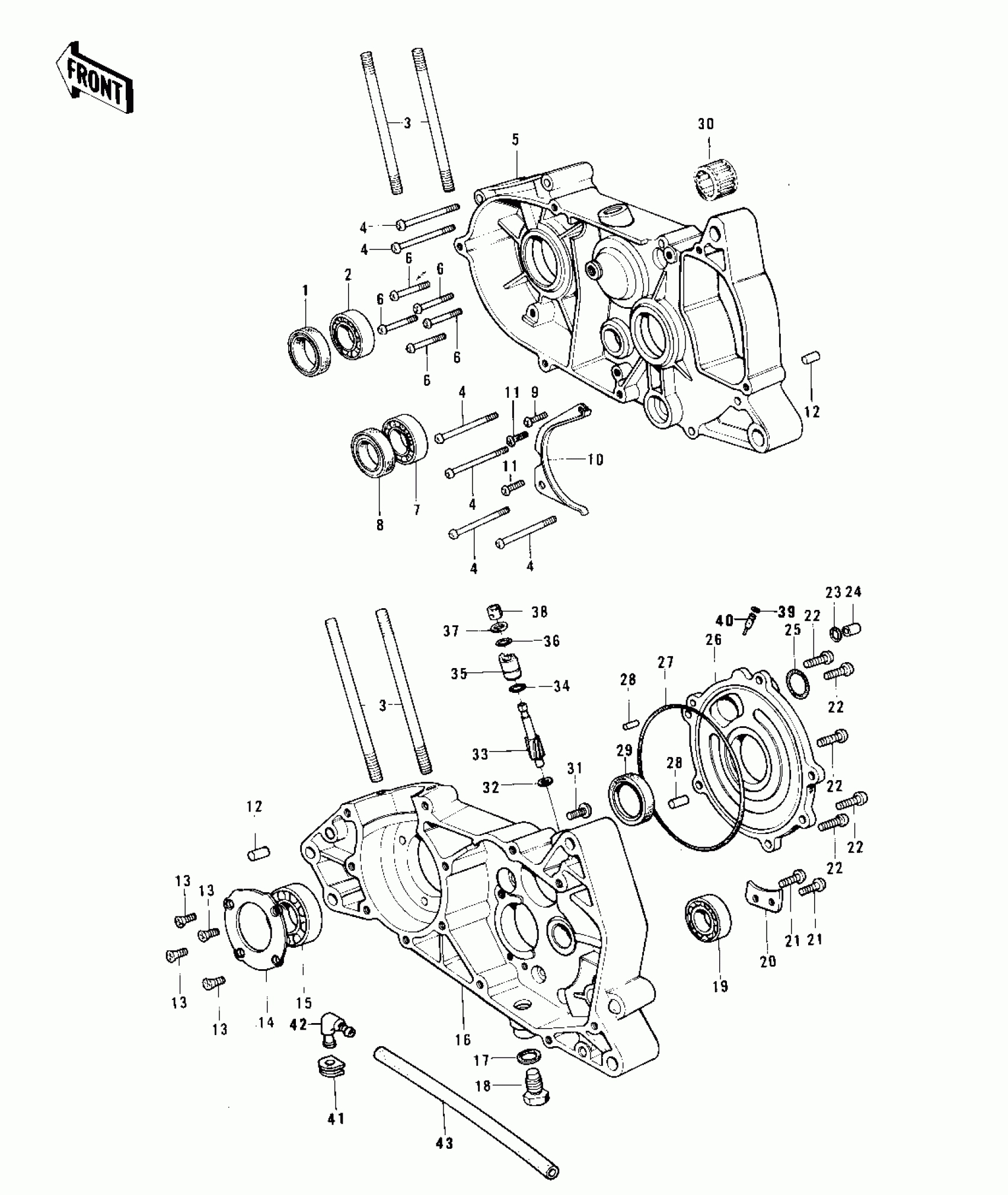

Kawasaki KE125 CRANKCASE ('76-'79) Diagram

#

Description
Price

1

SEAL-OIL

92049-1240

$13.34

2

BEARING-BALL,#6204C3

601B6204

$10.76

3

STUD,8X70

172G0870

Unavailable

4

SCREW PAN HEAD 6X80

220B0680

Unavailable

5

SET-CRANKCASE,F.BLACK

14001-5149

Unavailable

5

SET-CRANKCASE,F.BLACK

14001-5138

Unavailable

6

SCREW PAN HEAD 6X40

220B0640

Unavailable

7

BEARING-BALL,#6004C3

601B6004

$9.84

8

SEAL-OIL,SC25376

92050-013

$11.26

9

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.61

10

GUIDE,CHAIN

14077-003

Unavailable

11

SCREW PAN HEAD 6X12

220B0612

Unavailable

12

PIN,DOWEL,10X14

92043-1037

$0.76

12

PIN,DOWEL,10X8.2X14

552B1014

$0.76

13

SCREW-CSK-CROS,6X16

221B0616

$0.63

14

PLATE,CRANK BEARING

14014-028

Unavailable

15

BEARING BALL #6304

601B6304

$37.55

16

CRANKCASE,R.H.,BLACK

14002-1040-21

Unavailable

16

SET-CRANKCASE,F.BLACK

14001-5138

Unavailable

17

GASKET,12.5X18X1,DRAIN PLUG

92065-073

$3.24

18

PLUG

92066-1240

Unavailable

19

BEARING-BALL,#6203C3

601B6203

$11.12

20

PLATE,MISSION BERNG

14014-029

Unavailable

21

SCREW PAN HEAD 6X12

220B0612

Unavailable

22

SCREW-PAN-CROS

220B0520

$0.71

23

RING-O,7.8X3.5

92055-029

$3.65

24

PIN,DOWEL,8X16

92042-017

$5.10

24

PIN,DOWEL

92042-037

Unavailable

25

"O" RING,28MM

670B3028

Unavailable

26

COVER ASY,ROTARY VLV

14019-054

Unavailable

26

COVER,ROTARY DISC

14019-055

Unavailable

27

"O" RING,VALVE COVER

92055-057

Unavailable

28

ROLLER,5X12

610A0512

$4.53

29

SEAL-OIL

92049-1250

$15.40

30

BEARING,NEEDLE

92046-043

Unavailable

31

SCREW PAN HEAD 6X25

220B0625

Unavailable

32

SPACER,6.3X12X1.0

92026-094

$8.92

33

GEAR,TACHOMETER

13223-007

Unavailable

34

GASKET,FUEL TAP JOINT

11009-1567

$5.56

35

BUSHING

92028-136

$12.93

36

"O" RING

92055-060

$3.95

37

WASHER,PLAIN

92022-275

$4.64

38

BUSHING,TACHOMETER

92028-140

$6.98

39

"O" RING

92055-080

Unavailable

40

NOZZLE

92062-012

$13.07

41

GROMMET,BREATHER

92071-042

$3.39

42

BREATHER ASSY

14069-1001

$22.77

43

BREATHER ASSY

14069-1001

$22.77
