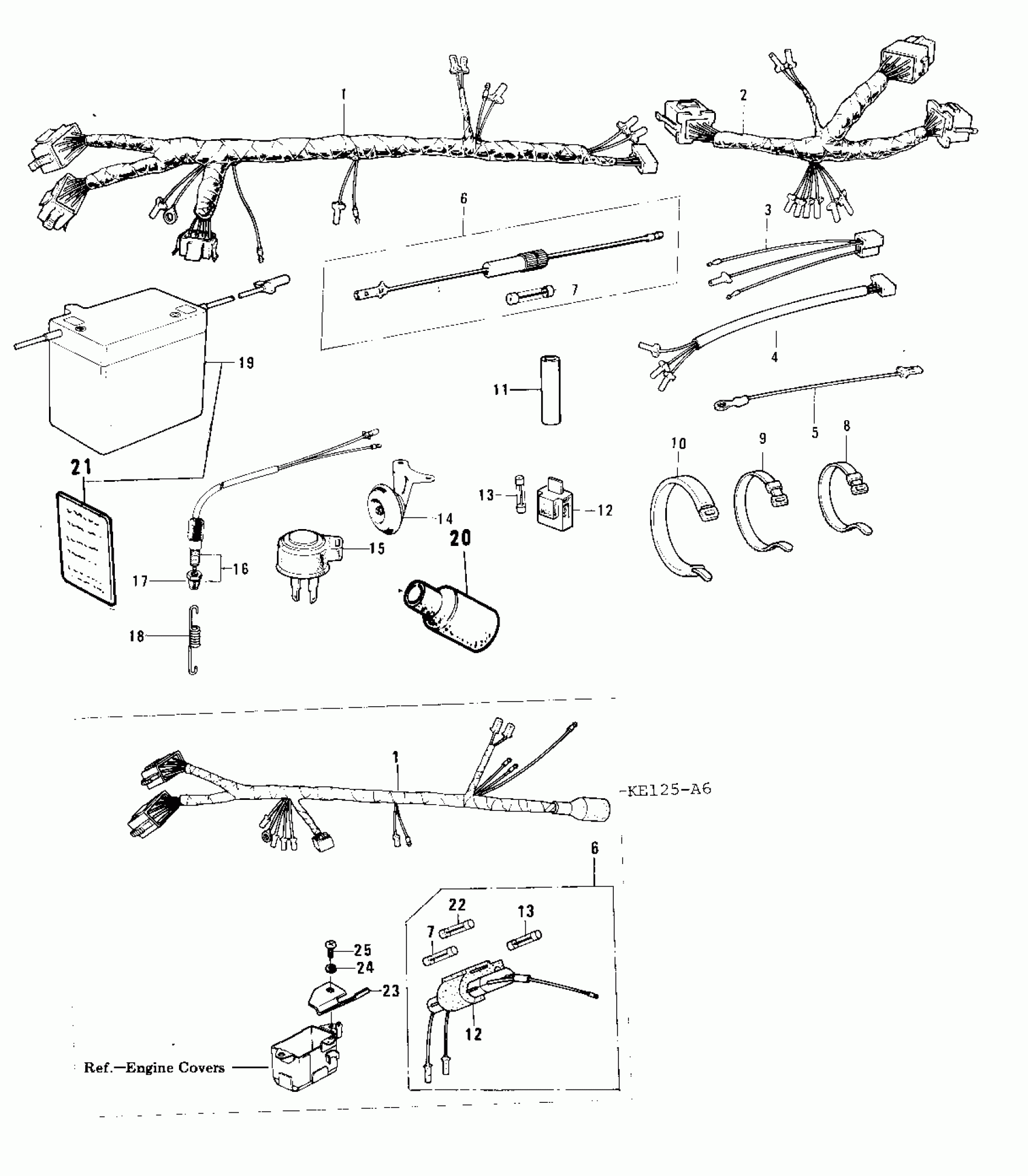

Kawasaki KE125 CHASSIS ELECTRICAL EQUIPMENT ('76-'79) Diagram

#

Description
Price

1

WIRING HARNESS,MAIN

26001-108

Unavailable

1

WIRING HARNESS,MAIN

26001-1070

$111.59

2

WIRING HARNESS,HDLMP

26002-045

Unavailable

3

WIRE,RECTIFIER LEAD

26011-072

Unavailable

4

WIRING HARNESS,TL LMP

26002-046

Unavailable

5

WIRE-LEAD

26011-093

Unavailable

6

FUSE ASSY

26004-025

Unavailable

6

FUSE-ASSY

26004-1010

Unavailable

7

FUSE 15A

26006-007

Unavailable

7

FUSE,BLADE,10A,RED

26006-1007

$3.94

8

BAND,L=123

92072-030

$3.97

9

BAND,L=218

92072-032

$3.97

10

BAND,WIRING HARNESS

92072-068

Unavailable

11

DAMPER RUBBER,HARNESS

92075-250

$1.78

12

HOLDER-SPARE FUSE

26016-004

Unavailable

12

DAMPER RUBBER

92075-1044

Unavailable

13

FUSE 15A

26006-007

Unavailable

13

FUSE,15A,L=30

26006-1003

$4.47

14

HORN

27003-044

$49.93

15

RELAY-ASSY,TURN SIGNAL

27002-013

Unavailable

16

SWITCH,BRAKE LAMP

27010-025

$27.60

17

NUT,BRAKE LAMP SWITCH

27037-001

$27.60

18

SPRING,BRAKE LAMP SWITCH

27011-006

$4.34

19

YUA BAT 6N6-1D-2

K26012-034

$46.27

19

YUA BAT 6N6-1D-2

K26012-034

$46.27

20

COVER,WIRING HARNESS

26009-008

$5.51

21

LABEL-WARNING,BATTERY

56040-1036

Unavailable

22

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$4.05

23

BRACKET,FUSE

11034-1368

Unavailable

24

WASHER SPRING 5MM

461F0500

Unavailable

25

SCREW PAN HEAD 5X10

220B0510

Unavailable
