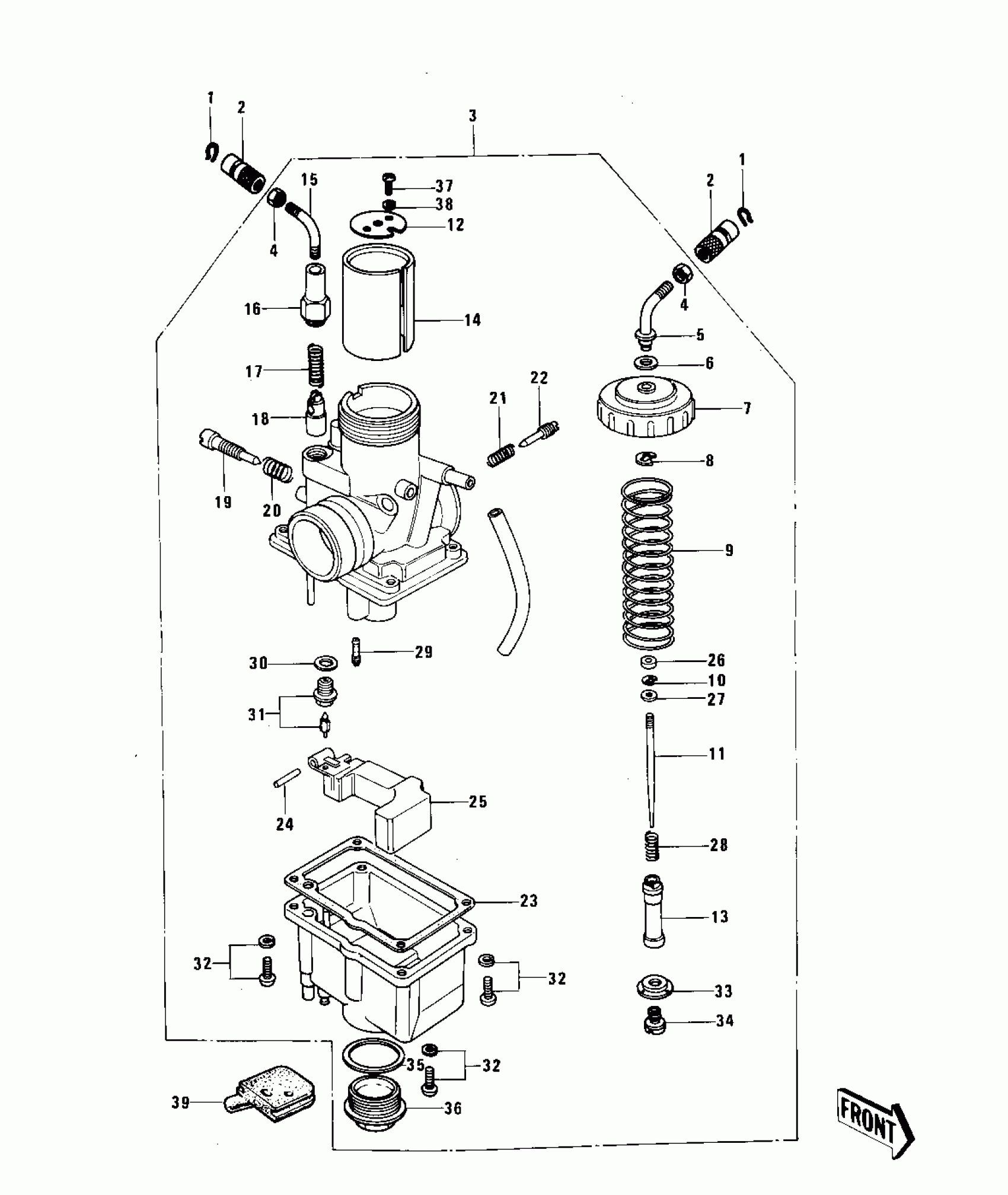

Kawasaki KE125 CARBURETOR (KE125-A6) Diagram

#

Description
Price

1

RING-SNAP

92036-018

$3.10

2

CABLE ADJUSTER

16002-007

Unavailable

3

CARBURETOR ASSY

16001-1038

Unavailable

4

NUT,CABLE ADJUST LOCK

16003-004

$7.53

5

GUIDE,CABLE

16077-011

$19.10

6

GASKET,CABLE GUIDE

16029-007

$10.02

7

CAP,MIXING CHAMBER

16004-024

$14.78

8

CLAMP,CABLE GUIDE

16008-011

Unavailable

9

SPRING,THROTTLE VALV

16006-024

$10.58

10

CLAMP,E-TYPE

16008-010

$8.95

11

JET NEEDLE,SEL17-3

16009-1019

$13.29

12

PLATE,THROTTLE VALVE

13169-1123

Unavailable

13

NEEDLE JET,#A0-0

16017-1025

$20.36

14

VALVE,THROTTLE,CA2.5

16025-1018

$64.15

15

GUIDE,CABLE

16077-010

$20.20

16

CAP,STARTER PLUNGER

16012-017

Unavailable

17

SPRING-PLUNGER

16013-003

$4.36

18

PLUNGER,STARTER

16016-002

$33.31

19

SCREW,THROTTLE STOP

16021-023

Unavailable

20

SPRING,THROTTLE STOP SCREW

16022-005

Unavailable

21

SPRING,PILOT AIR SCREW

16022-007

$7.97

22

SCREW-PILOT AIR

16014-002

Unavailable

23

GASKET,FLOAT CHAMBER

16019-023

Unavailable

24

FLOAT PIN

16032-006

$7.49

25

FLOAT

16031-026

Unavailable

26

COLLAR,THROTTLE VALVE

92027-1103

$7.53

27

WASHER,THROTTLE VALVE

92022-1024

$5.47

28

SPRING,JET NEEDLE

92081-1072

Unavailable

29

PILOT JET,#A25

92064-1020

$18.08

30

WASHER FLOAT VLV SEAT

16029-004

$3.10

31

FLOAT VALVE ASSY

16030-024

Unavailable

32

SCREW-PAN-WS-CROS

223B0414

$1.34

33

RING,MAIN JET

16008-012

$22.81

34

JET-MAIN,#A95R

92063-1031

$13.63

35

GASKET,MAIN JET COVER

16034-008

$5.75

36

BOLT,BANJO

92001-146

$16.14

37

SCREW-PAN-CROS,3X8

220B0308

$0.63

38

WASHER SPRING 3MM

461F0300

Unavailable

39

GROMMET,OVERFLOW

16136-009

Unavailable
