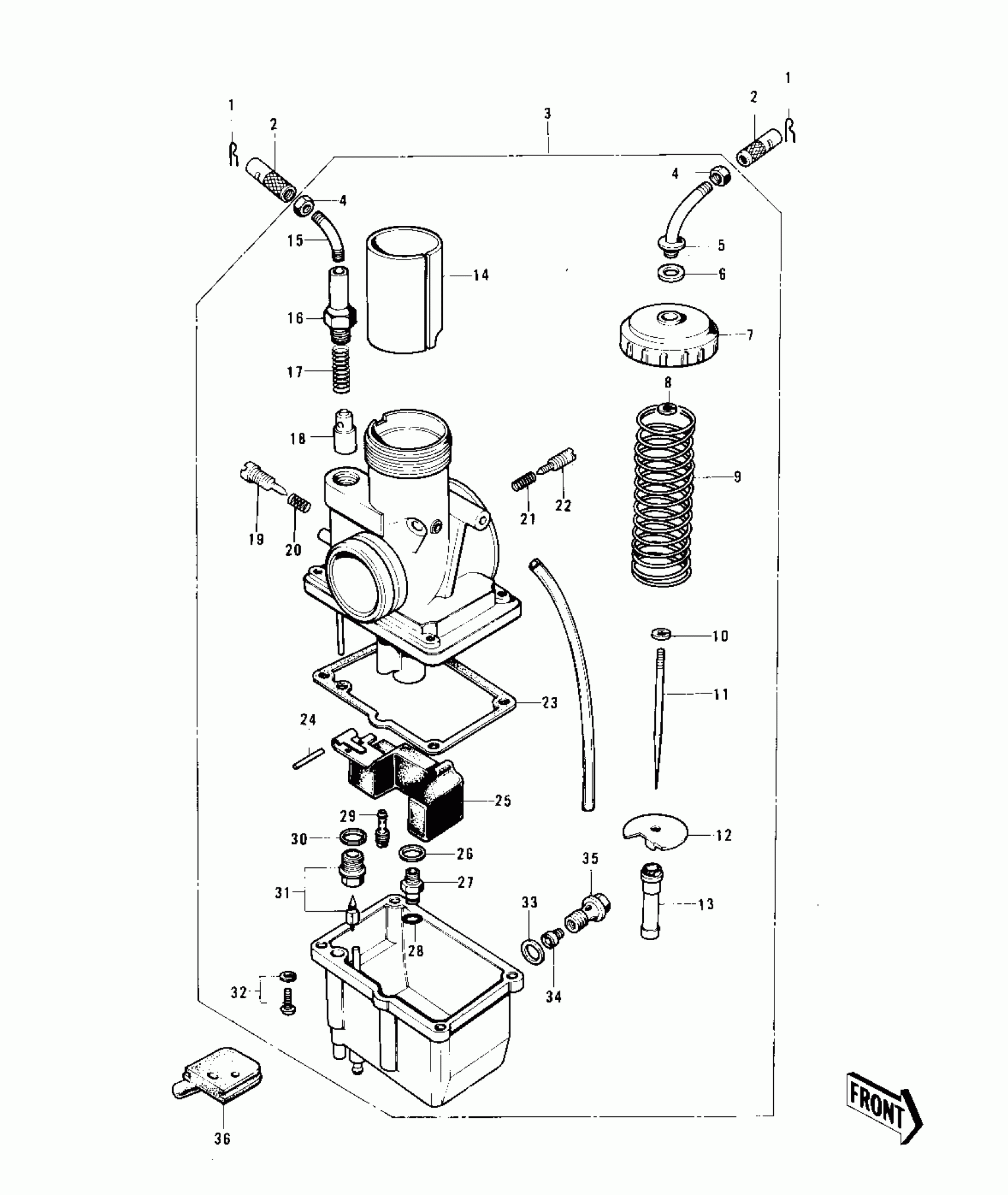

Kawasaki KE125 CARBURETOR (KE125-A3/A4/A5) Diagram

#

Description
Price

1

RING-SNAP

92036-018

$3.10

2

CABLE ADJUSTER

16002-007

Unavailable

3

CARBURETOR ASSY

16001-199

Unavailable

4

NUT,CABLE ADJUST LOCK

16003-004

$7.53

5

GUIDE,CABLE

16077-011

$19.10

6

GASKET,CABLE GUIDE

16029-007

$10.02

7

CAP,MIXING CHAMBER

16004-024

$14.78

8

CLAMP,CABLE GUIDE

16008-011

Unavailable

9

SPRING,THROTTLE VALVE

16006-029

$24.58

10

CLAMP,E-TYPE

16008-010

$8.95

11

JET NEEDLE 4EJ3

16009-040

Unavailable

12

SEAT-SPRING,THROTTLE VALVE

16007-023

$9.85

13

NEEDLE JET,O-4

16017-085

$34.00

14

VALVE,THROTTLE

16025-079

$70.73

15

GUIDE,CABLE

16077-010

$20.20

16

CAP,STARTER PLUNGER

16012-017

Unavailable

17

SPRING-PLUNGER

16013-003

$4.36

18

PLUNGER,STARTER

16016-002

$33.31

19

SCREW,THROTTLE STOP

16021-023

Unavailable

20

SPRING,THROTTLE STOP SCREW

16022-005

Unavailable

21

SPRING,PILOT AIR SCREW

16022-007

$7.97

22

SCREW-PILOT AIR

16014-002

Unavailable

23

GASKET,FLOAT CHAMBER

16019-023

Unavailable

24

FLOAT PIN

16032-006

$7.49

25

FLOAT

16031-026

Unavailable

26

WASHER,MAIN JET

16034-001

$3.57

27

HOLDER-NEEDLE JET

16065-008

$22.19

28

RING-O

92055-044

$8.24

29

JET-PILOT,#30

92064-022

$15.97

30

WASHER FLOAT VLV SEAT

16029-004

$3.10

31

FLOAT VALVE ASSY,#2.6

16030-025

$127.69

32

SCREW-PAN-WS-CROS

223B0414

$1.34

33

GASKET-BANJO BOLT

16034-005

Unavailable

34

MAIN JET,#A100

92063-1033

$25.14

35

BOLT-BANJO

92001-097

Unavailable

36

GROMMET,OVERFLOW

16136-009

Unavailable
