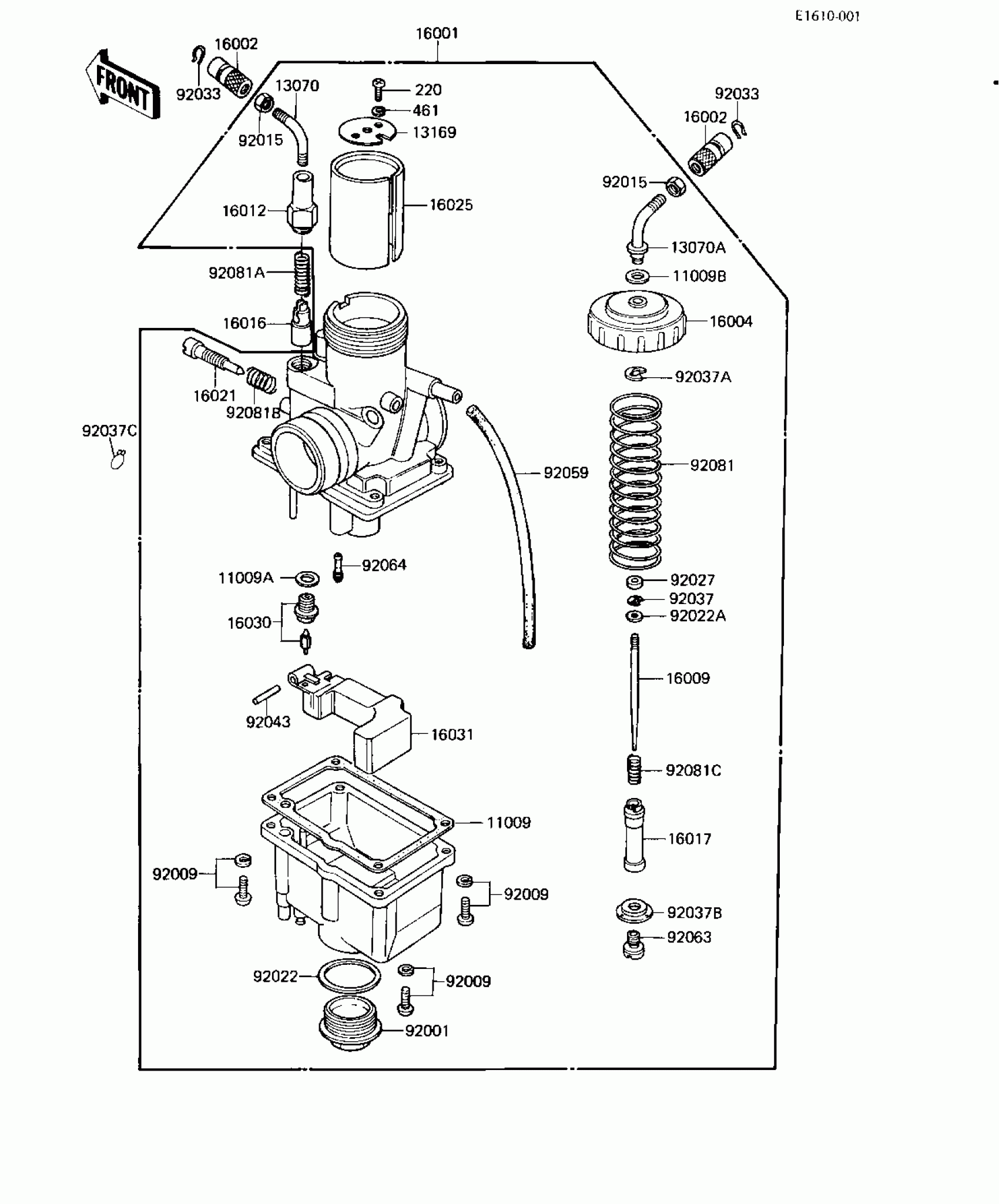

Kawasaki KE125 CARBURETOR ('82-'83 A9/A10) Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

16019-023

Unavailable

11009A

WASHER FLOAT VLV SEAT

16029-004

$2.97

11009B

GASKET,CABLE GUIDE

16029-007

$10.02

13070

GUIDE,CABLE

16077-010

$20.20

13070A

GUIDE,CABLE

16077-011

$19.10

13169

PLATE,THROTTLE VALVE

13169-1123

Unavailable

16001

CARBURETOR ASSY

16001-1243

Unavailable

16002

CABLE ADJUSTER

16002-007

$10.92

16004

CAP,MIXING CHAMBER

16004-024

$14.78

16009

JET NEEDLE,5EL24

16009-1066

$38.12

16012

CAP,STARTER PLUNGER

16012-017

Unavailable

16016

PLUNGER,STARTER

16016-002

$33.31

16017

NEEDLE JET,AO-0

16017-1062

$43.06

16021

SCREW,THROTTLE STOP

16021-023

Unavailable

16025

VALVE,THROTTLE,CA2.5

16025-1018

$64.15

16030

FLOAT VALVE ASSY

16030-024

Unavailable

16031

FLOAT

16031-026

Unavailable

92001

BOLT,BANJO

92001-146

$16.14

92009

SCREW-PAN-WS-CROS

223B0414

$1.16

92015

NUT,CABLE ADJUST LOCK

16003-004

$7.53

92022

GASKET,MAIN JET COVER

16034-008

$5.75

92022A

WASHER,THROTTLE VALVE

92022-1024

$5.25

92027

COLLAR,THROTTLE VALVE

92027-1103

$7.53

92033

RING-SNAP

92036-018

$2.97

92037

CLAMP,E-TYPE

16008-010

$7.02

92037A

CLAMP,CABLE GUIDE

16008-011

Unavailable

92037B

RING,MAIN JET

16008-012

$22.81

92037C

CLAMP,TUBE

92037-010

$2.99

92043

FLOAT PIN

16032-006

$7.49

92059

TUBE,CARB BREATHER

92059-1011

$10.37

92063

JET-MAIN,#A92.5R

92063-1085

Unavailable

92064

PILOT JET,#A25

92064-1020

$18.08

92081

SPRING,THROTTLE VALV

16006-024

$10.58

92081A

SPRING-PLUNGER

16013-003

$4.18

92081B

SPRING,THROTTLE STOP SCREW

16022-005

$8.66

92081C

SPRING,JET NEEDLE

92081-1072

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

461

WASHER SPRING 3MM

461F0300

Unavailable
