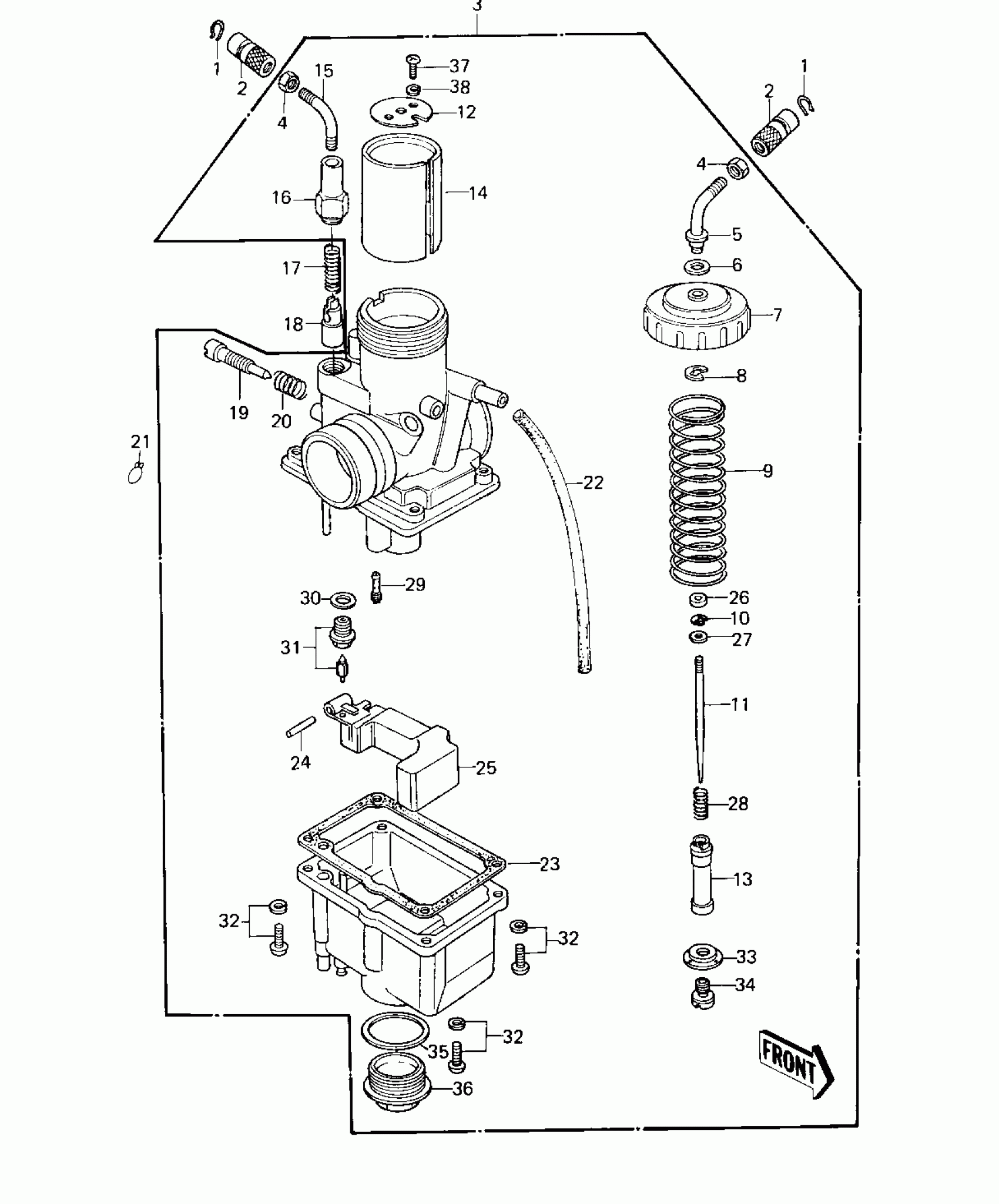

Kawasaki KE125 CARBURETOR ('80-'81 A7/A8) Diagram

#

Description
Price

1

RING-SNAP

92036-018

$3.10

2

CABLE ADJUSTER

16002-007

Unavailable

3

CARBURETOR ASSY

16001-1243

Unavailable

4

NUT,CABLE ADJUST LOCK

16003-004

$7.53

5

GUIDE,CABLE

16077-011

$19.10

6

GASKET,CABLE GUIDE

16029-007

$10.02

7

CAP,MIXING CHAMBER

16004-024

$14.78

8

CLAMP,CABLE GUIDE

16008-011

Unavailable

9

SPRING,THROTTLE VALV

16006-024

$10.58

10

CLAMP,E-TYPE

16008-010

$8.95

11

JET NEEDLE,5EL24

16009-1066

$38.12

12

PLATE,THROTTLE VALVE

13169-1123

Unavailable

13

NEEDLE JET,AO-0

16017-1062

$43.06

14

VALVE,THROTTLE,CA2.5

16025-1018

$64.15

15

GUIDE,CABLE

16077-010

$20.20

16

CAP,STARTER PLUNGER

16012-017

Unavailable

17

SPRING-PLUNGER

16013-003

$4.36

18

PLUNGER,STARTER

16016-002

$33.31

19

SCREW,THROTTLE STOP

16021-023

Unavailable

20

SPRING,THROTTLE STOP SCREW

16022-005

Unavailable

21

CLAMP,TUBE

92037-010

$3.12

22

TUBE,CARB BREATHER

92059-1011

$10.37

23

GASKET,FLOAT CHAMBER

16019-023

Unavailable

24

FLOAT PIN

16032-006

$7.49

25

FLOAT

16031-026

Unavailable

26

COLLAR,25.2X29.8X10.4

92027-1403

$10.93

27

WASHER,THROTTLE VALVE

92022-1024

$5.47

28

SPRING,JET NEEDLE

92081-1072

Unavailable

29

PILOT JET,#A25

92064-1020

$18.08

30

WASHER FLOAT VLV SEAT

16029-004

$3.10

31

FLOAT VALVE ASSY

16030-024

Unavailable

32

SCREW-PAN-WS-CROS

223B0414

$1.34

33

RING,MAIN JET

16008-012

$22.81

34

JET-MAIN,#A92.5R

92063-1085

Unavailable

35

GASKET,MAIN JET COVER

16034-008

$5.75

36

BOLT,BANJO

92001-146

$16.14

37

SCREW-PAN-CROS,3X8

220B0308

$0.63

38

WASHER SPRING 3MM

461F0300

Unavailable
