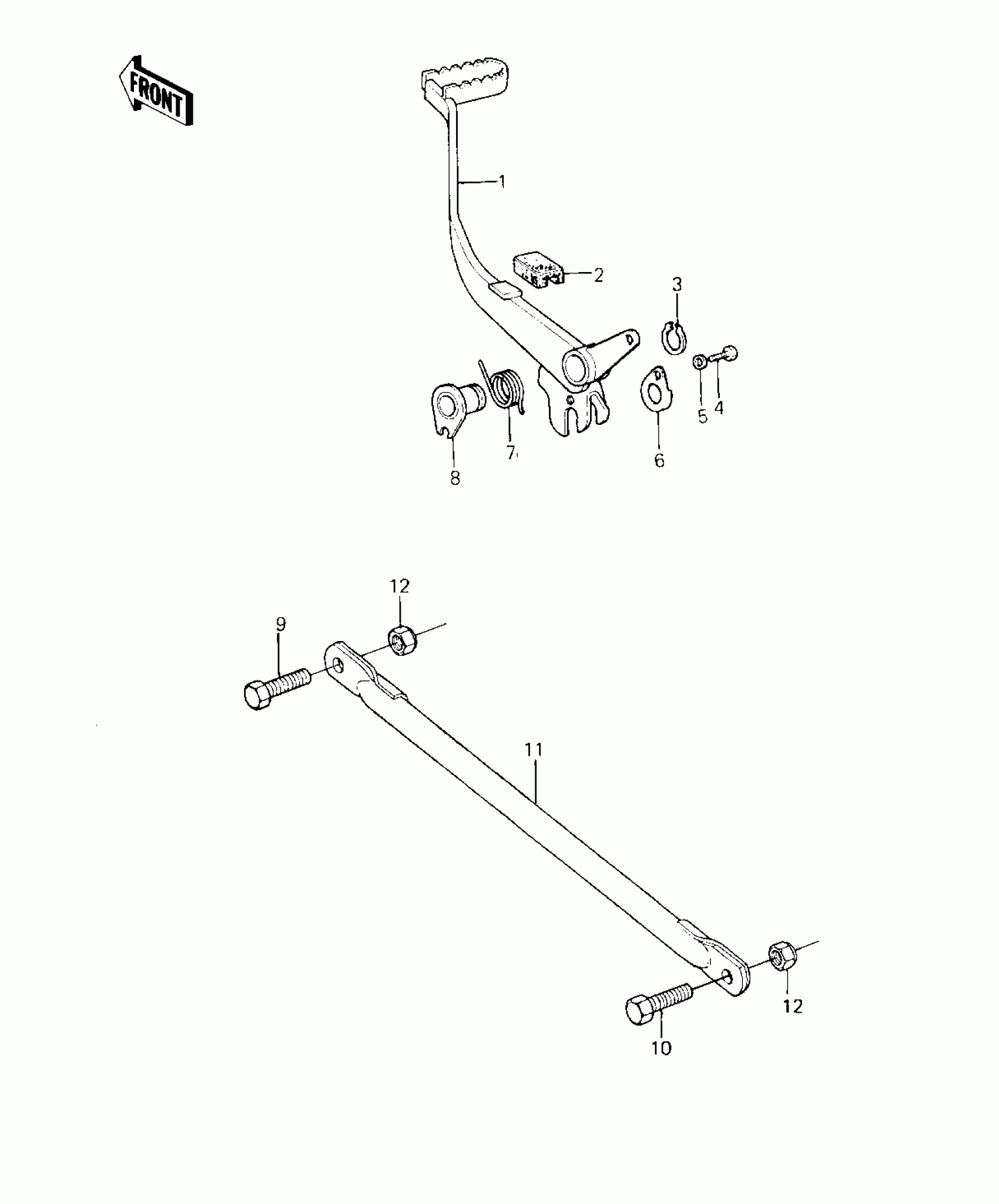

Kawasaki KE125 BRAKE PEDAL/TORQUE LINK ('80-'81 A7/A8) Diagram

#

Description

Price

1

PEDAL,BRAKE

43001-058

Unavailable

2

DAMPER RUBBER,BK PDL

92075-220

Unavailable

3

CIRCLIP-TYPE-C,22MM

480J2200

$3.97

4

SCREW PAN HEAD 5X8

220B0508

Unavailable

5

WASHER SPRING 5MM

461F0500

Unavailable

6

PLATE

43081-002

Unavailable

7

SPRING BRAKE PEDAL

43005-032

Unavailable

8

COLLAR,BRAKE PEDAL

92027-210

$38.23

9

BOLT,HEX HEAD,10X22

113G1022

Unavailable

10

BOLT,10X28

113G1028

Unavailable

11

TORQUE LINK,REAR BRAK

43007-048

$25.81

12

NUT,10MM

92019-016

Unavailable
