1986 Kawasaki KE100 Tailight Diagram

← All diagrams

Find the part on the Tailight diagram for your 1986 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

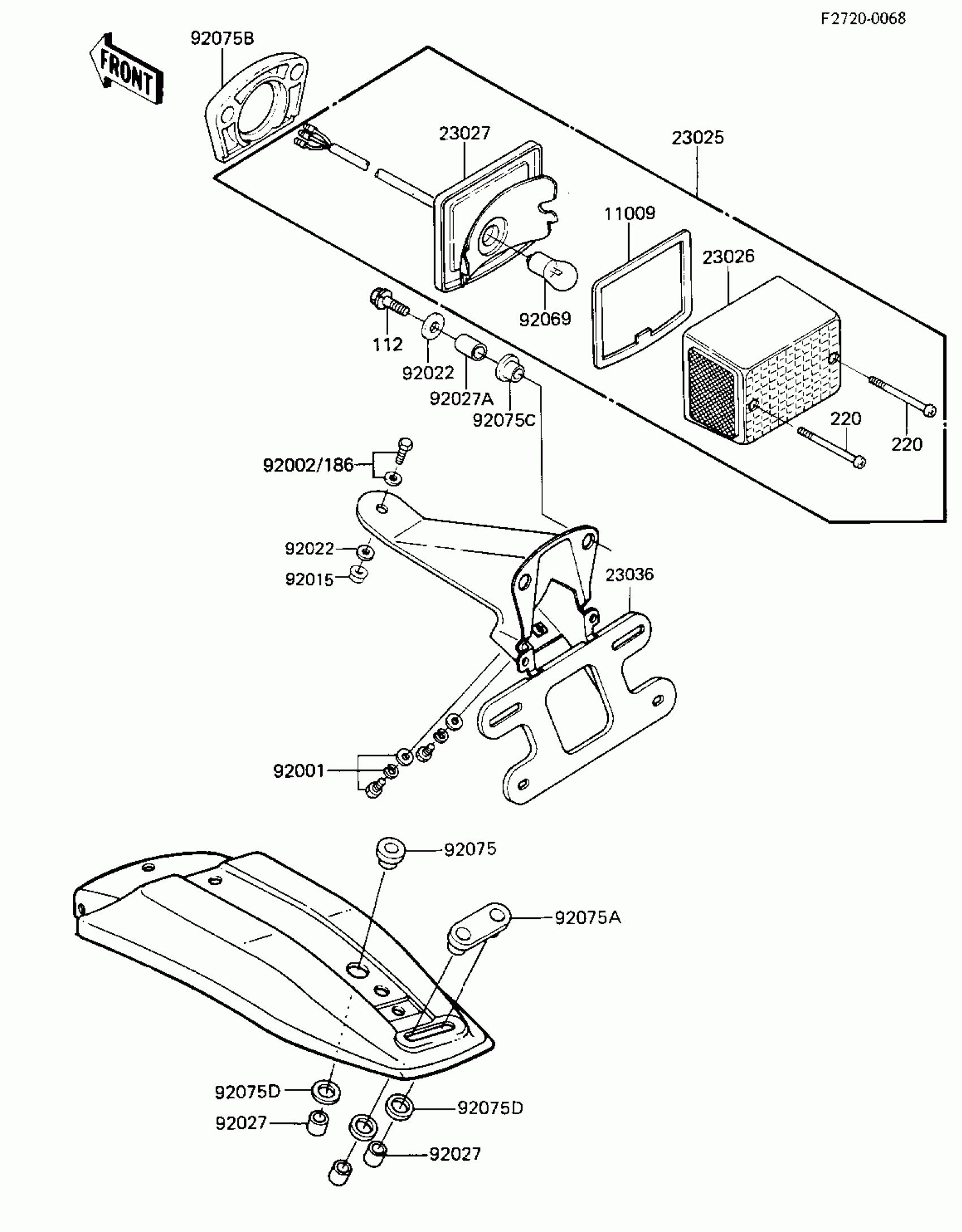

1986 Kawasaki KE100 Tailight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$7.44

In stock

23025

LAMP-TAIL

23025-1032

1
Out of stock

23026

LENS,TAIL LAMP

23026-1003

1
Out of stock

23027

BODY-COMP-TAIL LAMP

23027-1020

1

$96.26

In stock

23036

BRACKET-TAIL LAMP

23036-1010

1
Out of stock

92001

BOLT

92001-1768

1
Out of stock

92002

BOLT,6X28

92002-1125

1

$4.61

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR,6.8X10X14.5

92027-156

1

$3.97

In stock

92027A

COLLAR,6.1X8X15.7

92027-1819

1

$3.85

In stock

92069

BULB,6V 32/3CP

92069-074

1
Out of stock

92075

DAMPER,TAIL LAMP

92075-1004

1
Out of stock

92075A

DAMPER,TAIL LAMP

92075-1005

1
Out of stock

92075B

DAMPER,TAIL LAMP

92075-1094

1
Out of stock

92075C

DAMPER

92075-1095

1

$3.63

In stock

92075D

DAMPER,RUBBER

92075-310

1
Out of stock

112

BOLT-UPSET

112G0625

1
Out of stock

220

SCREW-PAN-CROS

220B0440

1
Out of stock
