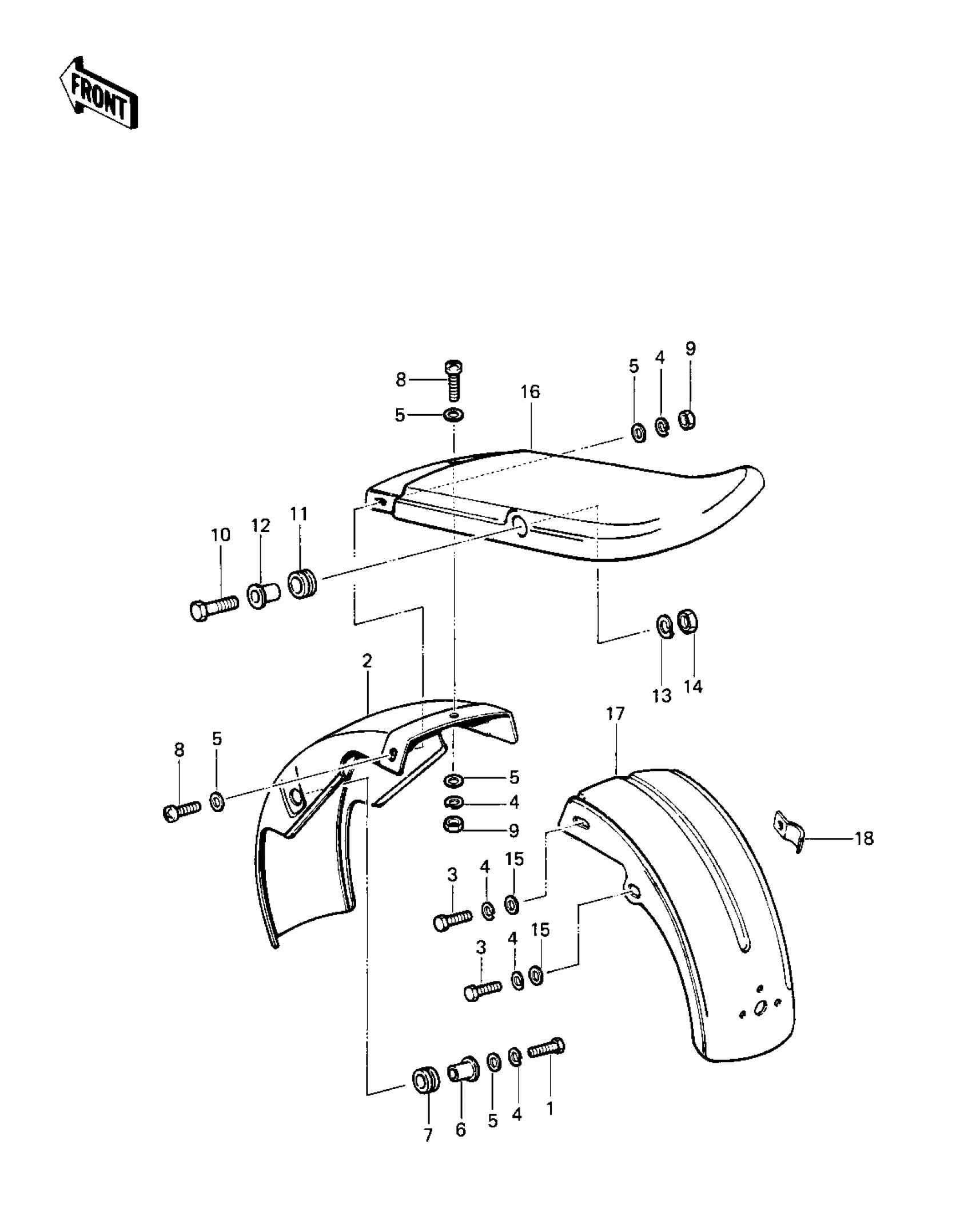

Kawasaki KE100 REAR FENDER Diagram

#

Description
Price

1

BOLT-UPSET,6X16

112G0616

Unavailable

2

FENDER-COMP-REAR,FR

35022-064

$43.81

3

BOLT-UPSET 6X14

112B0614

Unavailable

4

WASHER SPRING 6MM

461F0600

Unavailable

5

WASHER,6.5X20X1.6

92022-125

$1.25

6

COLLAR

92027-103

$2.78

7

DAMPER RUBBER

92075-105

$3.48

8

SCREW-PAN-CROS,6X14

220B0614

$1.32

9

NUT 6MM

312B0600

Unavailable

10

BOLT-HEX HEAD,10X46

92007-029

Unavailable

11

DAMPER

92075-104

Unavailable

12

COLLAR

92027-147

$12.02

13

WASHER SPRING 10MM

461F1000

Unavailable

14

NUT-HEX-FINE,10MM

314B1000

Unavailable

15

WASHER PLAIN 6MM

411B0600

Unavailable

16

COVER,RR.FEND,C.BLUE

53043-009-4C

$26.49

16

COVER,RR FEND,C.COPPR

53043-009-4D

Unavailable

16

COVER,RR FENDER,GRAY

53043-009-6Y

Unavailable

16

COVER,RR FENDER WHITE

53043-009-6V

$25.98

16

COVER,RR FEN,S.GREEN

53043-009-6P

$37.42

16

COVER,RR FEN,S.YELLOW

53043-009-6R

$33.07

16

COVER,REAR FENDER GRN (Canada)

53043-009-6J

Unavailable

16

COVER,REAR FENDER,RED

53043-009-6L

$43.73

16

COVER,REAR FENDER,BLU

53043-009-6K

Unavailable

17

FENDER-RR

35022-065

$62.20

18

CLAMP CABLE

92037-020

Unavailable
