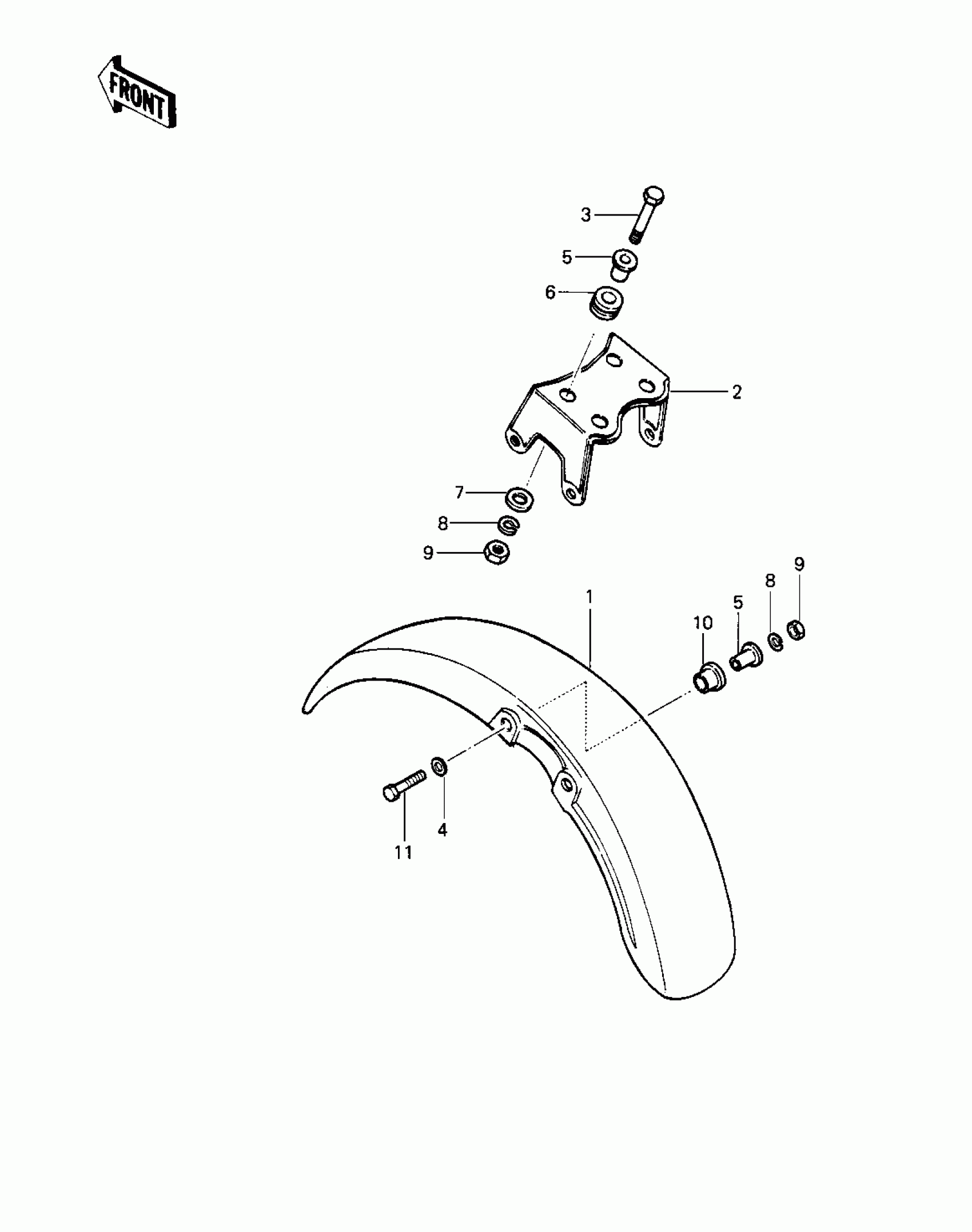

Kawasaki KE100 FRONT FENDER Diagram

#

Description
Price

1

FENDER-FR,C.BLUE

35004-082-4C

Unavailable

1

FENDER-FR,C.COPPER

35004-082-4D

$68.75

1

FENDER-FR,GRAY

35004-082-6Y

Unavailable

1

FENDER-FR,WHITE

35004-082-6V

Unavailable

1

FENDER-FR,S.GREEN

35004-082-6P

Unavailable

1

FENDER-FR,S.YELLOW

35004-082-6R

Unavailable

1

FENDER,FRONT,B.GREEN (Canada)

35004-082-6J

Unavailable

1

FENDER-FR,F.RED

35004-082-6L

$80.93

1

FENDER-FR,B.BLUE

35004-082-6K

Unavailable

2

BRACKET-FRONT FENDER

35012-018

$12.05

3

BOLT-UPSET

112G0630

Unavailable

4

WASHER PLAIN

92022-024

$2.92

4

WASHER PLAIN

92022-024

$2.92

5

COLLAR

92027-153

$4.93

6

DAMPER RUBBER

92075-051

$2.34

7

WASHER,6.5X20X1.6

92022-125

$1.25

8

WASHER SPRING 6MM

461F0600

Unavailable

9

NUT 6MM

311B0600

Unavailable

10

DAMPER RUBBER

92075-103

$3.49

11

BOLT HEX HEAD 6X18

110N0618

Unavailable
