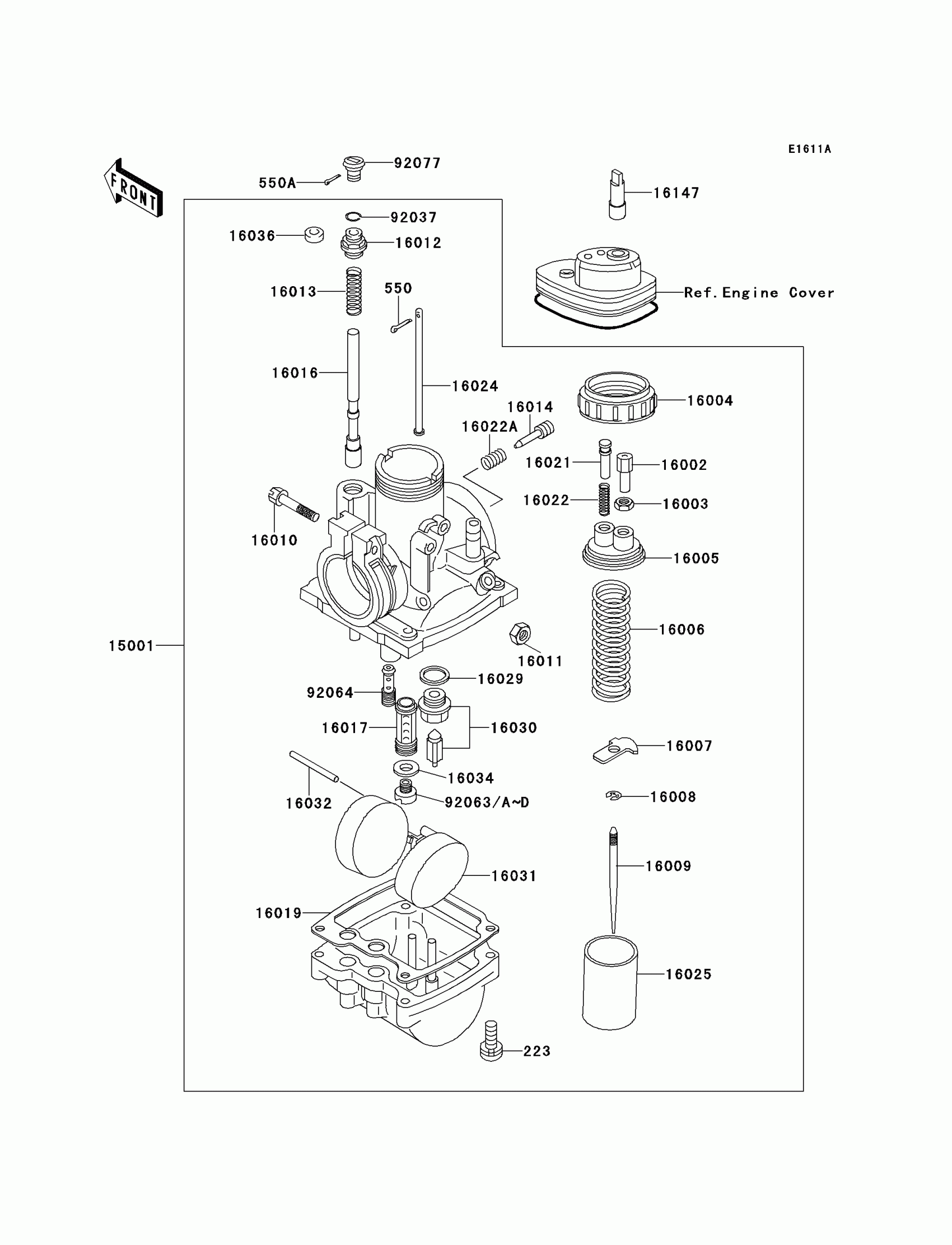

Kawasaki KE100 Carburetor(CN)(KE100-B16) Diagram

#

Description
Price

15001

CARBURETOR-ASSY

15001-1191

Unavailable

16002

ADJUSTER-CABLE

16002-017

Unavailable

16003

NUT,CABLE ADJUST LOCK

16003-004

$7.53

16004

CAP-CHAMBER,MIXING

16004-010

$19.83

16005

TOP-CHAMBER,MIXING

16005-005

$19.51

16006

SPRING,THROTTLE VALVE

16006-013

$14.22

16007

SEAT-SPRING,THROTTLE VALVE

16007-020

$10.54

16008

CLAMP,E-TYPE

16008-010

$8.95

16009

NEEDLE-JET,4EJ7

16009-059

$38.22

16010

SCREW,CLAMP

16010-004

$4.90

16011

NUT,6MM

16011-002

$0.93

16012

CAP-STARTER PLUNGER

16012-021

$15.07

16013

SPRING,STARTER PLUNGER

16013-010

Unavailable

16014

SCREW-PILOT AIR

16014-002

Unavailable

16016

PLUNGER,STARTER

16016-012

$41.12

16017

JET-NEEDLE,O-4

16017-081

$38.70

16019

GASKET,FLOAT CHAMBER

16019-021

$20.68

16021

SCREW-THROTTLE STOP

16021-002

$17.49

16022

SPRING,THROTTLE STOP SCREW

16022-005

Unavailable

16022A

SPRING,PILOT AIR SCREW

16022-007

$7.97

16024

ROD,THROTTLE VALVE STOP

16024-006

Unavailable

16025

VALVE-THROTTLE,CA2.0

16025-057

Unavailable

223

SCREW-PAN-WS-CROS

223B0418

Unavailable

550

PIN COTTER 1.2X10

550D1210

$1.73

550A

PIN-COTTER,1.6X15

550D1615

$2.08

16029

GASKET,FLOAT VALVE SEAT

16029-002

$3.98

16030

VALVE-FLOAT,#2.0

16030-001

$50.69

16031

FLOAT

16031-015

$59.81

16032

PIN,FLOAT

16032-003

$5.95

16034

WASHER,MAIN JET

16034-001

$3.57

16036

BOOT,STARTER PLUNGER

16036-012

$11.00

16147

PLUG,12X40

16147-001

$4.30

92037

CLAMP

92037-1077

Unavailable

92063

JET-MAIN,#85R

92063-093

$15.86

92063A

JET-MAIN,#A80R

92063-1030

$15.86

92063B

JET-MAIN,#A77.5R

92063-1032

$15.86

92063C

JET-MAIN,#75R

92063-109

Unavailable

92063D

JET-MAIN,#82.5R

92063-124

$15.86

92064

JET-PILOT,#17.5

92064-020

Unavailable

92077

KNOB,CARBURETOR

92077-022

$10.25
