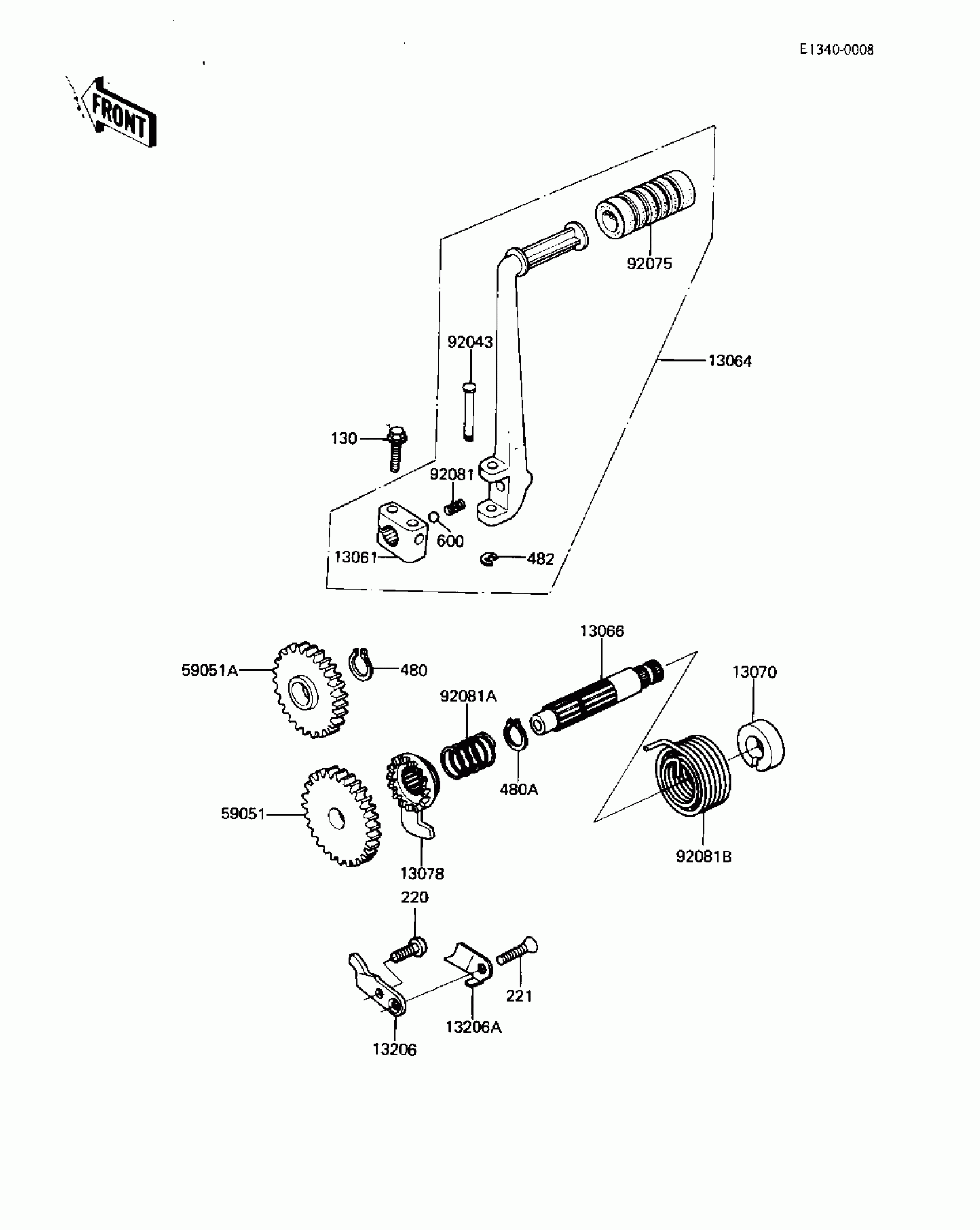

Kawasaki KDX80 KICKSTARTER MECHANISM (KDX80-B2) Diagram

Description

Price

13061

BOSS,KICK PEDAL

13061-1021

Unavailable

13064

LEVER-ASSY-KICK

13064-1034

Unavailable

13066

SHAFT,KICK

13066-1015

Unavailable

13070

GUIDE,KICK SPRING

13070-1034

$9.22

13078

RATCHET

13078-1004

$60.14

13206

GUIDE,KICK

13206-1005

Unavailable

13206A

GUIDE,KICK SPRING

13206-1007

Unavailable

59051

GEAR-SPUR,32T

59051-1026

$52.72

59051A

GEAR-SPUR,30T

59051-1027

$66.46

92043

PIN,KICK PEDAL

92043-1050

Unavailable

92075

DAMPER RUBB,GEAR CHNG

92075-1021

Unavailable

92081

SPRING,KICK PEDAL

92081-020

$3.39

92081A

SPRING,RATCHET

92081-122

$6.98

92081B

SPRING,KICK

92081-1274

$24.98

130

BOLT-FLANGED,6X20

130P0620

$1.41

220

SCREW-PAN-CROS,6X16

220B0616

Unavailable

221

SCREW-CSK-CROS,6X18

221B0618

Unavailable

480

CIRCLIP-TYPE-C,15MM

480J1500

$1.85

480A

CIRCLIP-TYPE-C,16MM

480J1600

$3.43

482

CIRCLIP 5MM

482K5000

Unavailable
