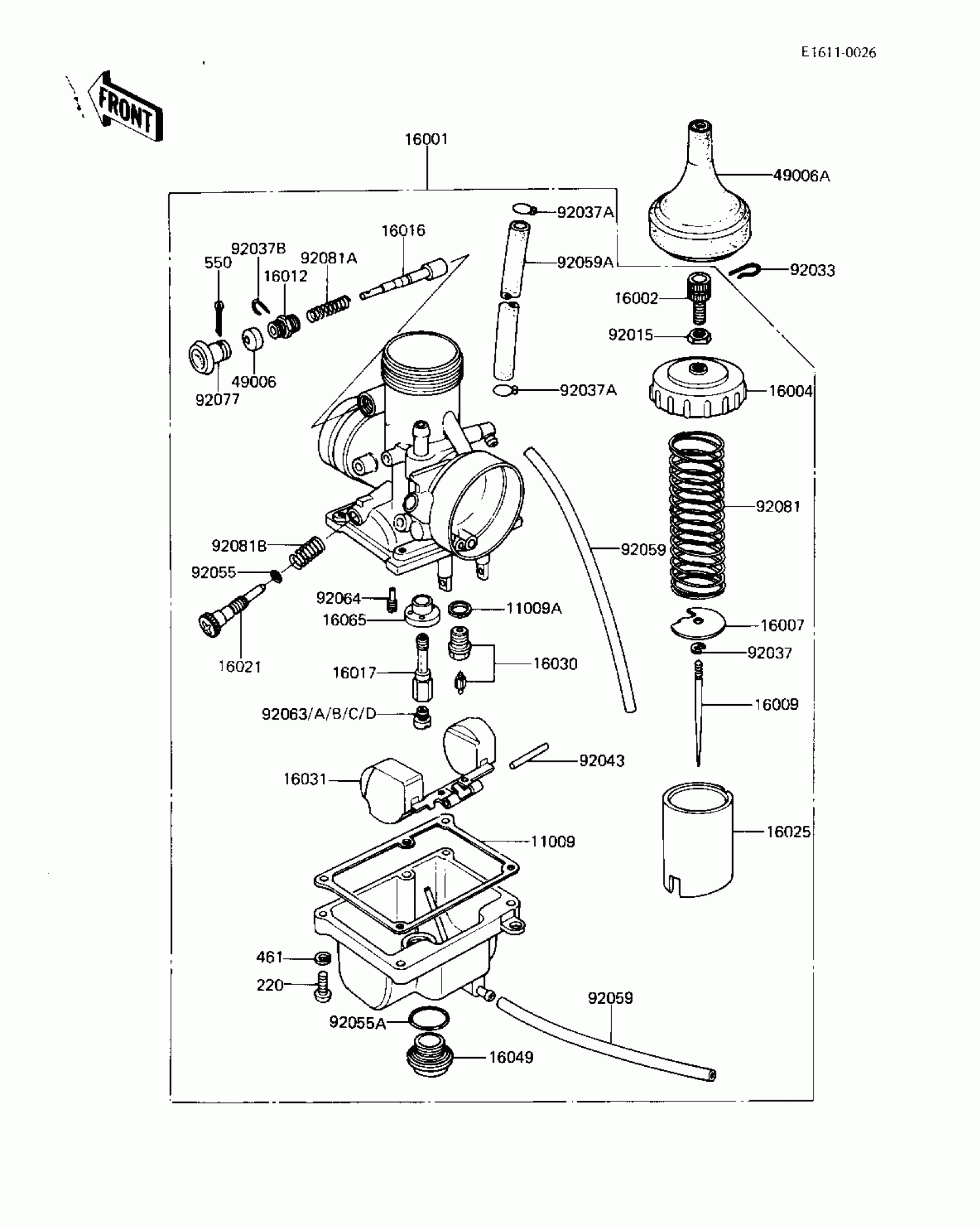

Kawasaki KDX80 CARBURETOR Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-1147

$9.85

11009A

WASHER FLOAT VLV SEAT

16029-004

$3.10

16001

CARBURETOR

16001-1461

Unavailable

16002

ADJUSTER-CABLE

16002-011

$11.06

16004

CAP-CHAMBER

16004-025

$33.92

16007

SEAT-SPRING,THROTTLE VALVE

16007-023

$9.85

16009

JET NEEDLE,5EJ25

16009-1057

Unavailable

16012

CAP-STARTER PLUNGER

16012-021

$15.07

16016

PLUNGER ASSY,STARTER

16016-1004

$59.69

16017

NEEDLE JET,0-4

16017-1054

$32.51

16021

SCREW-THROTTLE STOP

16021-1042

Unavailable

16025

VALVE,THROTTLE,C.A1.5

16025-1028

$140.51

16030

VALVE-FLOAT,#2.6

16030-1004

Unavailable

16031

FLOAT

16031-1005

$54.64

16049

COVER-MAIN JET

16049-1001

$25.31

16065

HOLDER,JET NEEDLE

16065-1020

$17.34

49006

BOOT,STARTER PLUNGER

16036-012

$11.00

49006A

BOOT,CARBURETOR

49006-1024

Unavailable

92015

NUT,ADJUST LOCK

16003-006

$5.84

92033

RING-SNAP

92036-018

$3.10

92037

CLAMP,E-TYPE

16008-010

$8.95

92037A

CLAMP,TUBE

92037-072

$5.74

92037B

CLAMP

92037-1077

Unavailable

92043

PIN,FLOAT

16032-003

$5.95

92055

RING-O

92055-044

$8.24

92055A

RING-O,MAIN JET COVER

92055-1061

$8.37

92059

TUBE,3X5X300

92059-1755

$8.97

92059A

HOSE,FUEL TAP DIAPHRA

92059-1023

$15.47

92063

MAIN JET NO 130R

92063-057

$13.73

92063A

JET-MAIN NO 132.5R

92063-103

Unavailable

92063B

MAIN JET NO 135R

92063-104

Unavailable

92063C

MAIN JET,#A137.5

92063-1087

Unavailable

92063D

MAIN JET,#140A

92063-116

Unavailable

92064

JET-PILOT,#25

92064-1038

$18.64

92077

KNOB,STARTER PLUNGER

92077-1009

$8.39

92081

SPRING,THROTTLE VALVE

16006-023

$14.22

92081A

SPRING,STARTER PLUNGR

16013-011

Unavailable

92081B

SPRING,THROTTLE ADJUST

92081-1152

$5.37

220

SCREW PAN HEAD 4X16

220B0416

Unavailable

461

WASHER SPRING 4MM

461F0400

Unavailable

550

PIN-COTTER,1.6X15

550D1615

$2.08
