1982 Kawasaki KDX450 Swing Arm/chain Cover Diagram

← All diagrams

Find the part on the Swing Arm/chain Cover diagram for your 1982 Kawasaki KDX450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

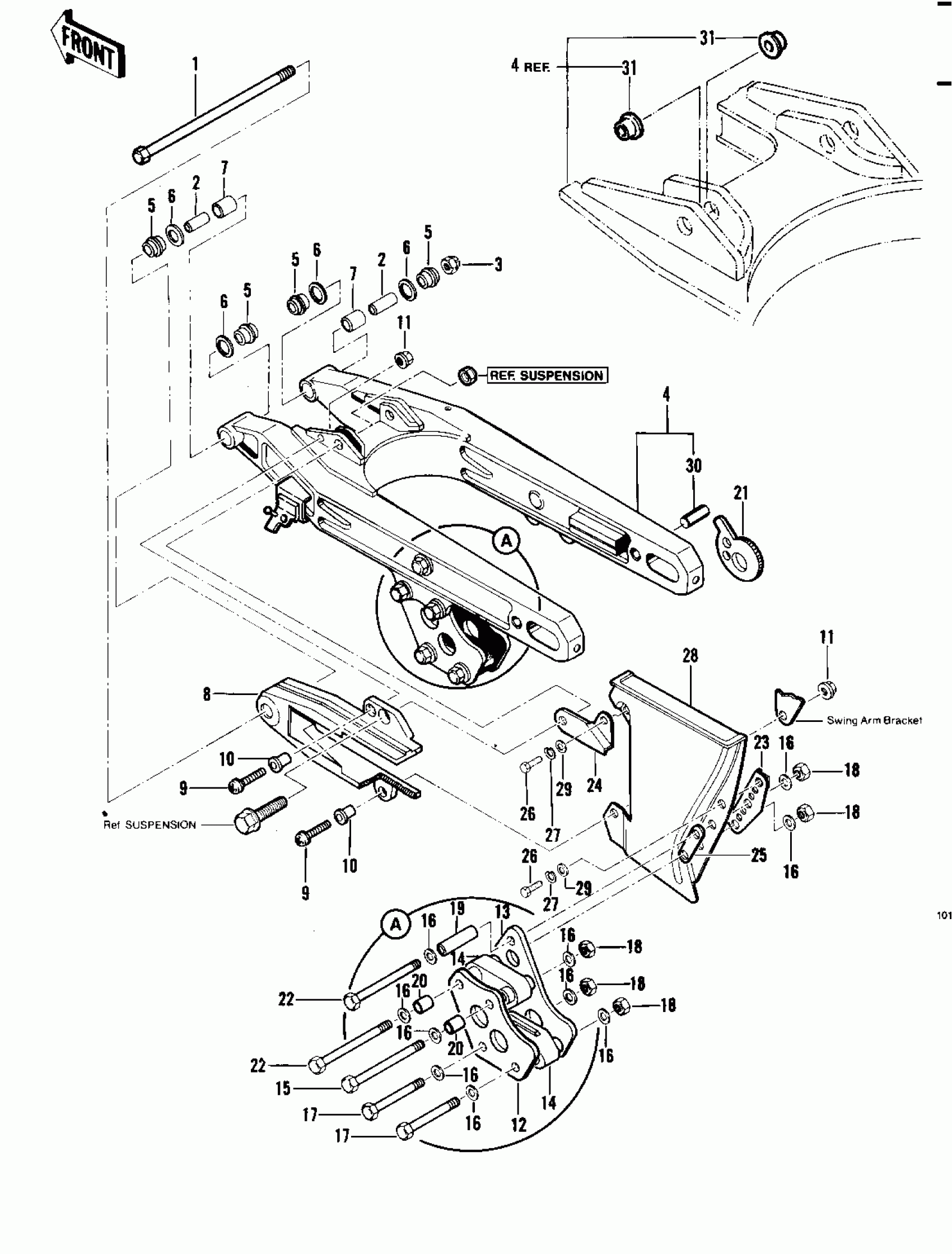

1982 Kawasaki KDX450 Swing Arm/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT-SWING ARM

33032-1020

1
Out of stock

2

SLEEVE,SWING ARM

42036-1031

1
Out of stock

3

NUT-LOCK,14MM

92019-011

1
Out of stock

4

SWING ARM

33001-4004

1
Out of stock

5

CAP,SWING ARM

11012-1099

1
Out of stock

6

SHIM,SWING ARM

92025-1116

1
Out of stock

7

BUSHING

92028-1072

1
Out of stock

8

GUIDE,CHAIN

12053-4001

1
Out of stock

9

SCREW,6X20

92009-1289

1
Out of stock

10

COLLAR,L=5.1

92027-1260

1
Out of stock

11

NUT,FLANGED,6MM

92015-1078

1
Out of stock

12

GUARD,CHAIN

55020-4009

1
Out of stock

13

GUARD,CHAIN

55020-4010

1
Out of stock

14

GUIDE,CHAIN

12053-1015

1
Out of stock

15

BOLT-UPSET

112G0660

1
Out of stock

16

WASHER PLAIN 6MM

411B0600

1
Out of stock

17

BOLT-UPSET

112G0645

1
Out of stock

18

NUT,LOCK,6MM

92019-008

1
Out of stock

19

COLLAR

92027-4016

1
Out of stock

20

COLLAR

92027-4017

1
Out of stock

21

ADJUSTER-CHAIN

33040-1060

1
Out of stock

22

BOLT,6X70

110G0670

1
Out of stock

23

BRACKET,CHAIN CASE,F

11034-1841

1
Out of stock

24

BRACKET,CHAIN CASE

11034-4076

1
Out of stock

25

BRACKET,CHAIN CASE

11034-4077

1
Out of stock

26

BOLT-UPSET 6X14

112B0614

1
Out of stock

27

WASHER SPRING 6MM

461F0600

1
Out of stock

28

CASE-CHAIN

36014-4005

1
Out of stock

29

WASHER,6.5X20X1.6

92022-125

1
Out of stock

30

PIN,DOWEL,8X25

551A0825

1
Out of stock

31

COLLAR-SWING ARM

92027-1229

1
Out of stock
