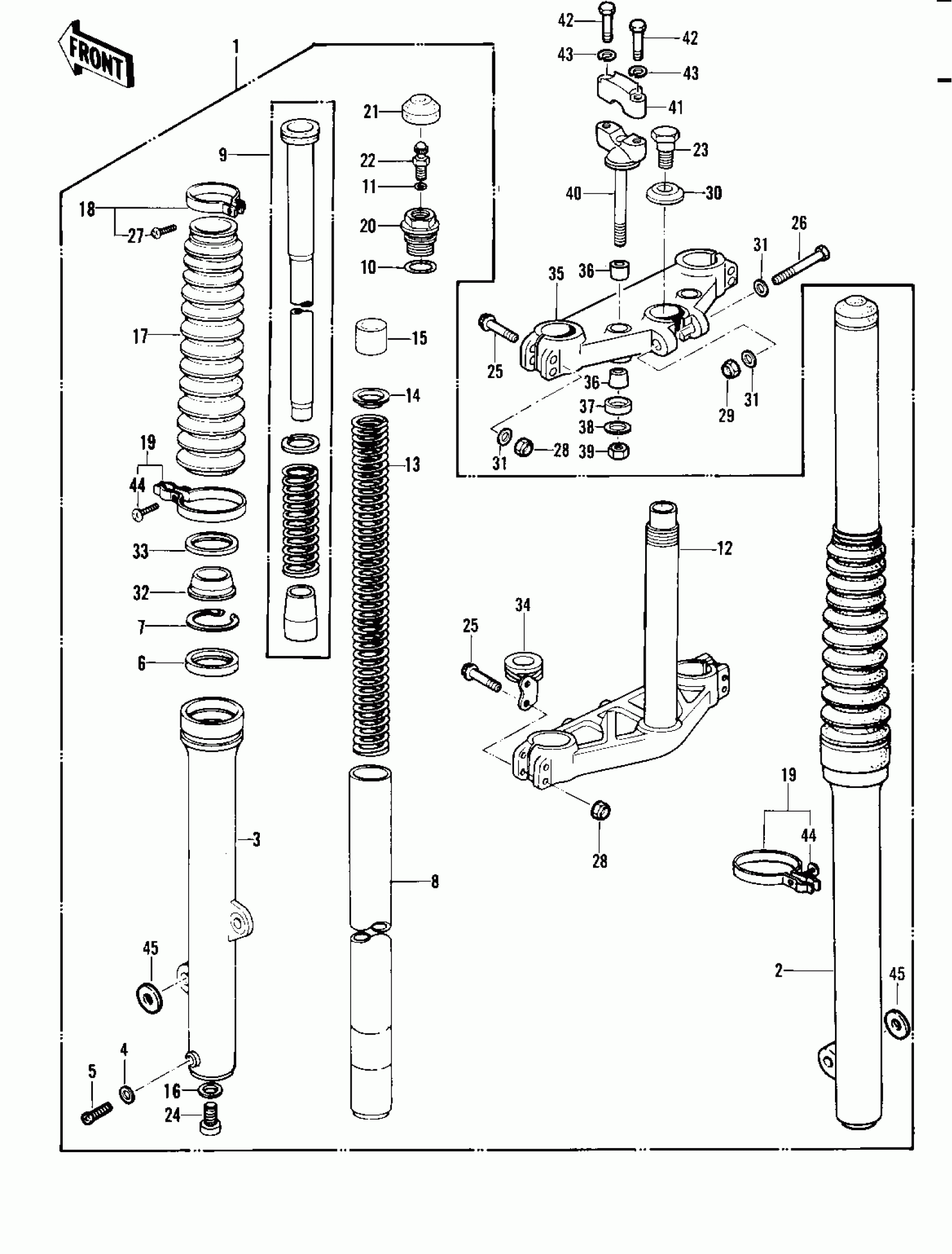

Kawasaki KDX450 FRONT FORK Diagram

#

Description
Price

1

FORK-FRONT

44001-4004

$994.04

2

TUBE,RH,FORK OUTER

44006-4001

$170.05

3

TUBE,LH,FORK OUTER

44005-4001

$161.13

4

GASKET,FORK DRAIN PLUG

44045-002

$3.95

5

SCREW PAN HEAD 4X8

220B0408

Unavailable

6

OIL SEAL,FORK OUT TUB

92049-1042

Unavailable

7

SNAP RING,FORK OUT TU

92033-1035

Unavailable

8

TUBE,FORK INNER

44013-4001

$251.51

9

CYLINDER-FORK

44022-4001

$80.98

10

RING-O,FORK TOP CAP

92055-1050

$4.71

11

"0" RING,AIR VALVE

92055-1018

Unavailable

12

STEM,STEERING

44037-1065

$465.45

13

SPRING,FORK INNER

44026-4001

$49.25

14

GUIDE-FORK SPRING

44028-1003

Unavailable

15

SPACER,FORK SPRING

92026-4002

$5.14

16

GASKET,FORK CYLINDER BOLT

11009-1127

$3.95

17

BOOT,FORK

49006-1174

Unavailable

18

BAND,BOOT

92072-1046

$7.65

19

CLAMP,BOOT,L.H

92072-1026

Unavailable

20

CAP,FORK TOP

44029-1008

Unavailable

21

CAP,RUBBER,FORK TOP

44029-1009

Unavailable

22

VALVE ASSY,AIR

16126-1003

Unavailable

23

BOLT,FORK TOP

44041-065

Unavailable

24

BOLT,FORK CYLINDER

92001-1186

$2.66

25

BOLT-FLANGED,8X55

130G0855

Unavailable

26

BOLT,HEX HEAD,8X57

92001-1141

Unavailable

27

SCREW-PAN-CROS

220B0420

Unavailable

28

NUT,8M/M

44007-1002

Unavailable

29

NUT,LOCK,8MM

92015-1124

$4.10

30

WASHER

44043-052

$7.47

31

WASHER PLAIN 8MM

410B0800

Unavailable

32

DUST SHIELD,FORK OUTR

92093-1035

$13.56

33

CASE,DUST SHIELD

32099-1013

Unavailable

34

CLAMP,CABLE

92072-1027

Unavailable

35

HEAD,STEERING STEM

44039-4004

$93.57

36

DAMPER RUBBER,HANDLE

92075-275

Unavailable

37

WASHER

92022-4012

$4.25

38

WASHER SPRING 10MM

461F1000

Unavailable

39

NUT,LOCK,10MM

92019-021

$4.59

40

HOLDER-HANDLE,LWR

46012-010

$31.36

41

HOLDER-HANDLE,UPP

46012-008

$33.69

42

BOLT 8X38

92001-1405

$12.52

43

WASHER SPRING 8MM

461F0800

Unavailable

44

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

45

WASHER,FORK

92022-4006

Unavailable
