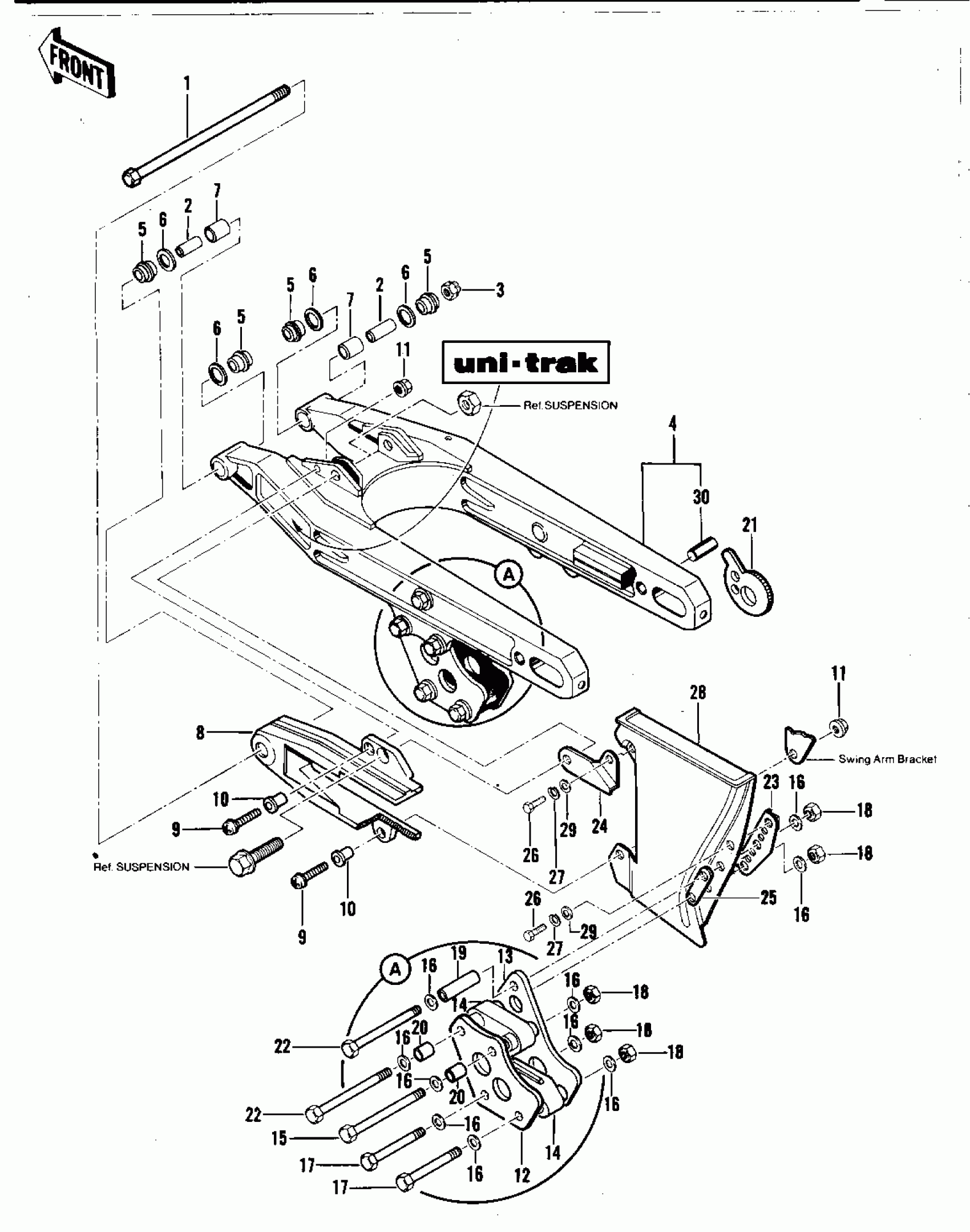

Kawasaki KDX420 SWING ARM/CHAIN COVER Diagram

#

Description
Price

1

SHAFT-SWING ARM

33032-1020

$121.69

2

SLEEVE,SWING ARM

42036-1031

Unavailable

3

NUT-LOCK,14MM

92019-011

Unavailable

4

SWING ARM

33001-4002

$504.51

5

CAP,SWING ARM

11012-1099

$30.36

6

SHIM,SWING ARM

92025-1116

Unavailable

7

BUSHING

92028-1072

Unavailable

8

GUIDE,CHAIN

12053-4001

Unavailable

9

SCREW,6X20

92009-1289

$3.29

10

COLLAR,L=5.1

92027-1260

$4.67

11

NUT,FLANGED,6MM

92015-1078

Unavailable

12

GUARD,CHAIN

55020-4009

$59.85

13

GUARD,CHAIN

55020-4010

$58.07

14

GUIDE,CHAIN

12053-1015

Unavailable

15

BOLT-UPSET

112G0660

Unavailable

16

WASHER PLAIN 6MM

411B0600

Unavailable

17

BOLT-UPSET

112G0645

Unavailable

18

NUT,LOCK,6MM

92019-008

$3.12

19

COLLAR

92027-4016

$3.51

20

COLLAR

92027-4017

$1.56

21

ADJUSTER-CHAIN

33040-1060

$30.96

22

BOLT,6X70

110G0670

Unavailable

23

BRACKET,CHAIN CASE,F

11034-1841

Unavailable

24

BRACKET,CHAIN CASE

11034-4076

Unavailable

25

BRACKET,CHAIN CASE

11034-4077

Unavailable

26

BOLT-UPSET 6X14

112B0614

Unavailable

27

WASHER SPRING 6MM

461F0600

Unavailable

28

CASE-CHAIN

36014-4005

Unavailable

29

WASHER,6.5X20X1.6

92022-125

$1.08

30

PIN,DOWEL,8X25

551A0825

Unavailable
