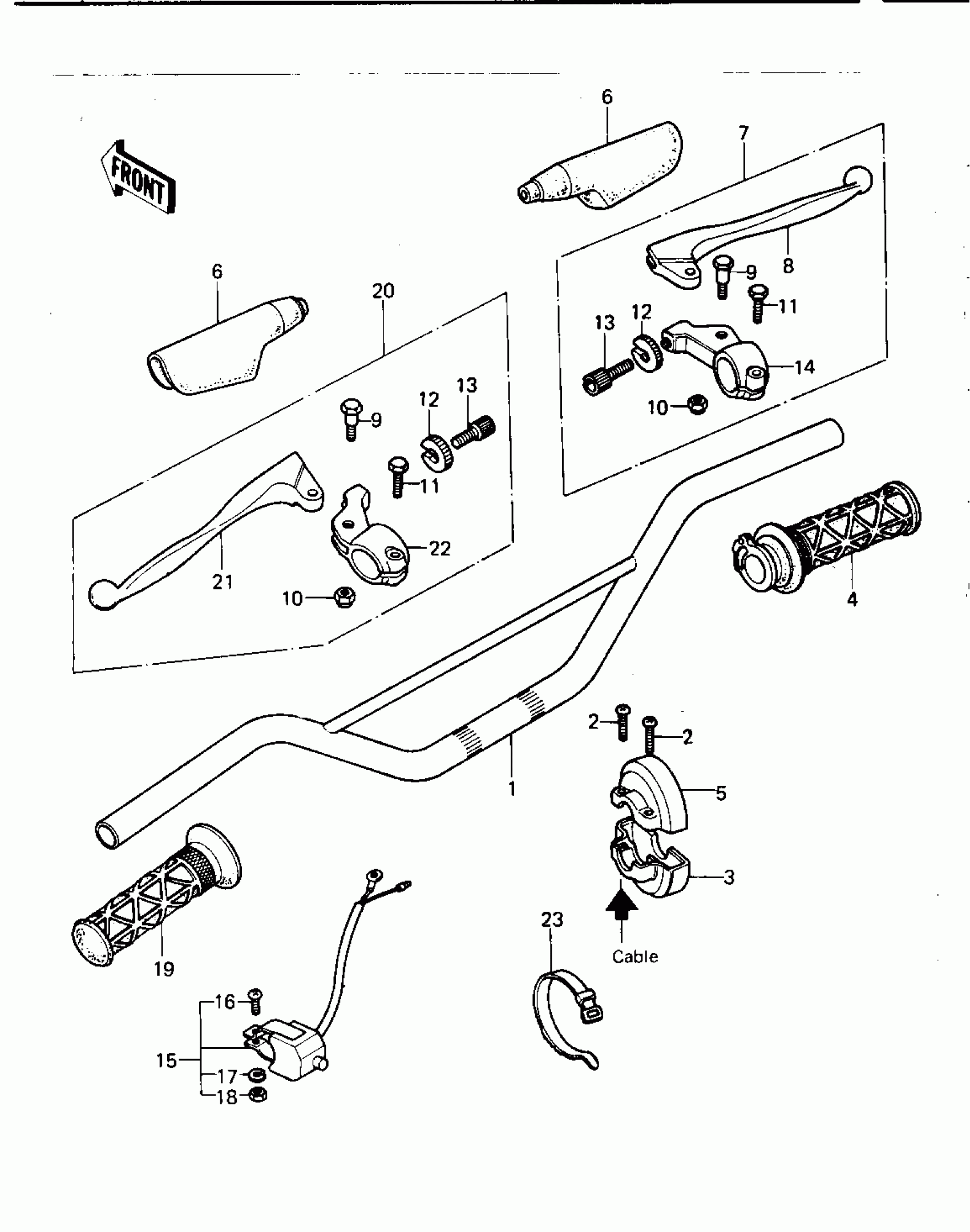

Kawasaki KDX420 HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

46003-4001

Unavailable

2

SCREW-PAN-CROS

220B0520

$0.62

3

HOUSING CONTROL,R.H.

32099-1011

Unavailable

4

GRIP-ASSY

46019-1012

Unavailable

5

CASE,R.H,GRIP,UPPER

32099-1014

Unavailable

6

DUST COVER

46071-003

Unavailable

7

LEVER ASSY,FRONT BRA

46076-1003

Unavailable

8

FRONT BRAKE LEVER

46058-018

$58.85

9

BOLT,HEX HEAD,6MM

92001-140

Unavailable

10

NUT,LOCK,6MM

92019-008

$3.12

11

BOLT-UPSET

112N0620

Unavailable

12

NUT,CABLE ADJUST

46056-006

$6.82

13

SCREW,CABLE ADJUST,8MM

46055-009

$14.38

14

HOLDER,F.BRAKE LEVER

46060-010-21

$69.80

15

SWITCH,ASSY,ENG STOP

27010-1018

Unavailable

16

SCREW PAN HEAD 3X14

220E0314A

Unavailable

17

WASHER SPRING 3MM

461F0300

Unavailable

18

NUT-HEX

311B0300

$0.46

19

GRIP

46075-1015

Unavailable

20

LEVER ASSY,CLUTCH

46076-1004

Unavailable

21

LEVER, CLUTCH

46092-021

Unavailable

22

HOLDER,CLUTCH LEVER

46094-014-21

$61.97

23

BAND

92072-3505

Unavailable
