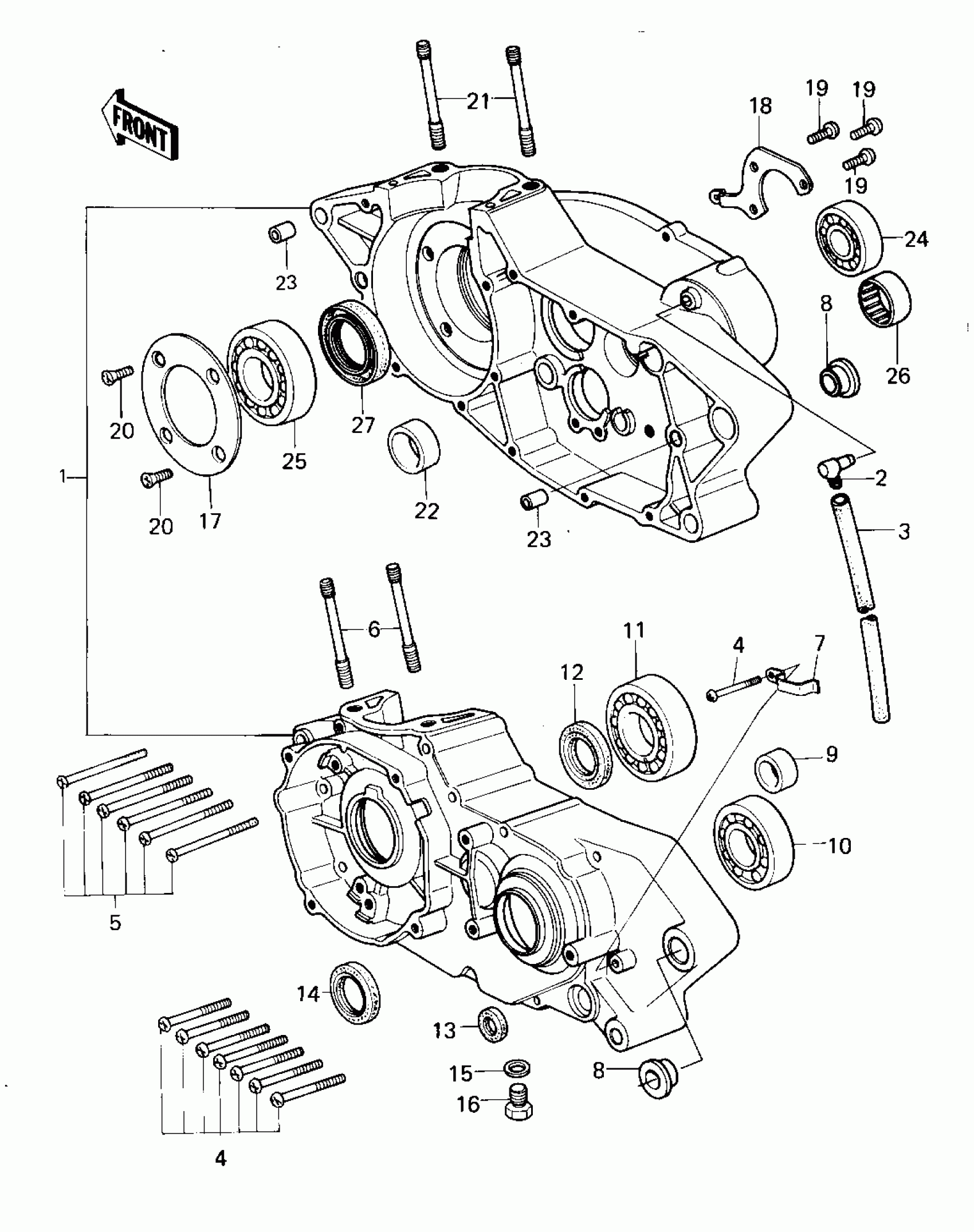

Kawasaki KDX420 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

14001-5070

Unavailable

2

BREATHER

14069-003

$7.83

3

TUBE,6X9X500

92059-1125

$14.06

4

SCREW PAN HEAD 6X50

220B0650

$1.03

5

SCREW PAN HEAD 6X70

220B0670

Unavailable

6

STUD,10X72

92004-1023

$7.68

7

CLAMP

92037-1073

Unavailable

8

BUSHING,CASE PIVOT

92028-1123

$26.76

9

BUSHING,23X30X13

92028-132

$38.79

10

BEARING-BALL,#6305

92045-1011

$34.26

11

BEARING-BALL,6306SH2,9TC

92045-1027

$54.01

12

SEAL-OIL

92050-057

$18.95

13

SEAL-OIL

92050-082

$6.55

14

SEAL-OIL,TC32457

92049-1159

$6.56

15

GASKET,10.5X16X1

92065-058

$3.03

16

PLUG,DRAIN,10X12

92067-001

$3.36

17

PLATE,POSITION,CRANK

14014-1011

Unavailable

18

PLATE,POSITION,DRIVE

14014-1012

Unavailable

19

SCREW-PAN-CROS,6X16

220B0616

Unavailable

20

SCREW-CSK-CROS,6X16

221B0616

$0.54

21

STUD,10X72

92004-1023

$7.68

22

BUSHING,26X35X14

92028-131

$33.95

23

PIN,DOWEL,10X14

92043-1037

$0.66

24

BEARING,BALL

92045-1006

Unavailable

25

BEARING-BALL,6306SH2,9TC

92045-1027

$54.01

26

BEARING,NEEDLE,344012

92046-040

Unavailable

27

OIL SEAL,ACJ386210

92049-1046

Unavailable
