1980 Kawasaki KDX400 Taillight/chassis Electrical Equipment Diagram

← All diagrams

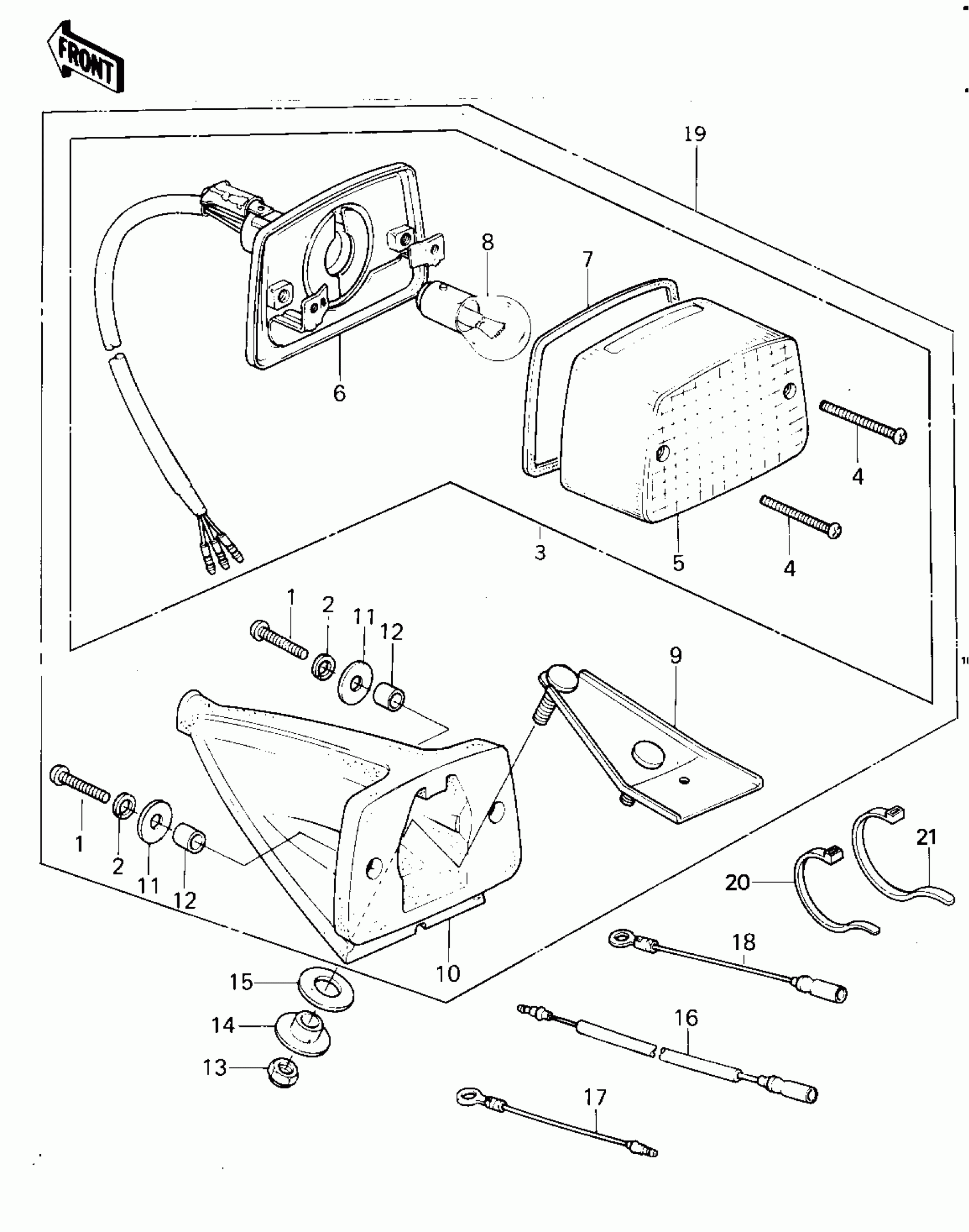

Find the part on the Taillight/chassis Electrical Equipment diagram for your 1980 Kawasaki KDX400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KDX400 Taillight/chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

214B0516A

1
Out of stock

2

WASHER SPRING 5MM

461F0500

1
Out of stock

3

LAMP,TAIL

23025-075

1
Out of stock

4

SCREW-PAN-CROS

220B0330

1
Out of stock

5

LENS,TAIL LAMP

23026-040

1
Out of stock

6

CASE,TAIL LAMP

23027-044

1
Out of stock

7

GASKET,TAIL LIGHT

23028-020

1
Out of stock

8

BULB,6V 17/5.3W

92069-028

1
Out of stock

9

BRACKET,TAIL LAMP

23036-4001

1
Out of stock

10

BODY,TAIL LAMP

23069-4001

1
Out of stock

11

WASHER,TAIL LAMP

92022-4001

1
Out of stock

12

COLLAR,TAIL LAMP

92027-4002

1
Out of stock

13

NUT,LOCK,6MM

92019-008

1
Out of stock

14

COLLAR

92027-1045

1
Out of stock

15

DAMPER RUBBER

92075-118

1
Out of stock

16

WIRE, TAILLAMP

26011-4001

1
Out of stock

17

WIRE, GROUND HEADLAMP

26011-4002

1
Out of stock

18

WIRE, GROUND TAILLITE

26011-4003

1
Out of stock

19

TAIL LAMP ASSY

23024-4001

1
Out of stock

20

BAND

92072-3505

1
Out of stock

21

BAND,L=292.1

92072-3509

1
Out of stock
