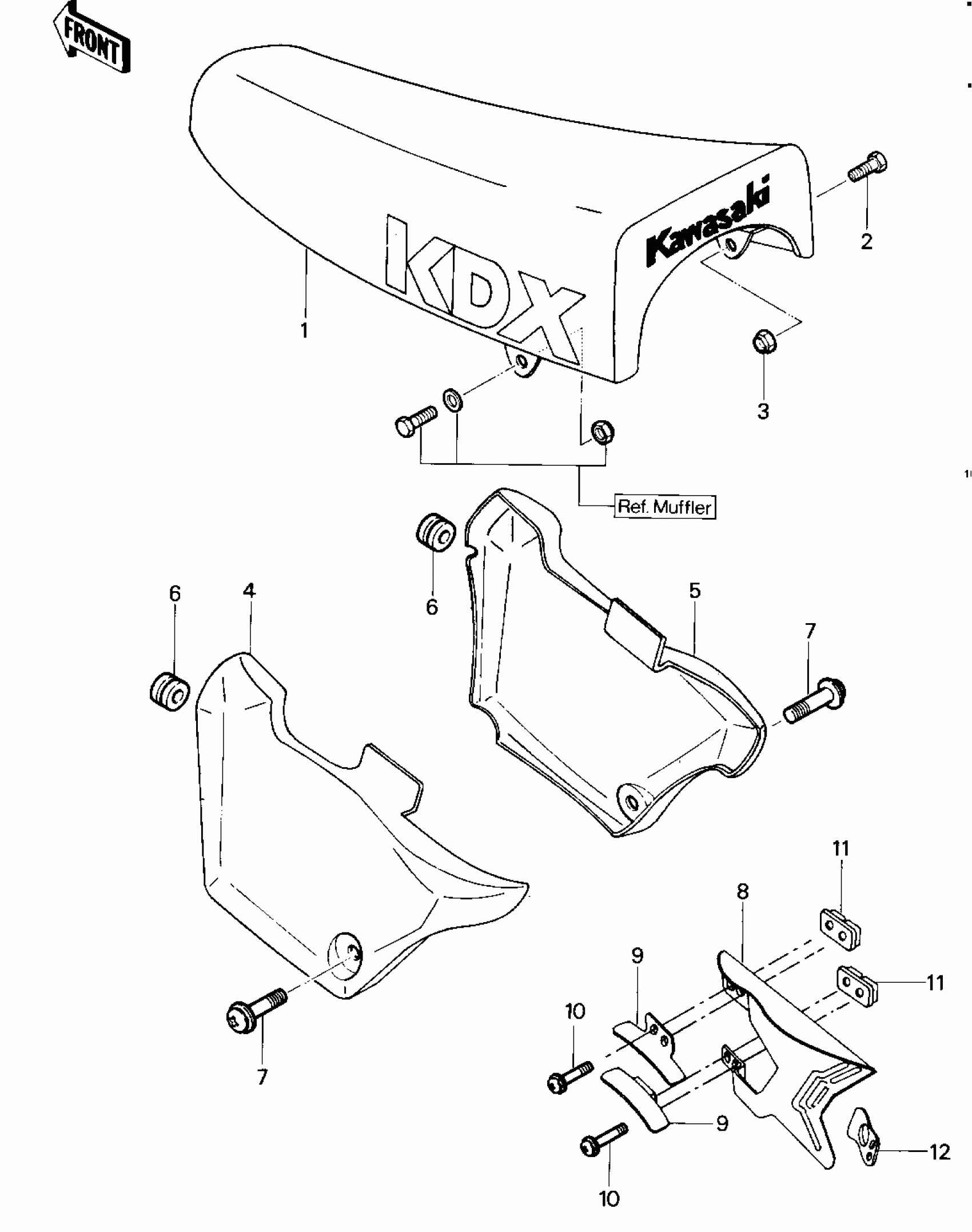

Kawasaki KDX400 SEAT/SIDE COVERS/CHAIN COVER Diagram

#

Description

Price

1

SEAT-ASSY

53001-4002

Unavailable

2

BOLT-FLANGED,8X14

130G0814

Unavailable

3

NUT,LOCK,8MM

92015-1124

$4.10

4

SIDE COVER,LH

36001-4001-7F

Unavailable

5

SIDE COVER,RH

36001-4002-7F

Unavailable

6

DAMPER

92075-1028

$3.57

7

SCREW,6X10,WHITE

92009-1286

$3.29

8

CHAIN GUARD

36014-4001

Unavailable

9

GUARD,WEAR STRIP

55020-4002

Unavailable

10

SCREW,6X20

92009-1289

$3.29

11

PLATE

13169-4004

Unavailable

12

BRACKET

11034-4005

Unavailable
