1980 Kawasaki KDX400 Frame/frame Fittings Diagram

← All diagrams

Find the part on the Frame/frame Fittings diagram for your 1980 Kawasaki KDX400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

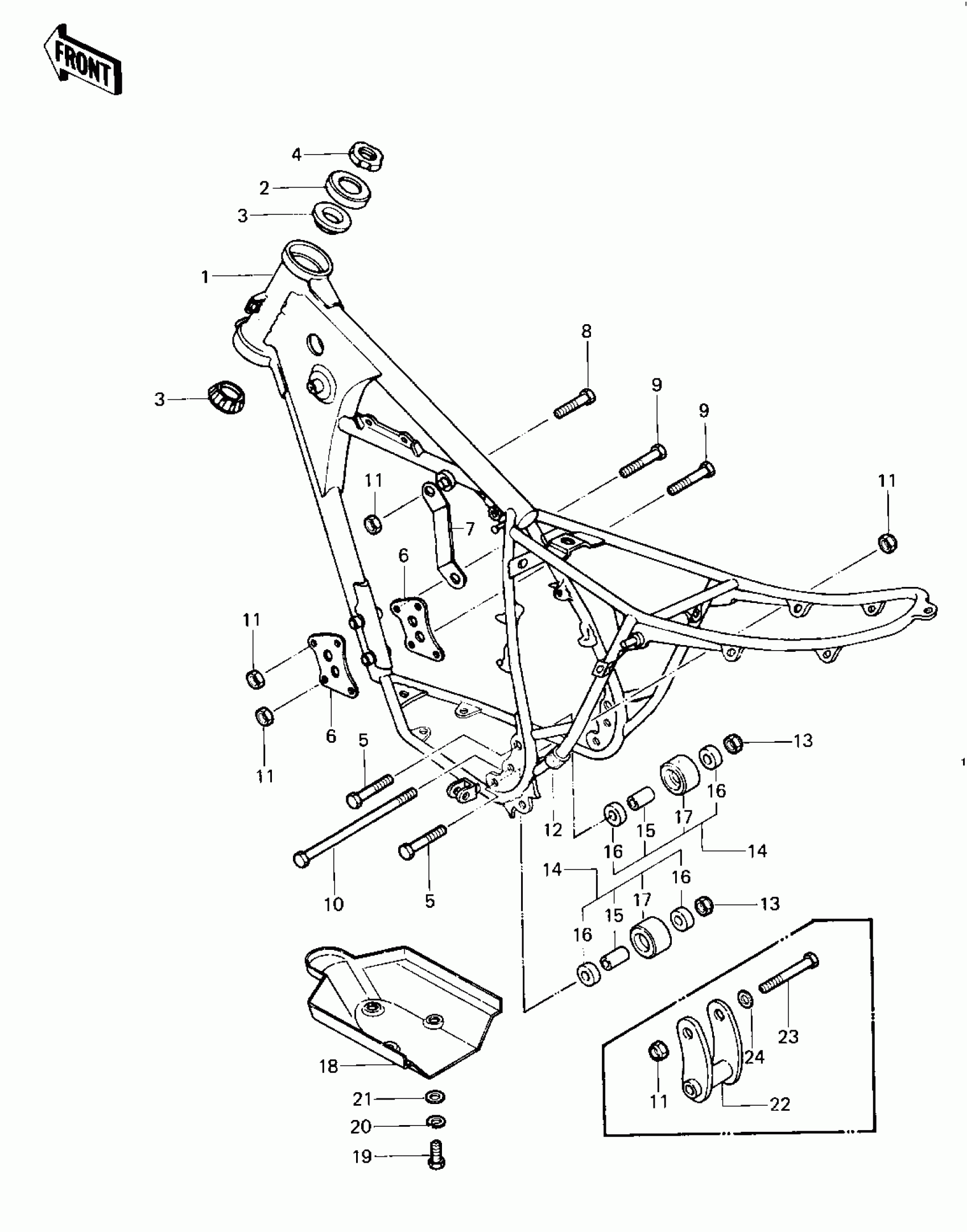

1980 Kawasaki KDX400 Frame/frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

32002-4004

1
Out of stock

2

CAP,STEERING STEM

46098-015

1
Out of stock

3

RACE,ROLLER,32005JR RS

92047-017

1
Out of stock

4

NUT,25MM,T=12

92015-1546

1
Out of stock

5

BOLT-SMALL-UPSET

115G0855

1
Out of stock

6

BRACKET,ENGINE

32029-4006

1
Out of stock

7

BRACKET,ENGINE

32029-4008

1
Out of stock

8

BOLT,HEX HEAD,10X58

92001-1030

1
Out of stock

9

BOLT HEX HEAD,10X66.5

92001-1033

1
Out of stock

10

BOLT,HEX HEAD,10X127

92001-4001

1
Out of stock

11

NUT,LOCK,10MM

92019-021

1
Out of stock

12

GUARD, FRAME

55020-4004

1
Out of stock

13

NUT,LOCK,8MM

92015-1124

1
Out of stock

14

ROLLER,CHAIN ADJUST

92122-4004

1
Out of stock

15

SPACER,CHN GDE ROLLER

92027-4007

1
Out of stock

16

BEARING-BALL,608LLU/2A

92045-1009

1
Out of stock

17

ROLLER

92122-1014

1
Out of stock

18

SKID PLATE

55020-4003

1
Out of stock

19

BOLT-UPSET,6X16

112G0616

1
Out of stock

20

WASHER SPRING 6MM

461F0600

1
Out of stock

21

WASHER-PLAIN,7MM

92022-240

1
Out of stock
