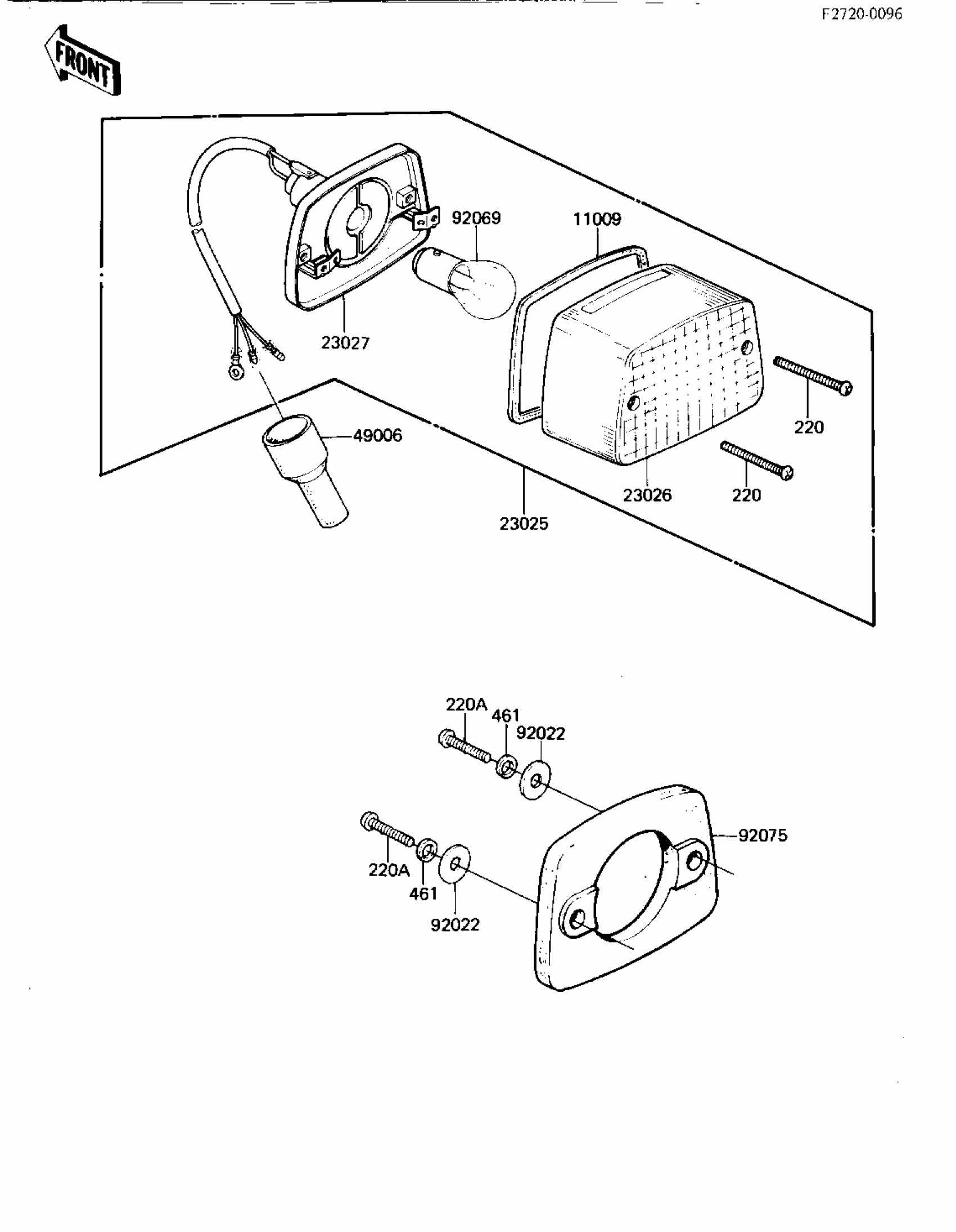

Kawasaki KDX250 TAILLIGHT Diagram

#

Description

Price

11009

GASKET,TAIL LIGHT

23028-020

Unavailable

23025

LAMP-TAIL

23025-1043

Unavailable

23026

LENS,TAIL LAMP

23026-040

Unavailable

23027

BODY-COMP-TAIL LAMP

23027-1028

Unavailable

49006

BOOT,HARNESS COVER

49006-1048

Unavailable

92022

WASHER,5.2X16X1.2

92022-263

$1.22

92069

BULB,6V 17/5.3W

92069-028

Unavailable

92075

DAMPER RUBBER

92075-4014

Unavailable

220

SCREW-PAN-CROS,3X28

220B0328A

$1.95

220A

SCREW-PAN-CROS

220B0520

$0.62

461

WASHER SPRING 5MM

461F0500

Unavailable
