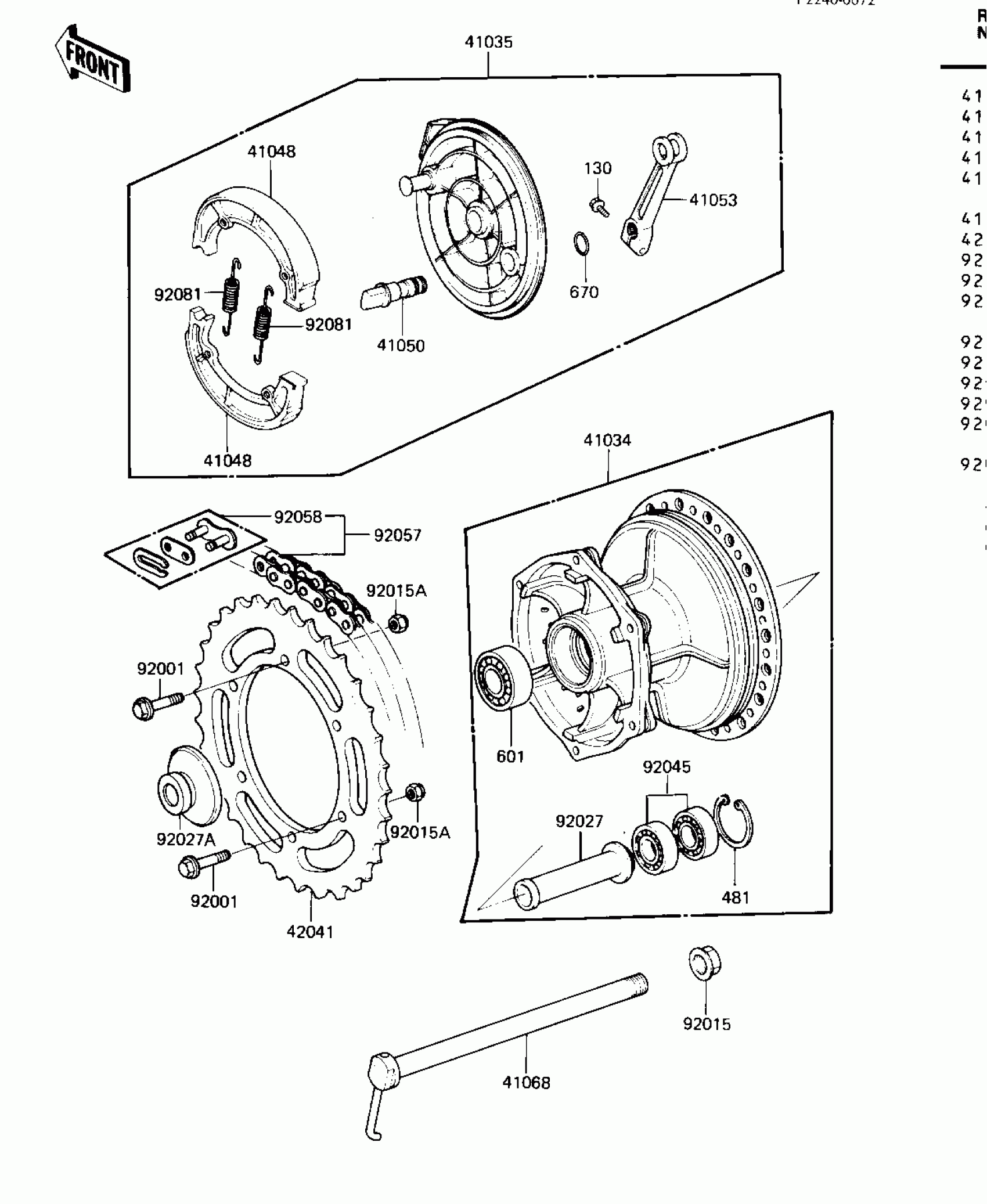

Kawasaki KDX250 REAR HUB/BRAKE/CHAIN ('82 KDX250-B2) Diagram

Description

Price

41034

DRUM-ASSY,RR BRK

41034-1019

$495.88

41035

PANEL-ASY,RR BRK

41035-1086

$308.26

41048

SHOE-BRAKE

41048-1018

$38.11

41050

CAME-BRAKE

41050-1018

$23.36

41053

LEVER BRAKE CAM

41053-1022

Unavailable

41068

AXLE,REAR

41068-1070

$51.76

42041

REAR,SPROCKET,52T

42041-1008

$137.50

92001

BOLT,FLANGED,8X36

92001-1041

$9.54

92015

NUT,16MM

92015-1015

Unavailable

92015A

NUT,8MM

92015-1134

$7.98

92027

COLLAR,REAR BRAKE

92027-1207

$46.56

92027A

COLLAR,REAR AXLE

92027-1397

$27.15

92045

BEARING-BALL,#6003UC3

601B6003U

$20.98

92057

CHAIN,520X118TR

92057-1051

$143.86

92058

JOINT-CHAIN

92058-1051

Unavailable

92081

SPRING,BRAKE SHOE

42020-004

$6.75

130

BOLT-FLANGED,6X20

130G0620

Unavailable

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.64

601

BEARING-BALL,6204UUC3

601B6204UU

$27.14

670

O RING,15MM

670B2015

$1.25
