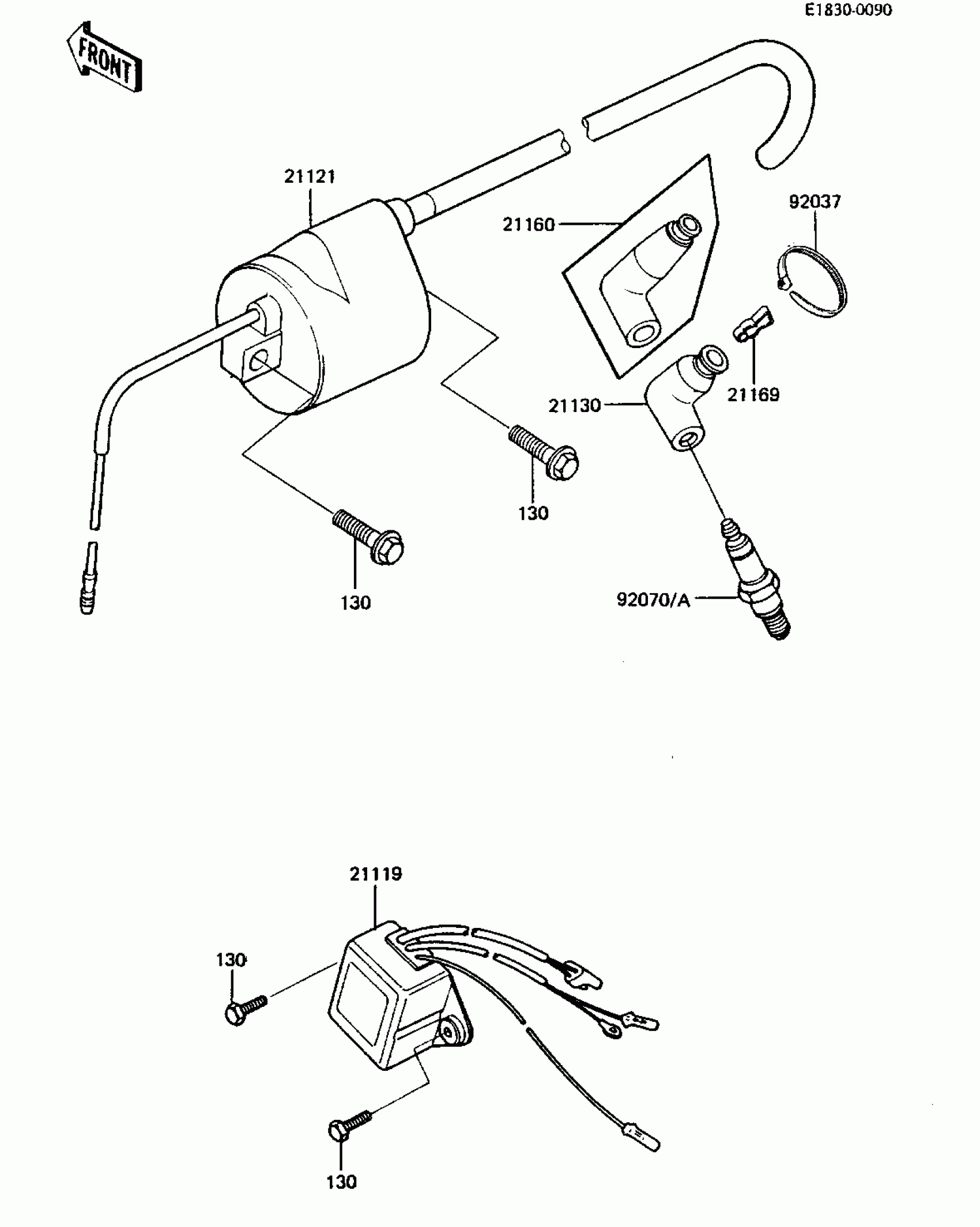

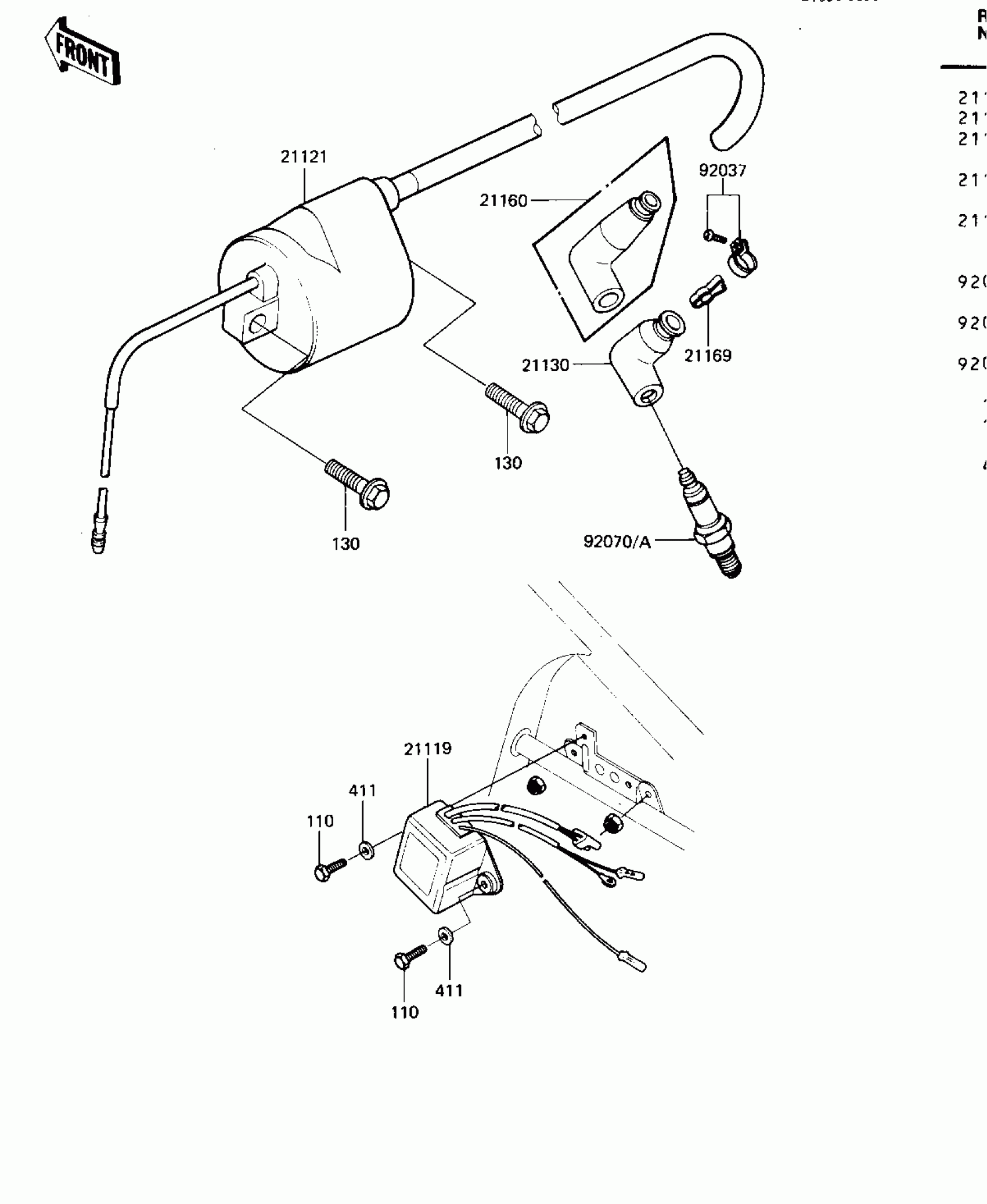

Kawasaki KDX250 IGNITION Diagram

#

Description

Price

21119

IGNITER

21119-1105

Unavailable

21121

COIL-IGNITION

21121-1056

Unavailable

21130

CAP-SPARK PLUG

21130-1006

Unavailable

21160

CAP-ASSY-PLUG

21160-1009

Unavailable

21169

TERMINAL,PLUG CAP

21169-001

Unavailable

92037

CLAMP

92037-1173

$2.92

92070

SPARK PLUG B8ES

B8ES

$2.92

92070A

92070-1021 (Canada)

92070-1022

Unavailable

110

BOLT-UPSET

112G0618

Unavailable

130

BOLT-FLANGED,6X20

130G0620

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable
