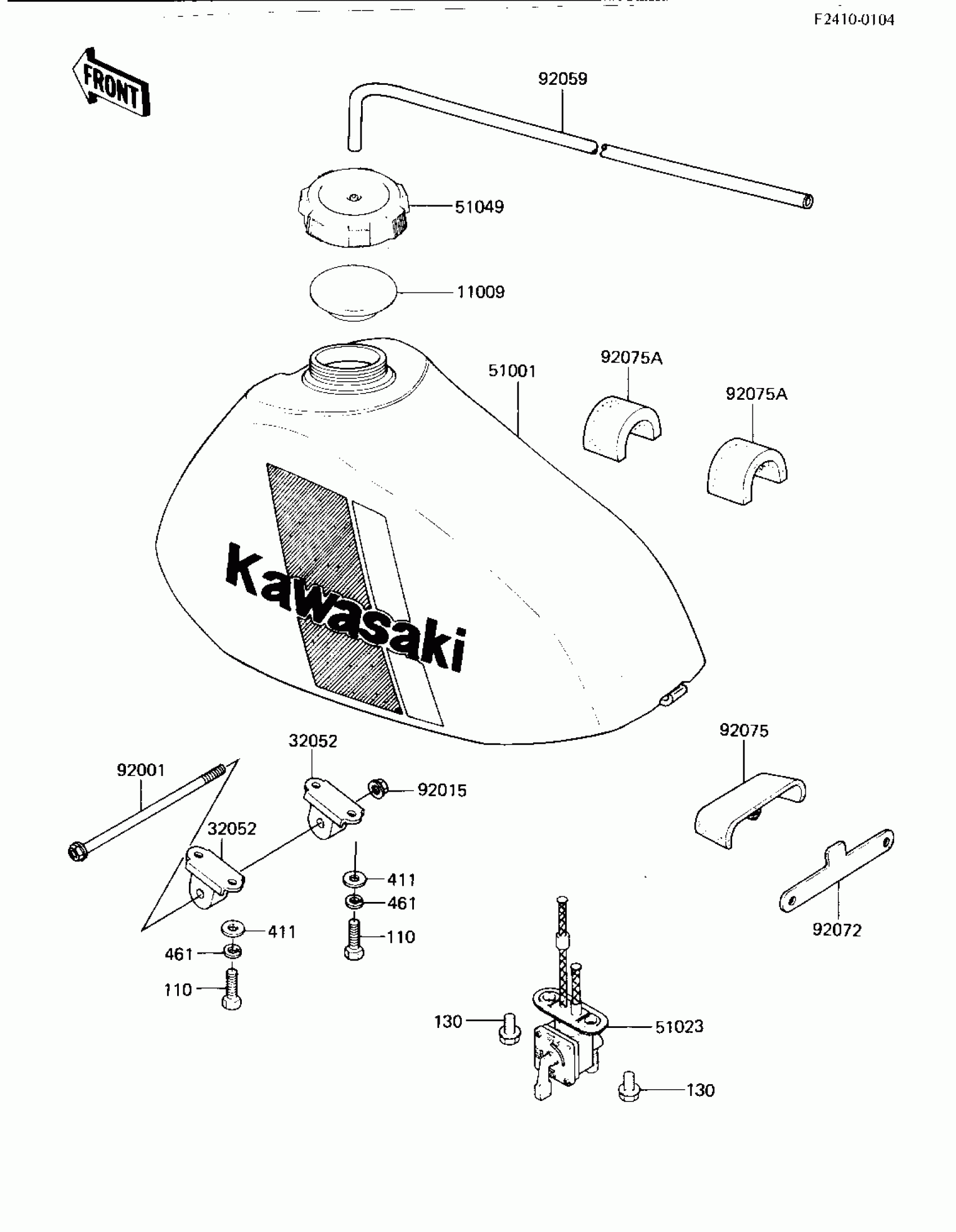

Kawasaki KDX250 FUEL TANK ('82 KDX250-B2) Diagram

#

Description

Price

11009

GASKET,FUEL TANK CAP

11009-1276

Unavailable

32052

BRACKET-TANK

32052-1104

Unavailable

51001

TANK-FUEL,L.GREEN

51001-5179-6W

$533.29

51023

TAP-ASSY

51023-1045

Unavailable

51049

CAP-TANK,FUEL

51049-1007

Unavailable

92001

BOLT,6X162

92001-1501

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92059

TUBE,5X7X500

92059-4001

Unavailable

92072

BAND,FUEL TANK

92072-042

$12.02

92075

DAMPER

92075-1355

Unavailable

92075A

DAMPER,FUEL TANK

92075-1382

$26.48

110

BOLT-UPSET,6X16

112G0616

Unavailable

130

BOLT-FLANGED,6X12

130G0612

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
