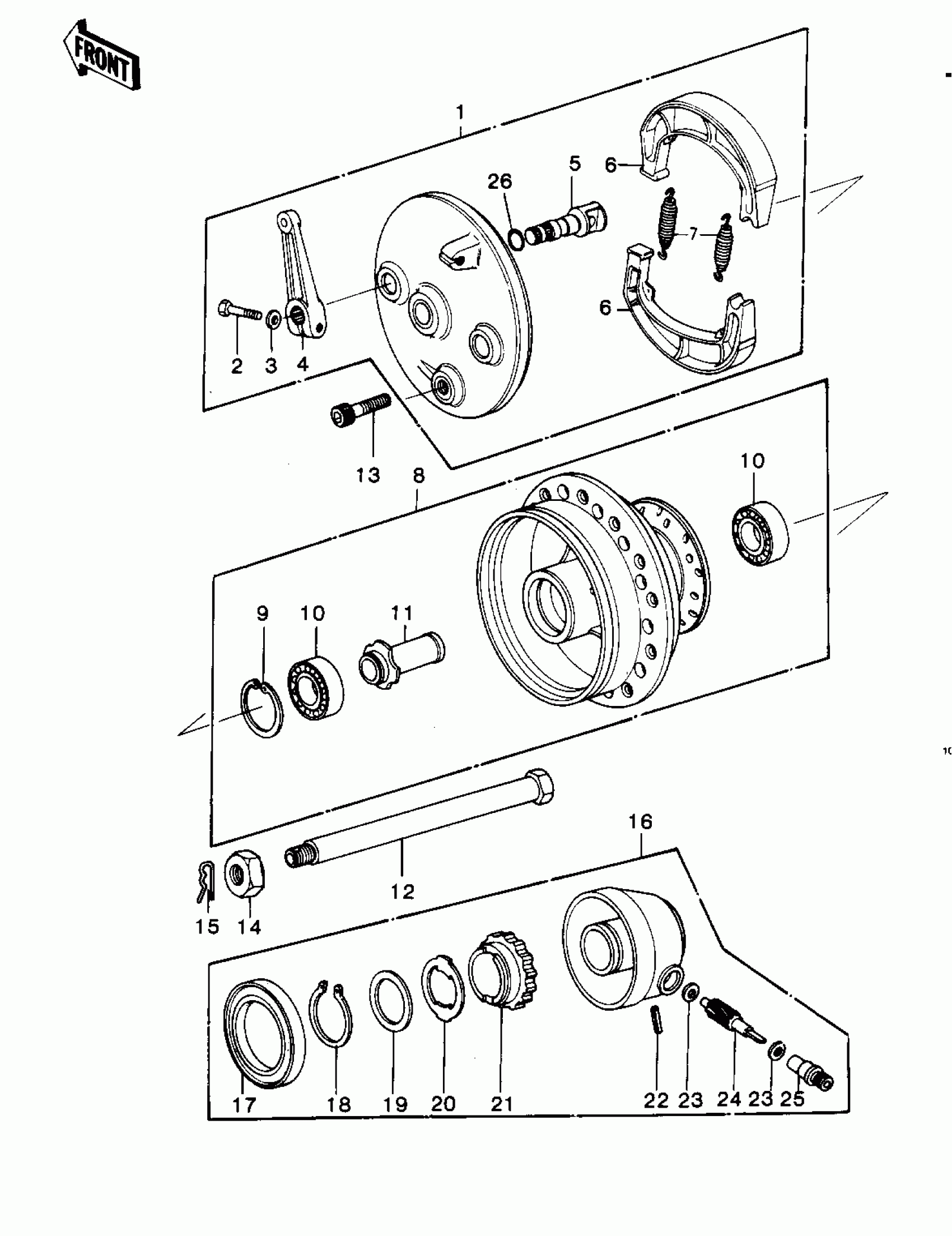

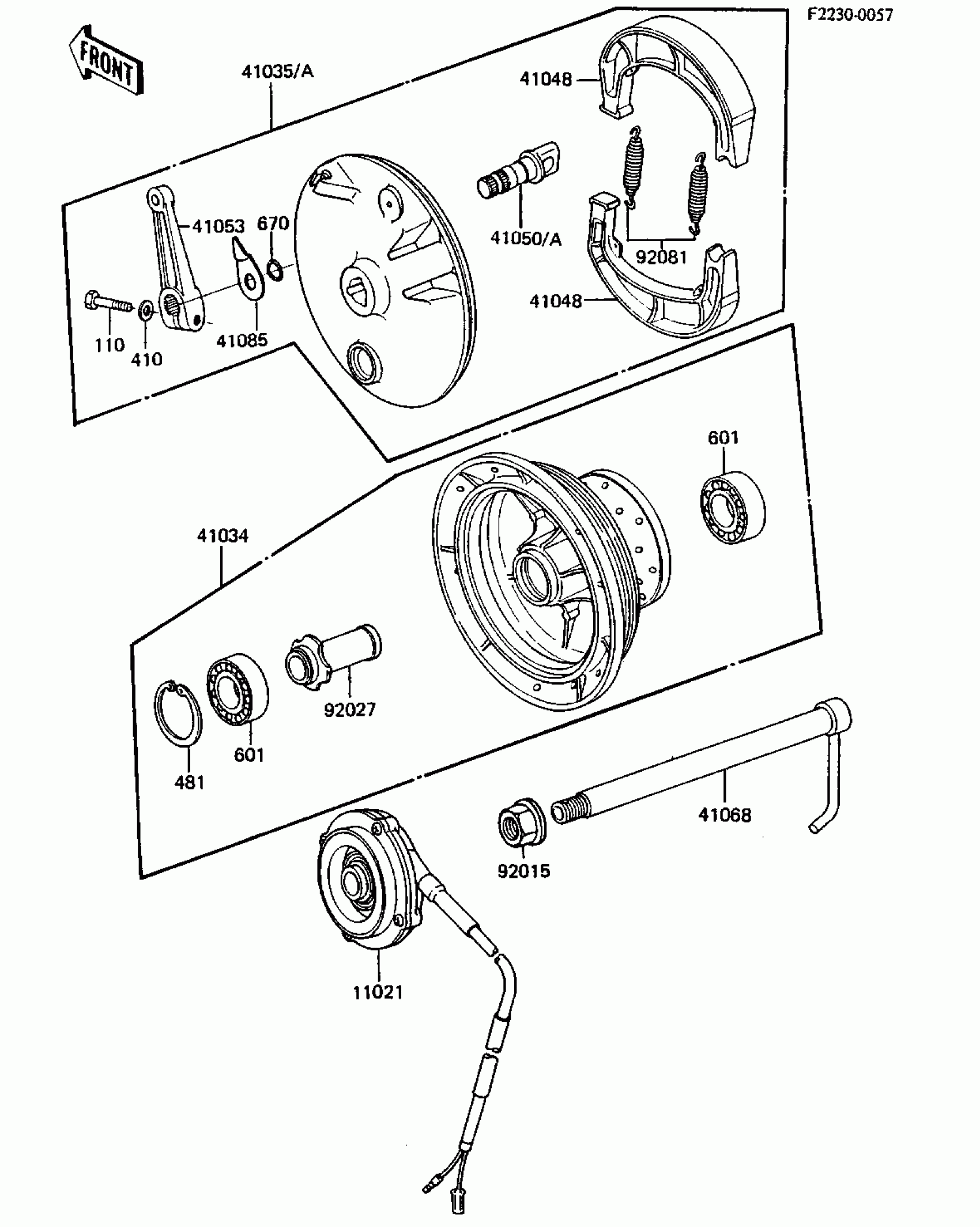

Kawasaki KDX250 FRONT HUB/BRAKE Diagram

#

Description
Price

1

PANEL-ASY,FR BRK

41035-1002

$392.77

2

BOLT-UPSET

112G0622

Unavailable

3

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

4

LEVER,FRONT BRAKE CAM

41053-1003

$62.32

5

CAM SHAFT,BRAKE

41050-1002

Unavailable

6

SHOE-BRAKE

41048-1068

$24.30

7

SPRING,BRAKE SHOE

42020-004

$6.75

8

DRUM-ASSY,FR BRK

41034-4001

$264.12

9

RING-SNAP,42MM

92033-1041

$4.88

10

BEARING,FRONT DRUM

92045-033

Unavailable

11

COLLAR,FRONT BRAKE

92027-1034

$26.07

12

AXLE,FRONT

41068-4001

$52.80

13

BOLT,SOCKET,10X40

92001-4002

$4.25

14

NUT,CASTLE,14MM

42045-020

$7.80

15

PIN,COTTER

550D3230

Unavailable

16

CASE-ASSY-METER GEAR

41078-011

Unavailable

17

OIL SEAL,#50659

654A506509

Unavailable

18

CIRCLIP-TYPE-C,24MM

480J2400

$4.98

19

WASHER,24.5X32X0.8

41065-005

Unavailable

20

RECEIVER-SPEEDOMETER

41064-015

Unavailable

21

GEAR-METER SCREW

41059-027

Unavailable

22

PIN,SPRING

41082-001

$3.53

23

WASHER,5.1X9X0.4

41063-001

$4.17

24

GEAR-METER SCREW,8T

41060-015

Unavailable

25

BUSHING,SPEEDOMETER CABLE

41062-005

$18.66

26

O RING,15MM

670B2015

$1.25
