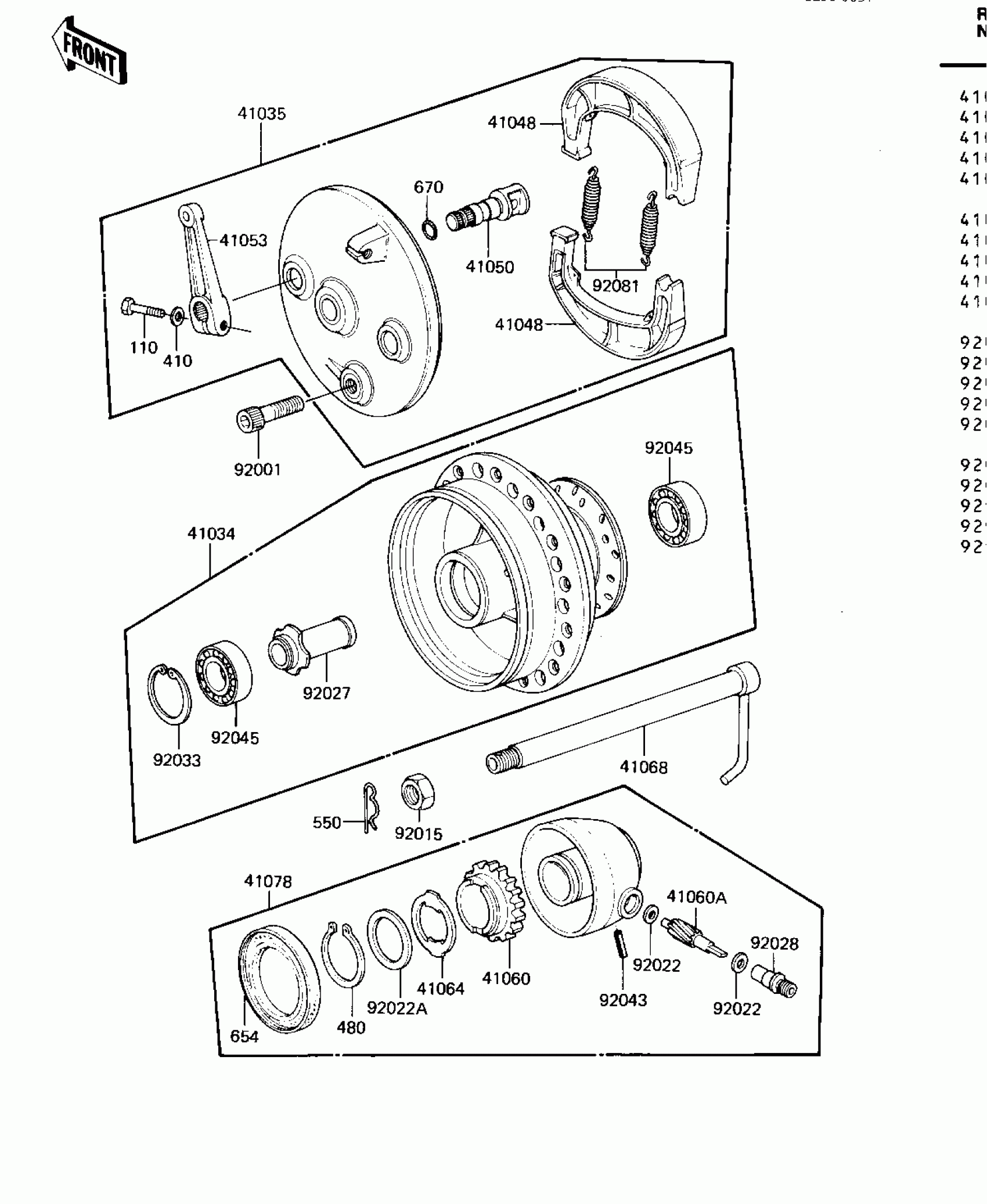

Kawasaki KDX250 FRONT HUB/BRAKE ('82 KDX250-B2) Diagram

Description

Price

41034

DRUM-ASSY,FR BRK

41034-4001

$264.12

41035

PANEL-ASY,FR BRK

41035-1072

$311.92

41048

SHOE-BRAKE

41048-1068

$24.30

41050

CAM SHAFT,BRAKE

41050-1002

Unavailable

41053

LEVER,FRONT BRAKE CAM

41053-1003

$62.32

41060

GEAR-METER SCREW

41059-027

Unavailable

41060A

GEAR-METER SCREW,8T

41060-015

Unavailable

41064

RECEIVER-SPEEDOMETER

41064-015

Unavailable

41068

AXLE,FRONT

41068-4001

$52.80

41078

CASE-ASSY-METER GEAR

41078-011

Unavailable

92001

BOLT,SOCKET,10X40

92001-4002

$4.25

92015

NUT,CASTLE,14MM

42045-020

$7.80

92022

WASHER,5.1X9X0.4

41063-001

$4.17

92022A

WASHER,24.5X32X0.8

41065-005

Unavailable

92027

COLLAR,FRONT BRAKE

92027-1034

$26.07

92028

BUSHING,SPEEDOMETER CABLE

41062-005

$18.66

92033

RING-SNAP,42MM

92033-1041

$4.88

92043

PIN,SPRING

41082-001

$3.53

92045

BEARING,FRONT DRUM

92045-033

Unavailable

92081

SPRING,BRAKE SHOE

42020-004

$6.75

110

BOLT-UPSET

112G0622

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

480

CIRCLIP-TYPE-C,24MM

480J2400

$4.98

550

PIN,COTTER

550D3230

Unavailable

654

OIL SEAL,#50659

654A506509

Unavailable

670

O RING,15MM

670B2015

$1.25
