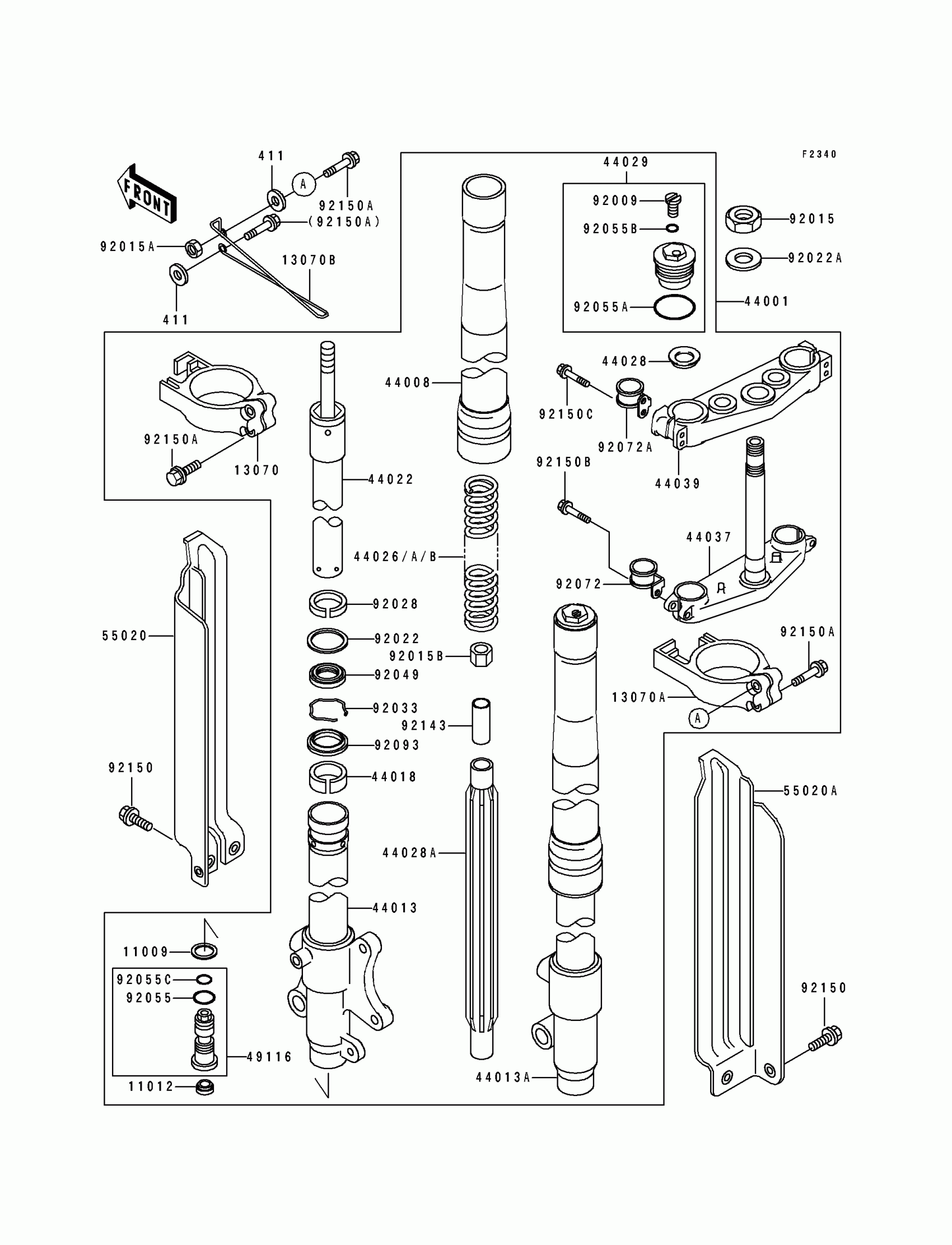

Kawasaki KDX250 Front Fork(KDX250-D1) Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1592

$4.88

11012

CAP,FORK CYLINDER

11012-1381

$5.32

13070

GUIDE,FORK,LH

13070-1222

Unavailable

13070A

GUIDE,FORK,RH

13070-1223

Unavailable

13070B

GUIDE,CABLE

13070-1226

Unavailable

44001

FORK-FRONT

44001-1789

$2,954.49

44008

PIPE-FORK OUTER

44008-1015

$524.19

44013

PIPE-FORK INNER,LH

44013-1350

$566.38

44013A

PIPE-FORK INNER,RH

44013-1351

$532.05

44018

PISTON-FORK,INNER PIPE

44018-1056

$26.23

44022

CYLINDER-FORK

44022-1268

$277.07

44026

SPRING-FRONT FORK,K=0.35

44026-1496

$88.18

44026A

SPRING-FRONT FORK,K=0.34

44026-1502

$88.18

44026B

SPRING-FRONT FORK,K=0.36

44026-1503

$88.18

44028

GUIDE-FORK SPRING

44028-1081

$11.59

44028A

GUIDE-FORK SPRING

44028-1084

$10.17

44029

SEAT-FORK SPRING

44029-1149

Unavailable

44037

HOLDER-FORK UNDER

44037-1290

Unavailable

44039

HOLDER-FORK UPPER

44039-1218

Unavailable

49116

VALVE-ASSY,FORK

49116-1096

$168.00

55020

GUARD,FORK,LH

55020-1363

Unavailable

55020A

GUARD,FORK,RH

55020-1364

Unavailable

92009

SCREW

92009-1568

$5.74

92015

NUT,STEERING STEM,22MM

92015-1653

$13.20

92015A

NUT,LOCK,FLANGED,5MM

92015-1752

$3.43

92015B

NUT

92015-1827

$22.66

92022

WASHER

92022-1299

$6.82

92022A

WASHER,STEERING STEM

92022-1873

$5.93

92028

BUSHING

92028-1581

$20.21

92033

RING-SNAP

92033-1077

$3.94

92049

SEAL-OIL

92049-1373

$26.48

92055

RING-O

92055-1156

$1.25

92055A

RING-O,FORK,AIR TUBE

92055-1333

$4.75

92055B

RING-O,2.8X6.6X1.9

92055-1441

$3.45

92055C

RING-O,FORK VALVE

92055-1502

$7.36

92072

BAND

92072-1267

$19.64

92072A

BAND

92072-1268

Unavailable

92093

SEAL,FORK OUTER TUBE

92093-1315

$14.71

92143

COLLAR,FORK

92143-1516

Unavailable

92150

BOLT,6X14

92150-1340

$4.02

92150A

BOLT,FLANGED,5X40

92150-1434

$3.65

92150B

BOLT,FLANGED,8X40

92150-1446

$12.12

92150C

BOLT,FLANGED,8X40

92150-1516

$11.21

411

WASHER-PLAIN,5MM

411B0500

Unavailable
